How to mount and dismount Network adapter with Integrated IO

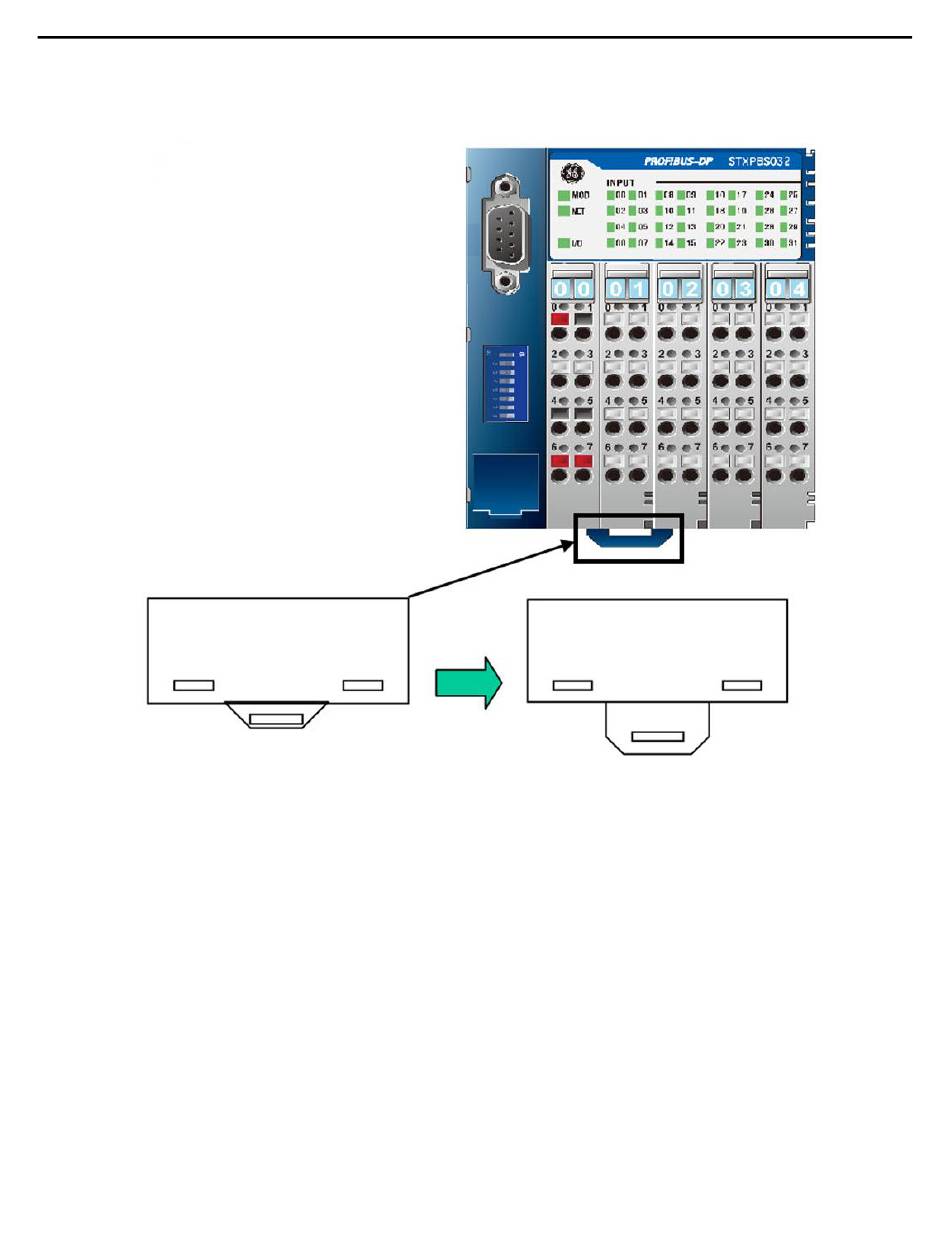

Figure 5: module mounting/dismounting instructions
Release the DIN rail locking clip by pulling clip downward with a small-bladed screwdriver. The
clip will click and lock into the open position. Install the module on the DIN rail firmly. Once
module is in place on the DIN rail, push the clip upward to secure the module on the DIN rail. To
remove, pull clip downward until the locking clip clicks and locks, the module can now be
removed from the DIN rail.
Note:
GFK-2746B PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Make sure that the locking clip is in the upward position to ensure the module is
properly grounded and secured to the DIN rail.
