3.2.9.2 Example of Output Process Image Map

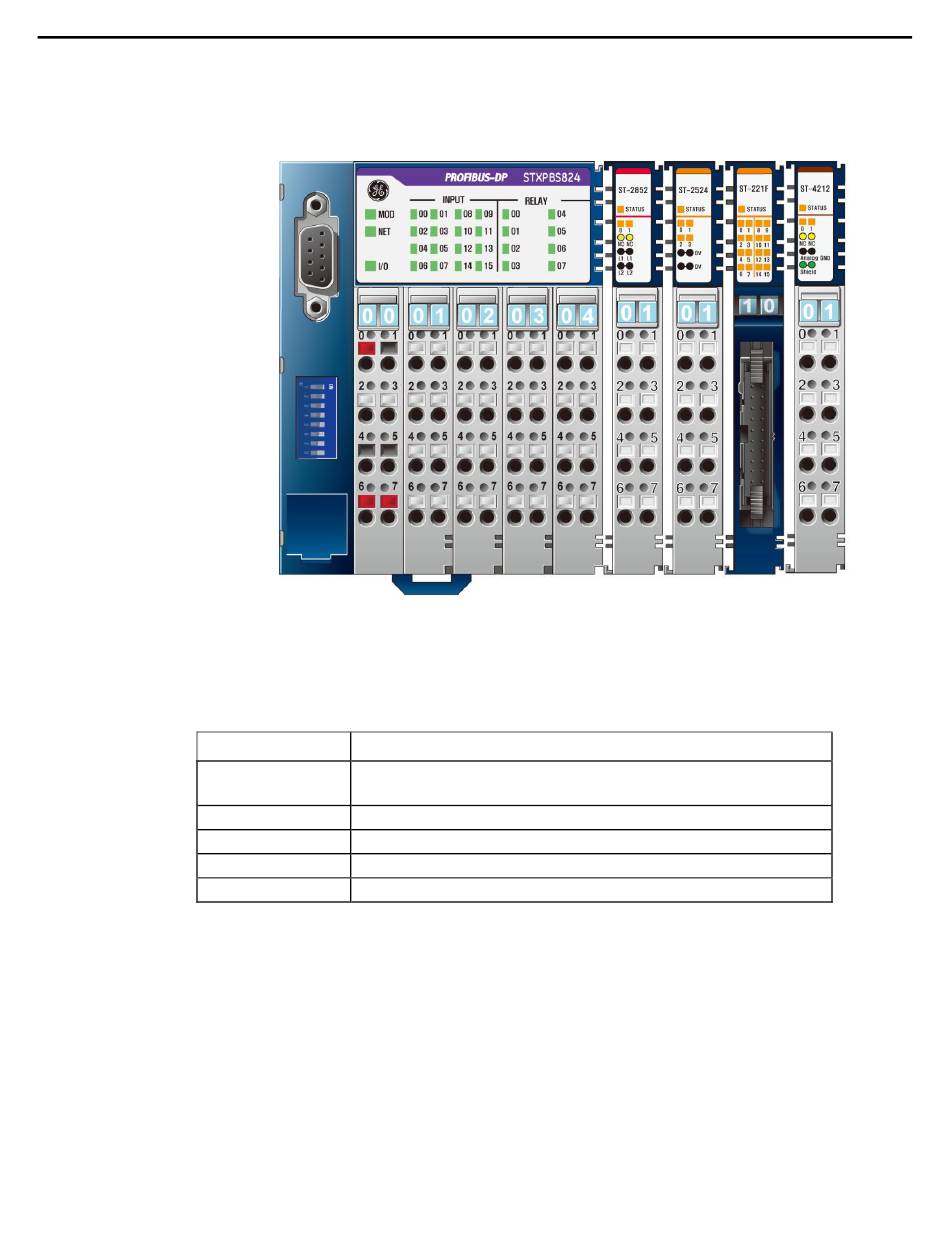

Figure 36: Slot Configuration
The following table lists the slot number and module description.
Table 30: Slot number and Module Description
Slot Address
#0
#1
#2
#3
#4
GFK-2746B PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Module Description
STXPBS032
32-discrete input (4 byte)
2-discrete Input (2 bit)
4-discrete Input (4 bit)
16-discrete output (2 byte)
2-analog output (2 word)
Chapter 3. PROFIBUS Network Adapters
57
