Chapter 3. PROFIBUS Network Adapters

3.2.1.4 STXPBS332 – Adapter with 32 point Positive Logic Output

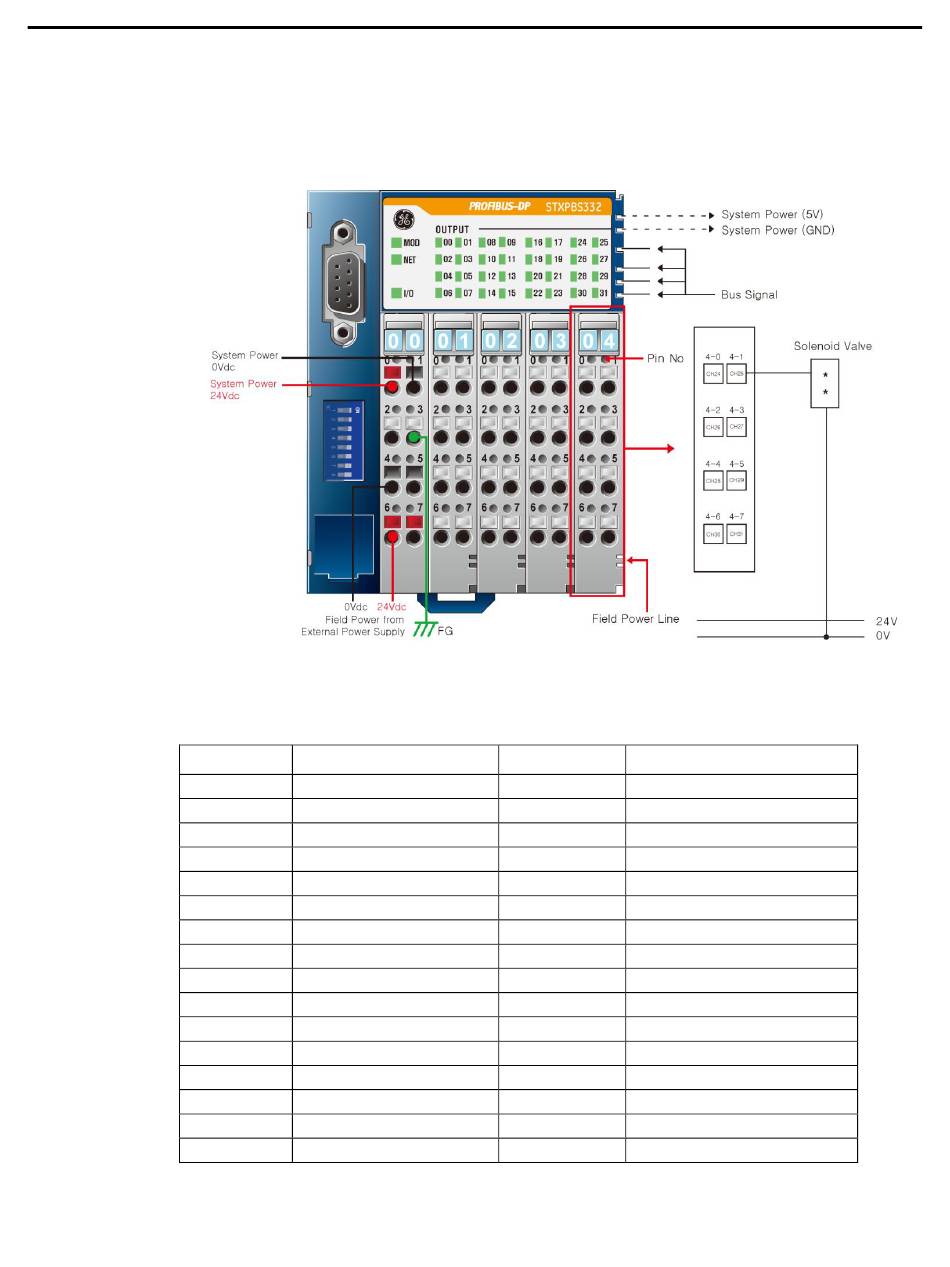

The following figure shows the interface diagram for STXPBS332.

Figure 13: PROFIBUS Network Adaptor Module: STXPBS332

Table 8: STXPBS332: Pin Description

Pin Number

01-0

01-1

01-2

01-3

01-4

01-5

01-6

01-7

02-0

02-1

02-2

02-3

02-4

02-5

02-6

02-7

Description

Output Channel 0

Output Channel 1

Output Channel 2

Output Channel 3

Output Channel 4

Output Channel 5

Output Channel 6

Output Channel 7

Output Channel 8

Output Channel 9

Output Channel 10

Output Channel 11

Output Channel 12

Output Channel 13

Output Channel 14

Output Channel 15

PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013

Pin Number

03- 0

Output Channel 16

03-1

Output Channel 17

03-2

Output Channel 18

03-3

Output Channel 19

03-4

Output Channel 20

03-5

Output Channel 21

03-6

Output Channel 22

03-7

Output Channel 23

04-0

Output Channel 24

04-1

Output Channel 25

04-2

Output Channel 26

04-3

Output Channel 27

04-4

Output Channel 28

04-5

Output Channel 29

04-6

Output Channel 30

04-7

Output Channel 31

Description

GFK-2746B
