Module Mounting

2.1

2.1.1

1. Press down the module lightly on the DIN Rail until it clicks & locks.

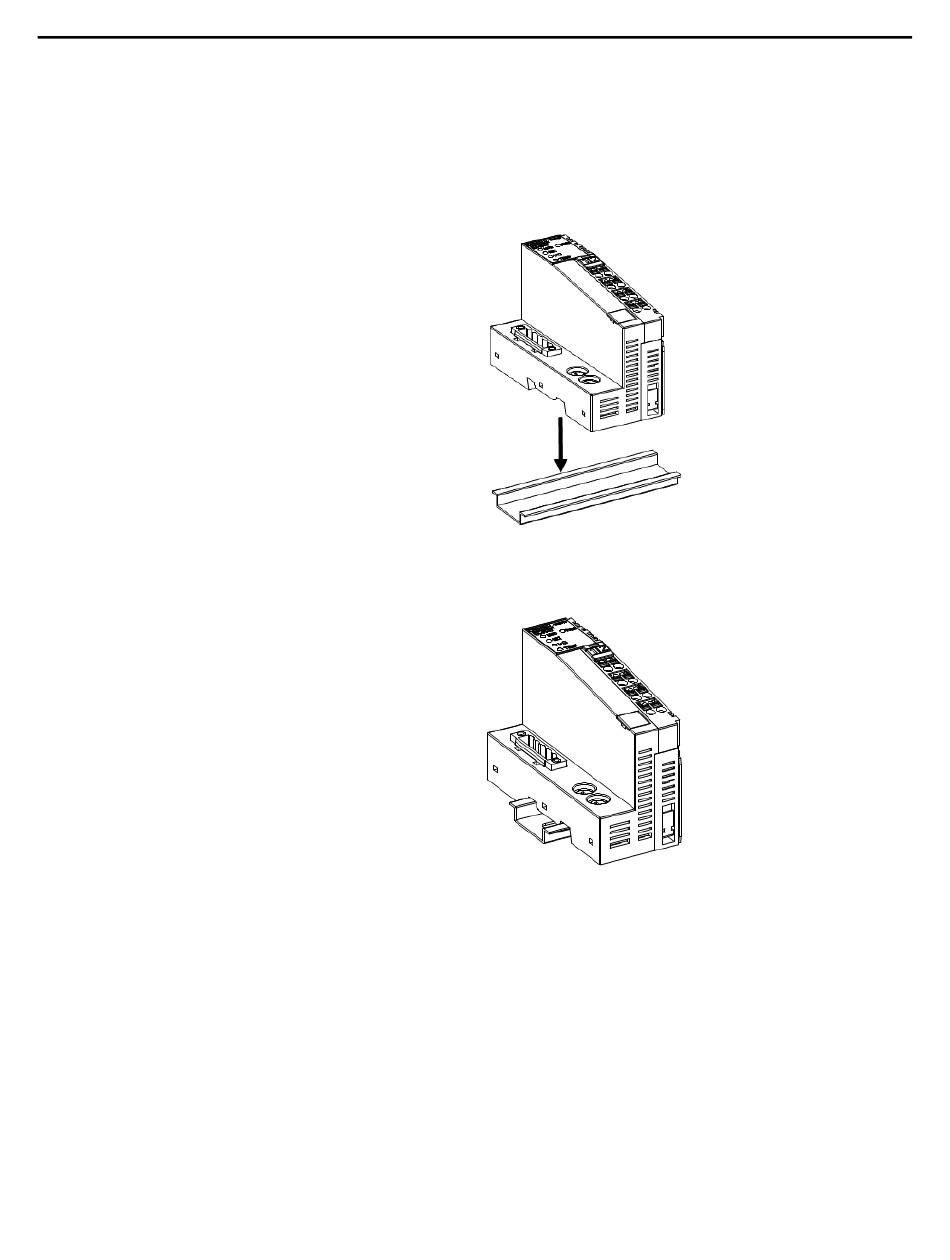

Figure 1: Pressing down the module lightly

2. . You can use the PUSH lock for DIN rail up as a second locking mechanism.

Figure 2: PUSH lock as a second locking mechanism

GFK-2746B

PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
