Chapter 3. PROFIBUS Network Adapters
3.2.1.12 STXPBS925 – Adapter with 16 Negative Logic in/8 relay out isolated

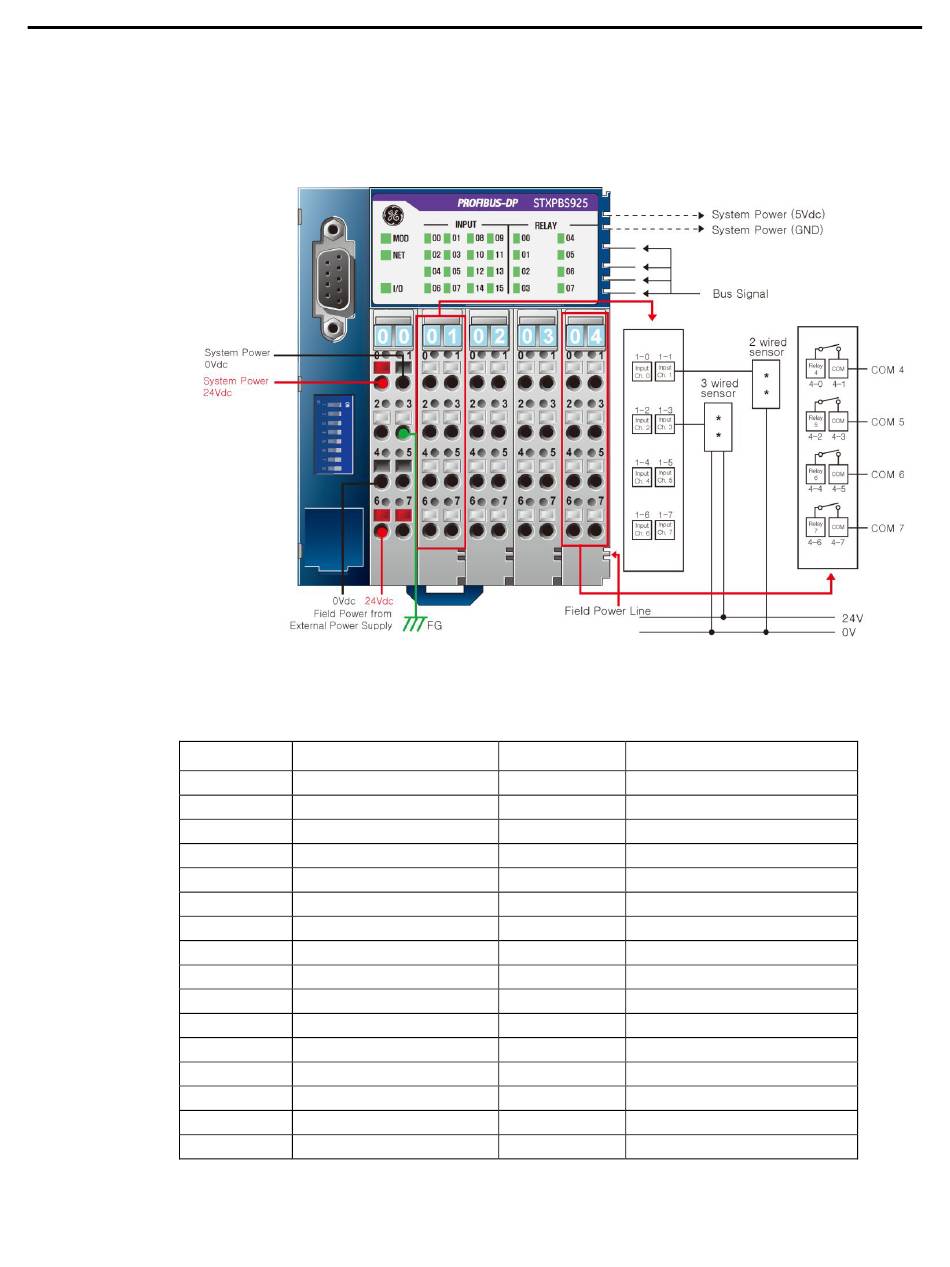

The following figure shows the interface diagram for STXPBS925.
Figure 21: PROFIBUS Network Adaptor Module: STXPBS925
Table 16: STXPBS925: Pin Description
Pin Number
01-0
01-1
01-2
01-3
01-4
01-5
01-6
01-7
02-0
02-1
02-2
02-3
02-4
02-5
02-6
02-7
34
Description
Input Channel 0
Input Channel 1
Input Channel 2
Input Channel 3
Input Channel 4
Input Channel 5
Input Channel 6
Input Channel 7
Input Channel 8
Input Channel 9
Input Channel 10
Input Channel 11
Input Channel 12
Input Channel 13
Input Channel 14
Input Channel 15
PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Pin Number
03- 0 Relay Output 0
03-1 COM 0
03-2 Relay Output 1
03-3 COM 1
03-4 Relay Output 2
03-5 COM 2
03-6 Relay Output 3
03-7 COM 3
04-0 Relay Output 4
04-1 COM 4
04-2 Relay Output 5
04-3 COM 5
04-4 Relay Output 6
04-5 COM 6
04-6 Relay Output 7
04-7 COM 7
Description
