3.2.1.5 STXPBS016 – Adapter with 16 relay output

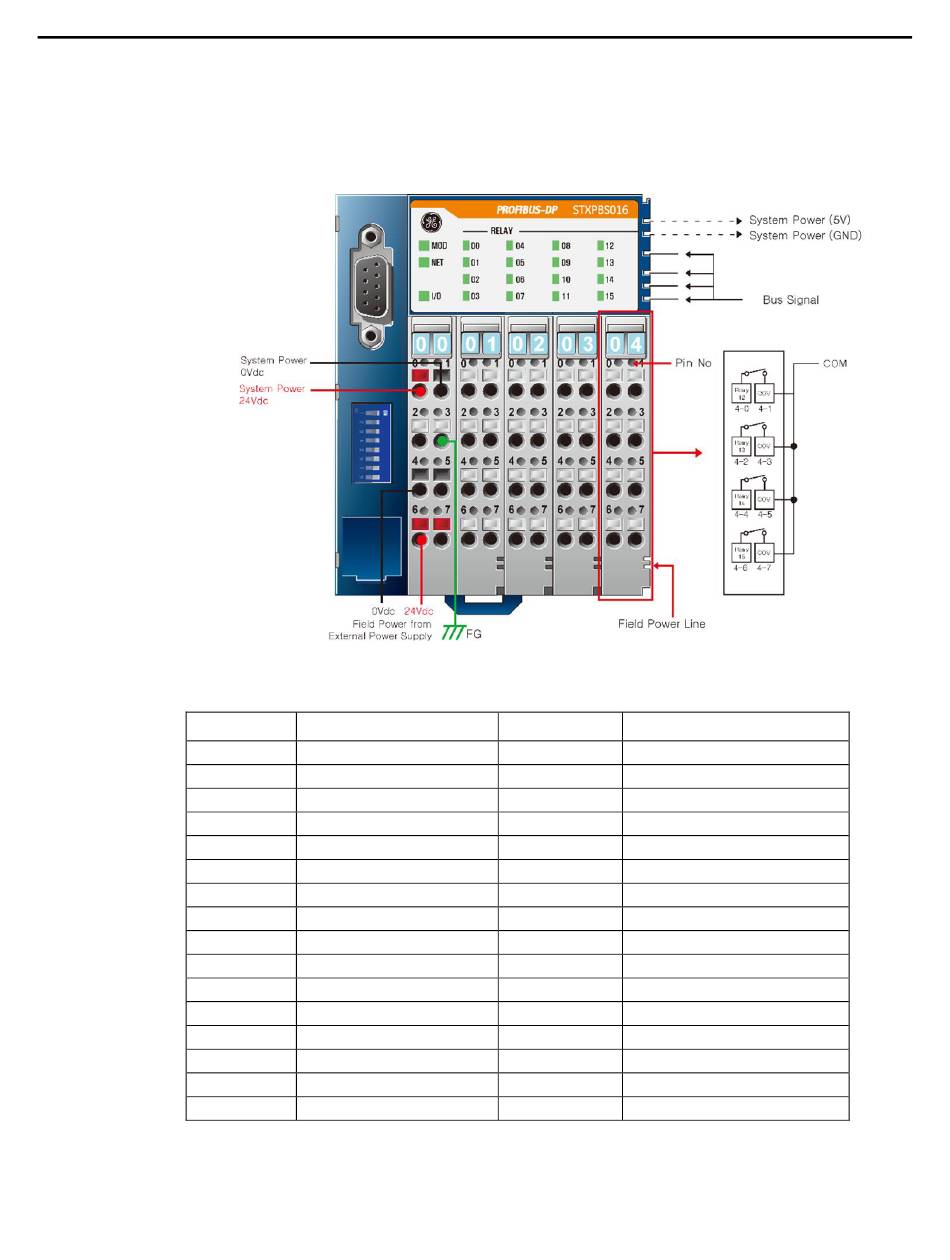

The following figure shows the interface diagram for STXPBS016.
Figure 14: PROFIBUS Network Adaptor Module: STXPBS016
Table 9: STXPBS016: Pin Description
Pin Number
01-0
01-1
01-2
01-3
01-4
01-5
01-6
01-7
02-0
02-1
02-2
02-3
02-4
02-5
02-6
2-7
GFK-2746B PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Description
Relay Output 0
COM 0
Relay Output 1
COM 0
Relay Output 2
COM 0
Relay Output 3
COM 0
Relay Output 4
COM 1
Relay Output 5
COM 1
Relay Output 6
COM 1
Relay Output 7
COM 1
Chapter 3. PROFIBUS Network Adapters
Pin Number
03- 0 Relay Output 8
03-1 COM 2
03-2 Relay Output 9
03-3 COM 2
03-4 Relay Output 10
03-5 COM 2
03-6 Relay Output 11
03-7 COM 2
04-0 Relay Output 12
04-1 COM 3
04-2 Relay Output 13
04-3 COM 3
04-4 Relay Output 14
04-5 COM 3
04-6 Relay Output 15
4-7 COM 3
Description
