3.2.1.3 STXPBS232 – Adapter with 32 point Negative Logic Output

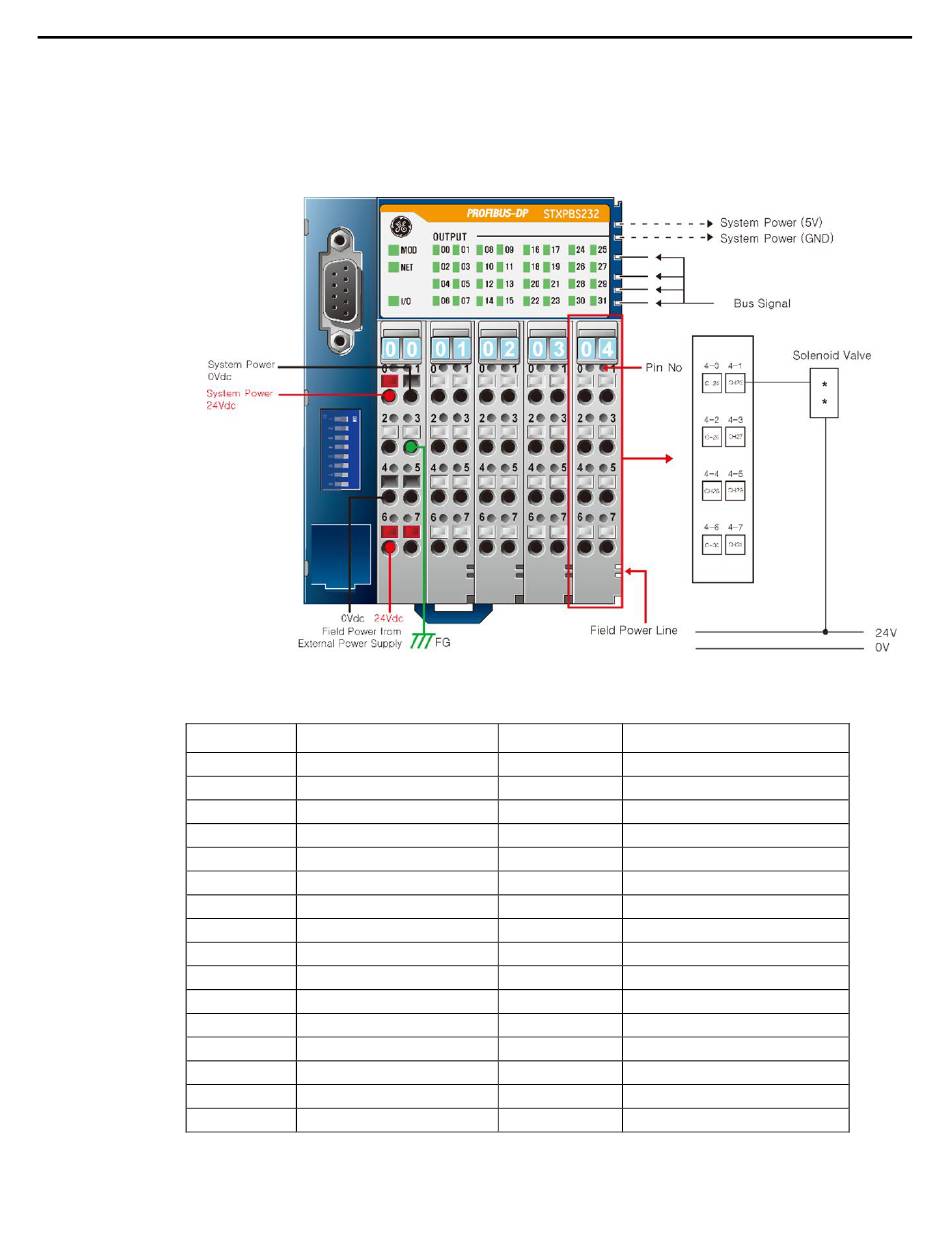

The following figure shows the interface diagram for STXPBS232.
Figure 12: PROFIBUS Network Adaptor Module: STXPBS232
Table 7: STXPBS232: Pin Description
Pin Number
01-0
01-1
01-2
01-3
01-4
01-5
01-6
01-7
02-0
02-1
02-2
02-3
02-4
02-5
02-6
02-7
GFK-2746B
PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Description
Output Channel 0
Output Channel 1
Output Channel 2
Output Channel 3
Output Channel 4
Output Channel 5
Output Channel 6
Output Channel 7
Output Channel 8
Output Channel 9
Output Channel 10
Output Channel 11
Output Channel 12
Output Channel 13
Output Channel 14
Output Channel 15
Chapter 3. PROFIBUS Network Adapters
Pin Number
03- 0
Output Channel 16
03-1
Output Channel 17
03-2
Output Channel 18
03-3
Output Channel 19
03-4
Output Channel 20
03-5
Output Channel 21
03-6
Output Channel 22
03-7
Output Channel 23
04-0
Output Channel 24
04-1
Output Channel 25
04-2
Output Channel 26
04-3
Output Channel 27
04-4
Output Channel 28
04-5
Output Channel 29
04-6
Output Channel 30
04-7
Output Channel 31
Description
25
