Specifications

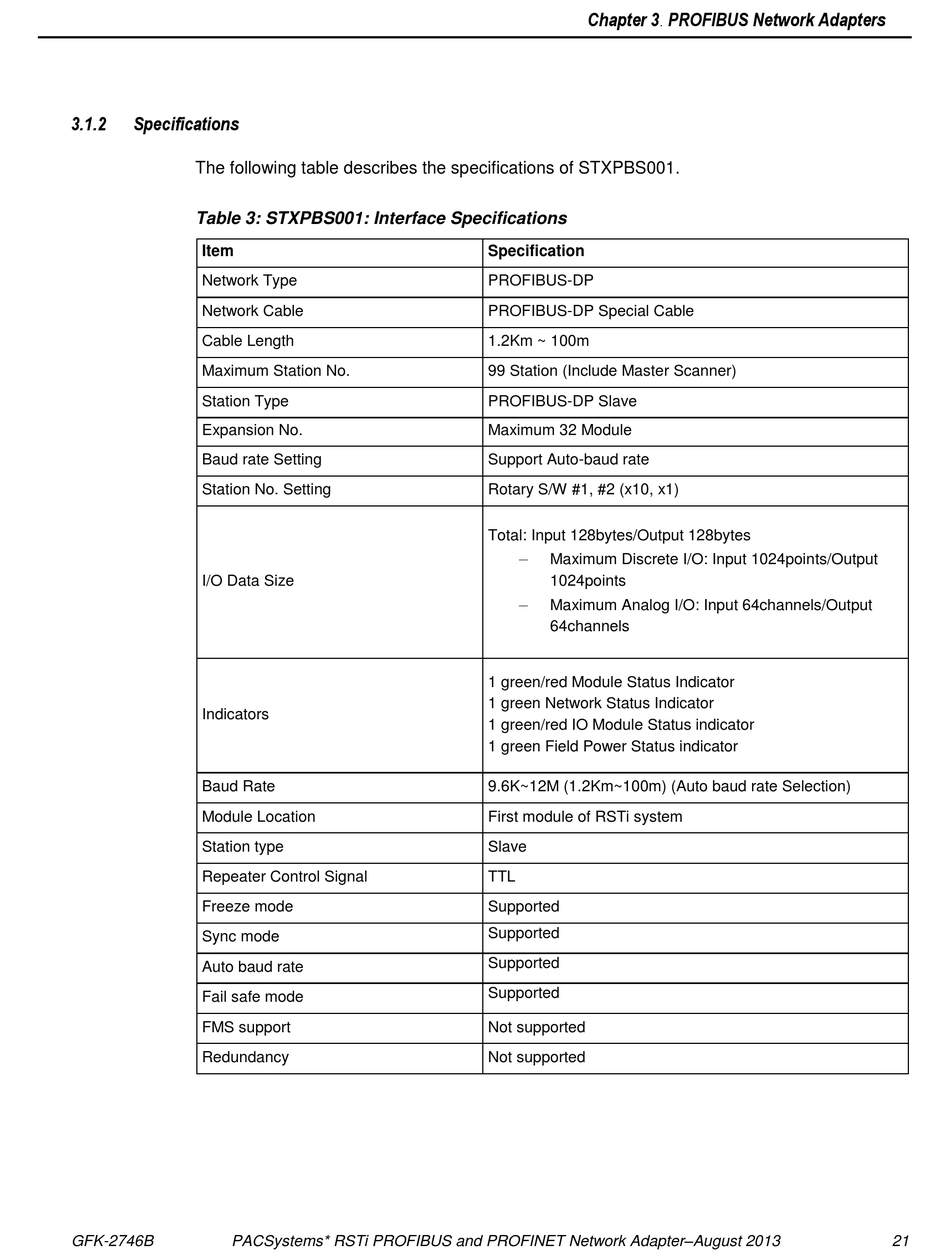

The following table describes the specifications of STXPBS001.
Table 3: STXPBS001: Interface Specifications
Item
Network Type
Network Cable
Cable Length
Maximum Station No.
Station Type
Expansion No.
Baud rate Setting
Station No. Setting
I/O Data Size
Indicators
Baud Rate
Module Location
Station type
Repeater Control Signal
Freeze mode
Sync mode
Auto baud rate
Fail safe mode
FMS support
Redundancy
GFK-2746B PACSystems* RSTi PROFIBUS and PROFINET Network Adapter–August 2013
Chapter 3. PROFIBUS Network Adapters
Specification
PROFIBUS-DP
PROFIBUS-DP Special Cable
1.2Km ~ 100m
99 Station (Include Master Scanner)
PROFIBUS-DP Slave
Maximum 32 Module
Support Auto-baud rate
Rotary S/W #1, #2 (x10, x1)
Total: Input 128bytes/Output 128bytes

Maximum Discrete I/O: Input 1024points/Output
1024points

Maximum Analog I/O: Input 64channels/Output
64channels
1 green/red Module Status Indicator
1 green Network Status Indicator
1 green/red IO Module Status indicator
1 green Field Power Status indicator
9.6K~12M (1.2Km~100m) (Auto baud rate Selection)
First module of RSTi system
Slave
TTL
Supported
Supported
Supported
Supported
Not supported
Not supported
