3

INSTALLATION

3.1

3-PH SNMP/WEB PLUG-IN ADAPTER (P/N 1018959)

3.1.1 Setting the logical address

The logical address is configured through dip-switch SW1 in the following way:
SNMP Card 0
(1)
SNMP Card 1
SNMP Card 2
SNMP Card 3
(1) Default setup
NOTE:
The logical address is a critical setting when more than one SNMP Card is installed in the same
UPS system.
Modifications reserved
ISG_CNT_SNM_BAS_CRD_1GB_V012.doc
NOTE !
Strictly observe the 'UPS Safety Rules'.
Read carefully the UPS 'Operating Manual & Installation
Guide' before installing or operating the equipment.
If any problems are encountered with the installation
procedure here described, please contact the nearest
Service Centre before proceeding.
NOTE !
SitePro customers only
SitePro units produced before 2003 require an additional
protective ground connection – refer to APPENDIX A.
Logical Address
84
(54h)
85
(55h)
86
(56h)
87
(57h)
Dip 1
ON
ON
OFF
OFF

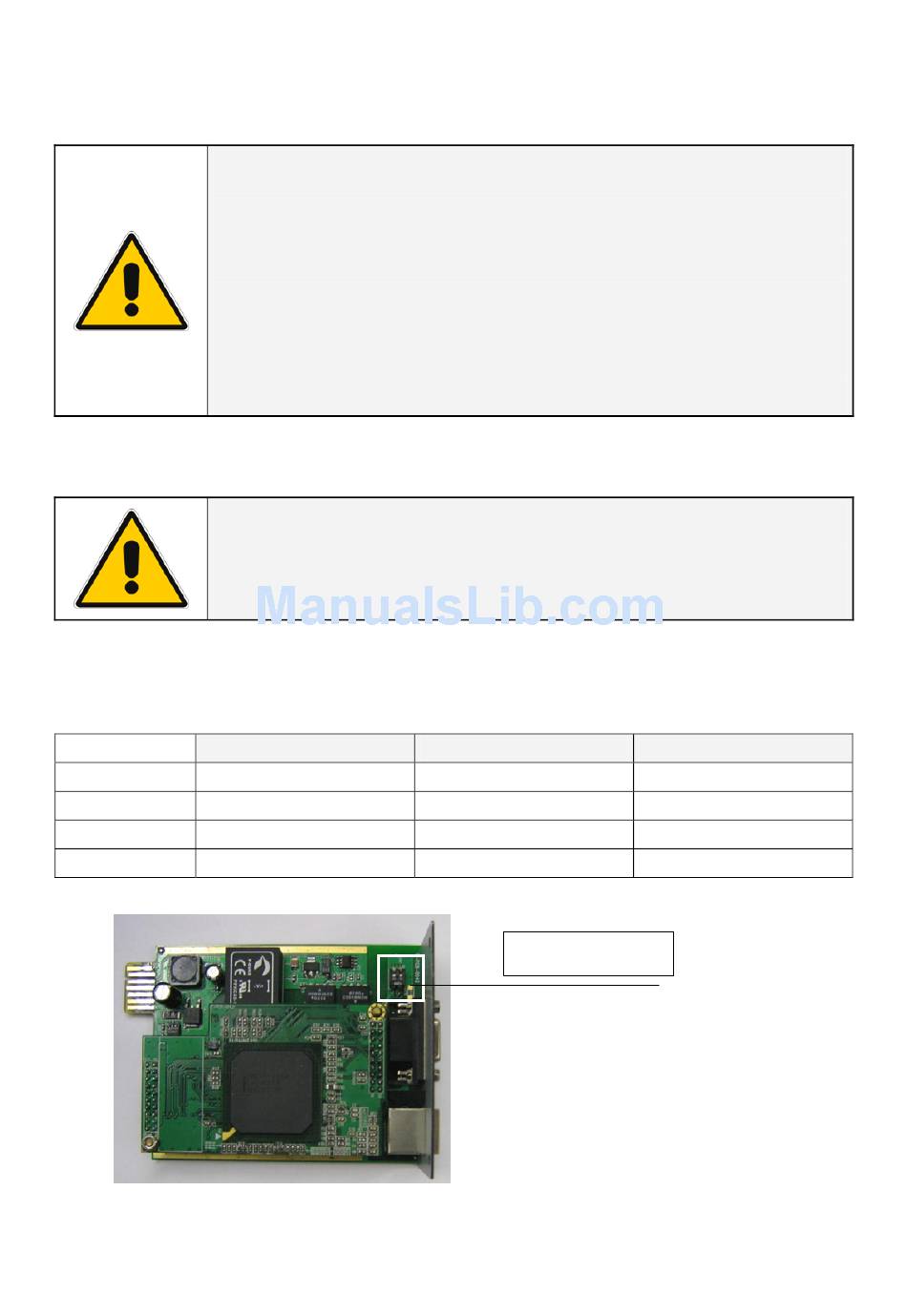

Dip-switch SW1
Dip 2
ON
OFF
ON
OFF
Page 14/24
Installation Guide SNMP/Web Adapter
