Press DIAGS MENU to return to the Diagnostics menu. Press MAIN MENU to return

to the main menu.

•

Signal Levels

The Signal Levels diagnostic prompts to place a sample at the measurement port.

Normally this will be the White Tile, but other instructions may be provided by

HunterLab's Service Support staff. Place the White Tile at the port and press GO.

The sample and monitor channels are plotted on a graph for examination by

HunterLab's Service Support staff.

Press READ to read again. Press DIAGS MENU to return to the Diagnostics menu.

Press MAIN MENU to return to the main menu.

•



The DIAGNOSTICS MENU contains a fourth function named SELF TEST. When this

function is selected, communications tests between the ColorFlex EZ's subsystems

are run. If successful, the versions of the firmware present would be displayed. Also

shown is the value of the checksum of the instrument's calibration data as four

hexadecimal digits.

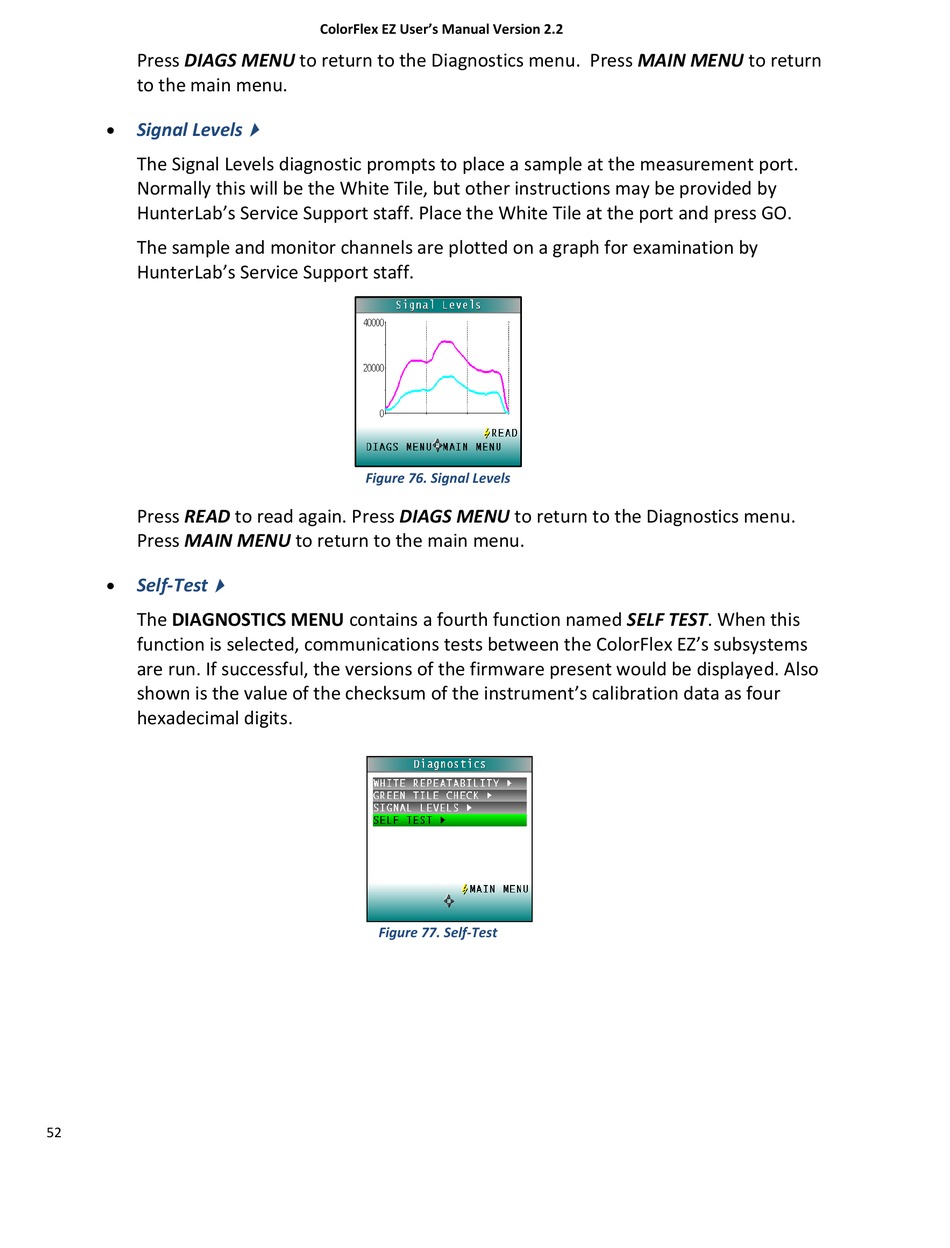

ColorFlex EZ User's Manual Version 2.2



Figure 76. Signal Levels

Figure 77. Self-Test
