ColorFlex EZ User's Manual Version 2.2

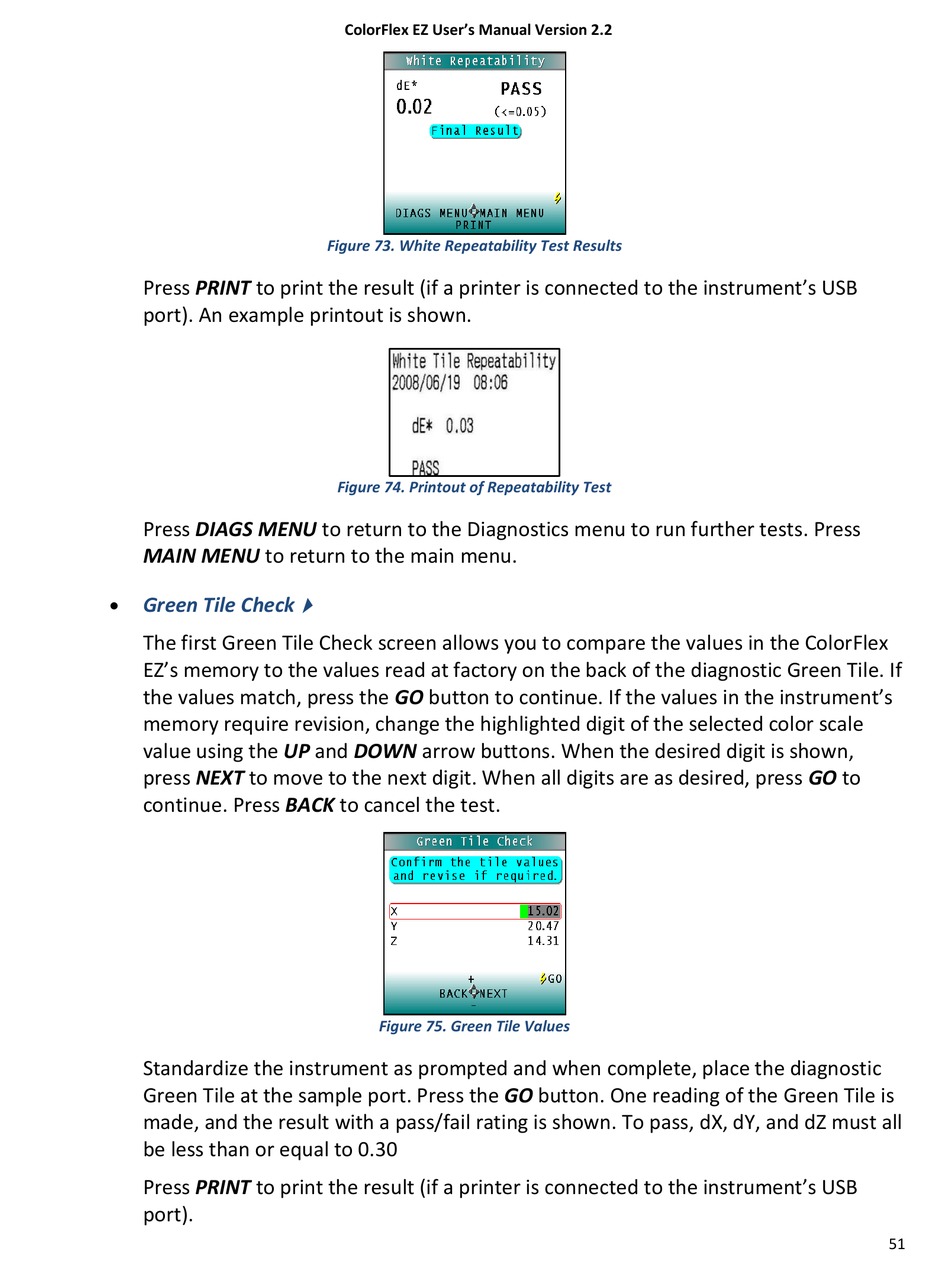

Figure 73. White Repeatability Test Results
Press PRINT to print the result (if a printer is connected to the instrument's USB
port). An example printout is shown.
Figure 74. Printout of Repeatability Test
Press DIAGS MENU to return to the Diagnostics menu to run further tests. Press
MAIN MENU to return to the main menu.
•


Green Tile Check

The first Green Tile Check screen allows you to compare the values in the ColorFlex
EZ's memory to the values read at factory on the back of the diagnostic Green Tile. If
the values match, press the GO button to continue. If the values in the instrument's
memory require revision, change the highlighted digit of the selected color scale
value using the UP and DOWN arrow buttons. When the desired digit is shown,
press NEXT to move to the next digit. When all digits are as desired, press GO to
continue. Press BACK to cancel the test.
Figure 75. Green Tile Values
Standardize the instrument as prompted and when complete, place the diagnostic
Green Tile at the sample port. Press the GO button. One reading of the Green Tile is
made, and the result with a pass/fail rating is shown. To pass, dX, dY, and dZ must all
be less than or equal to 0.30
Press PRINT to print the result (if a printer is connected to the instrument's USB
port).
51
