Then, change the highlighted digit of the selected color scale value to match the
corresponding digit of the known values from the reference instrument using the UP
and DOWN arrow buttons. When the desired digit is shown, press NEXT to move to
the next digit. When all digits match the corresponding digit from the reference
instrument's reading, press DONE to return to the product setup configuration
screen.
The offsets between the measured and entered values for the hitch standard are
saved with the standard and applied to all samples read in that setup.
As a PQ Performance Qualification step, measure the physical hitch standard as a
sample and verify that the read values closely match the reference values.


Tolerances

When Tolerances is highlighted, press the RIGHT arrow button to move to the Tolerances
configuration screen. Select the color scale and indices for the tolerances.
Change the highlighted digit of the selected color scale tolerance value using the UP and DOWN
arrow buttons. When the desired digit is shown, press NEXT to move to the next digit. When all
digits are set as desired, press DONE to return to the product setup configuration screen.

AutoSearch

Select YES to include this product setup when using the automatic standard search feature. This
matches a product setup (based on the closest standard's color values) to a sample reading.
Only the setups where AUTOSEARCH is enabled (YES) will be included in the automatic search.
28
ColorFlex EZ User's Manual Version 2.2

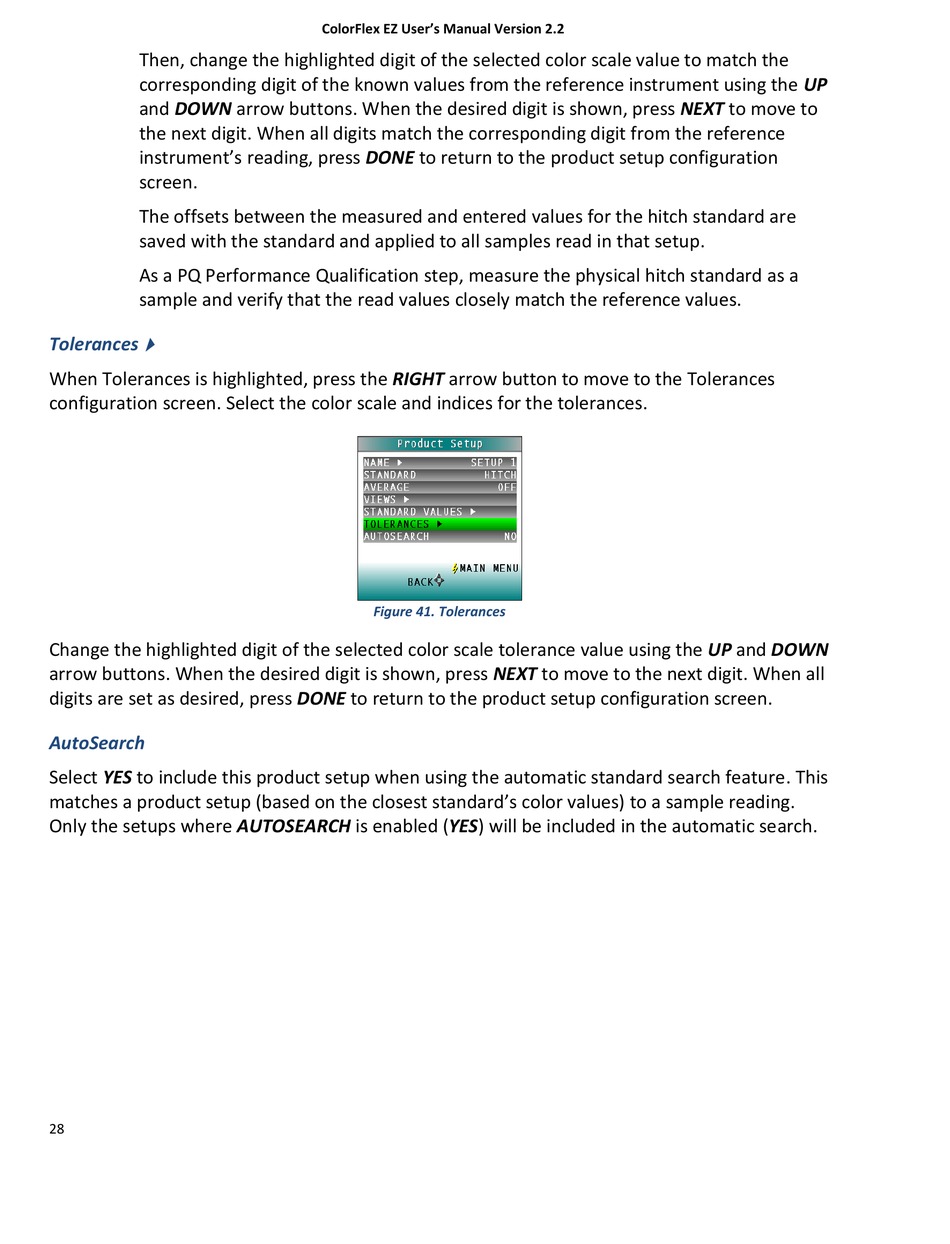

Figure 41. Tolerances
