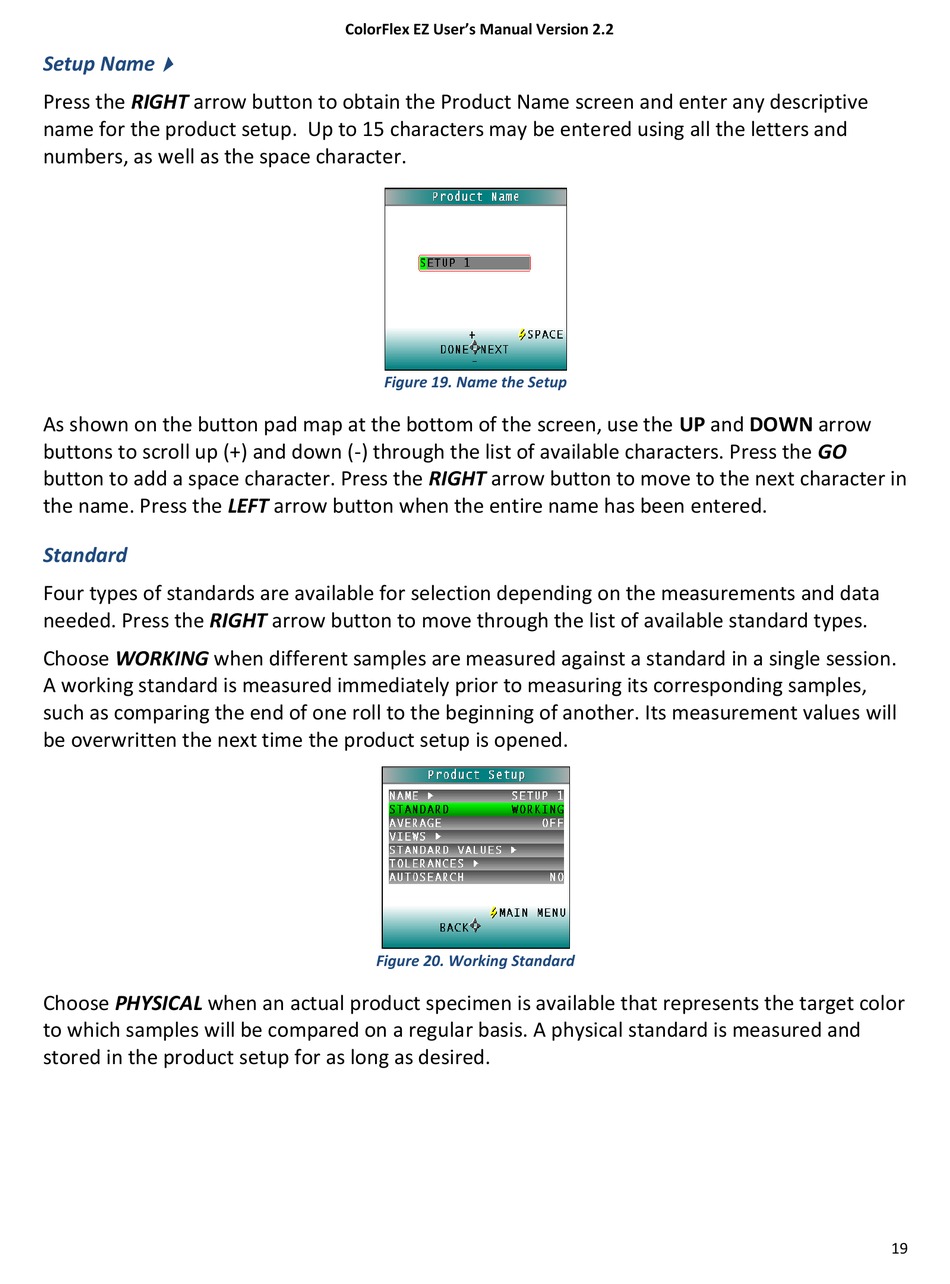

ColorFlex EZ User's Manual Version 2.2


Setup Name

Press the RIGHT arrow button to obtain the Product Name screen and enter any descriptive
name for the product setup. Up to 15 characters may be entered using all the letters and
numbers, as well as the space character.
Figure 19. Name the Setup
As shown on the button pad map at the bottom of the screen, use the UP and DOWN arrow
buttons to scroll up (+) and down (-) through the list of available characters. Press the GO
button to add a space character. Press the RIGHT arrow button to move to the next character in
the name. Press the LEFT arrow button when the entire name has been entered.

Standard

Four types of standards are available for selection depending on the measurements and data
needed. Press the RIGHT arrow button to move through the list of available standard types.
Choose WORKING when different samples are measured against a standard in a single session.
A working standard is measured immediately prior to measuring its corresponding samples,
such as comparing the end of one roll to the beginning of another. Its measurement values will
be overwritten the next time the product setup is opened.
Figure 20. Working Standard
Choose PHYSICAL when an actual product specimen is available that represents the target color
to which samples will be compared on a regular basis. A physical standard is measured and
stored in the product setup for as long as desired.
19
