ColorFlex EZ User's Manual Version 2.2

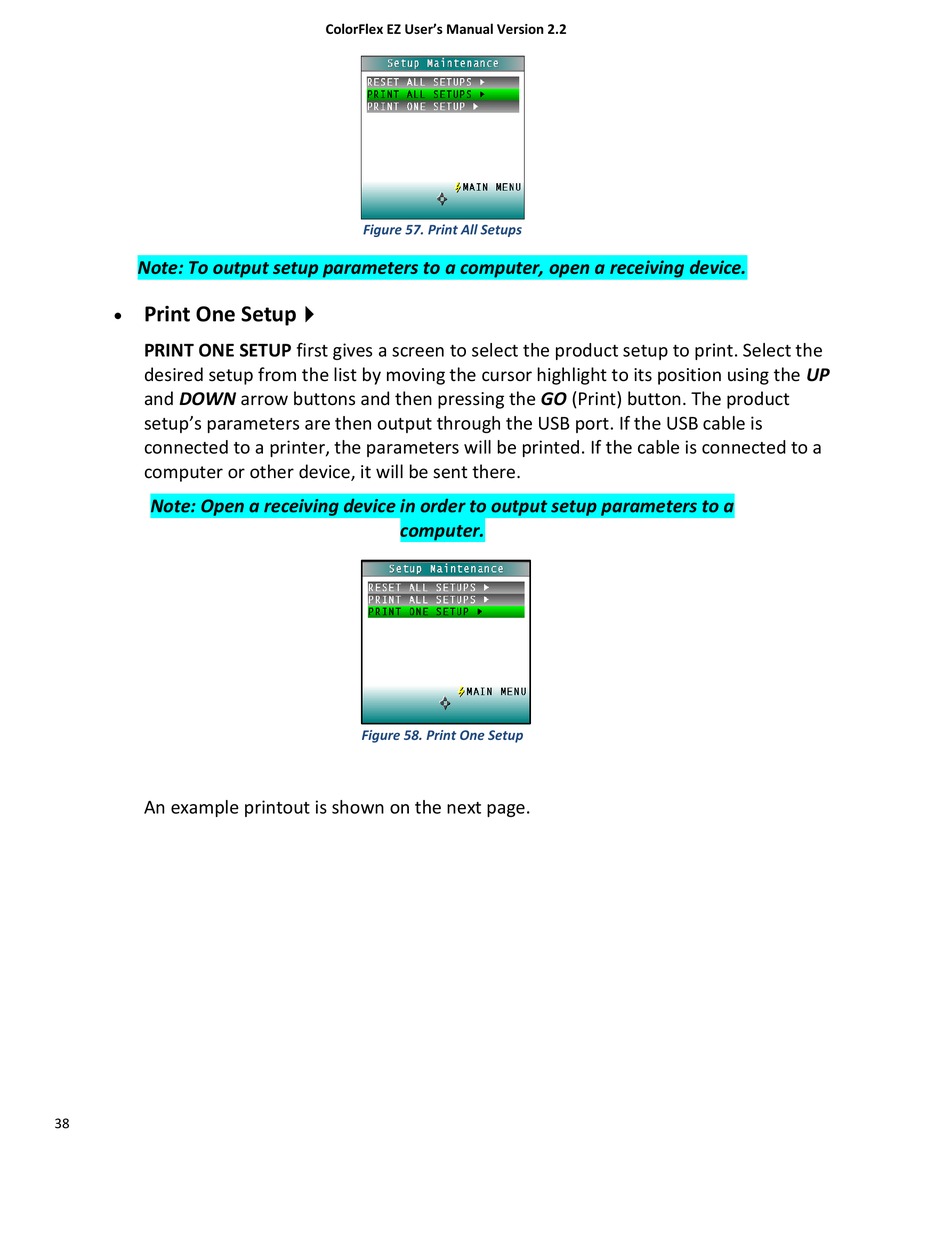

Figure 57. Print All Setups
Note: To output setup parameters to a computer, open a receiving device.
•
Print One Setup
PRINT ONE SETUP first gives a screen to select the product setup to print. Select the
desired setup from the list by moving the cursor highlight to its position using the UP
and DOWN arrow buttons and then pressing the GO (Print) button. The product
setup's parameters are then output through the USB port. If the USB cable is
connected to a printer, the parameters will be printed. If the cable is connected to a
computer or other device, it will be sent there.
Note: Open a receiving device in order to output setup parameters to a
computer.
Figure 58. Print One Setup
An example printout is shown on the next page.
38
