RS-Ruby Plus User Manual
3. In the pop-up "Sensor Configuration" dialog, add and select the correct RS-Ruby Plus
configuration file and click the OK button.
4. Click the Play button to play or pause the data. Use the Scrub sliding tool to slide back and
forth to select frames at different positions in the data. This tool and the Record button are in the
same toolbar (Figure C-9)

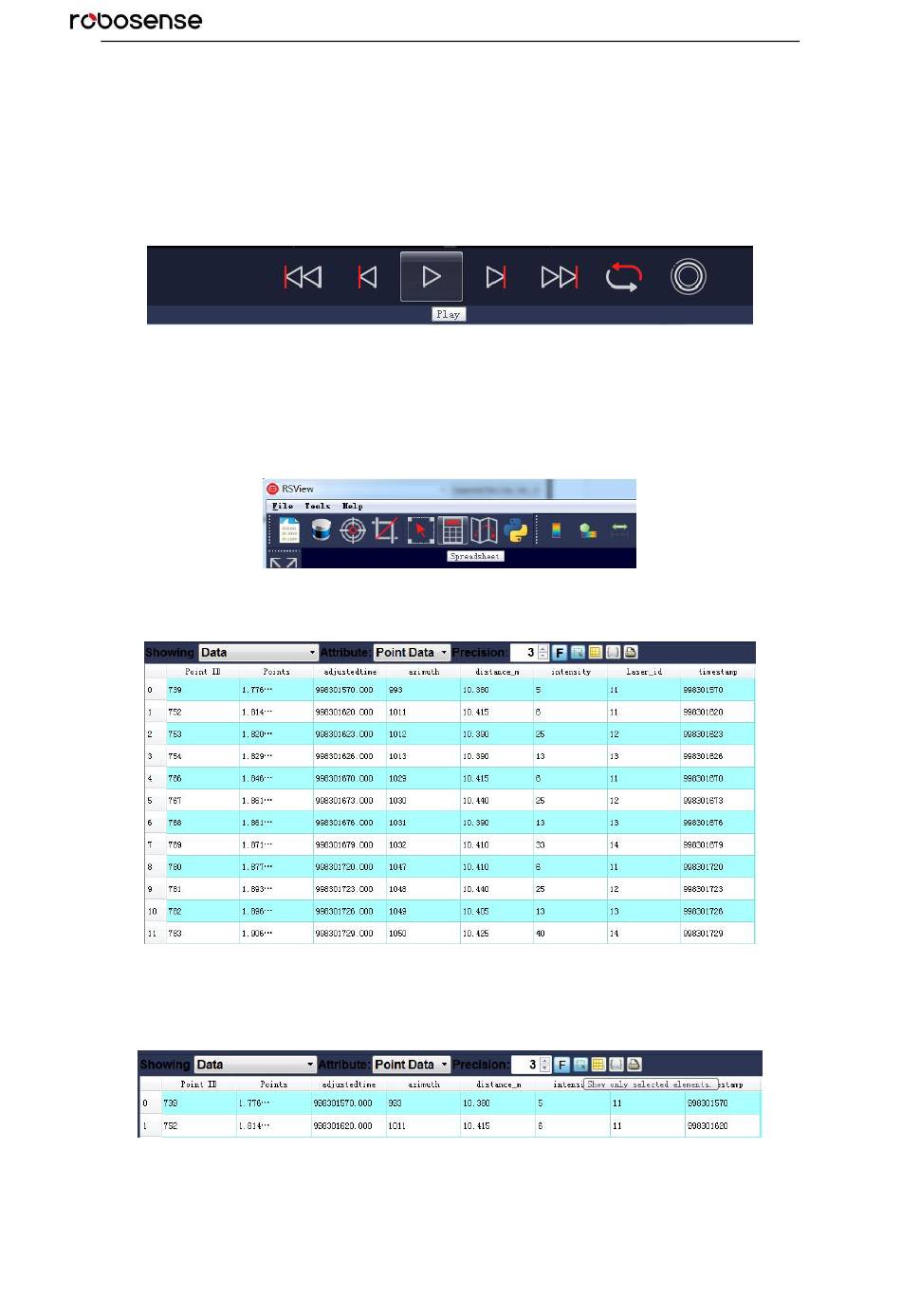

Figure C-9 RSView Play Button and Scrub Tool
5. 为 In order to get a more detailed analysis, select a frame of data that you are interested in
and click the Spreadsheet button (Figure C-10). A sidebar data table will be displayed on the right
side of the screen, which contains details of all the data of this frame.
Figure C-10 RSView Spreadsheet Tool
6. You can adjust the width of each column of the table, or sort to get a better view.
Figure C-11 RSView Spreadsheet Display
7. Click Show only selected elements in Spreadsheet to get the data corresponding to the
selected points (Figure C-12).
Figure C-12 RSView Show only selected elements Tool
8. Click the Select All Points tool, which turns your mouse into a data point selection tool (Figure
C-13).
