Note：
Red Box：Header ID
Yellow Box： Second Bits
Blue Box：Microsecond Bits
The timestamps are divided into second bits and microsecond bits.The second bits shown in Figure 4-5 is

0x0000623d93e6 (1648202726); the microsecond bits is 0x00015ad5 (88789);
The seconds part is a UTC timestamp, represents the second increment count from 0:00 on January 1, 1970

(London time) to the current time. Figure 4-5 indicates London time 2022-03-25 10:05:26；
The maximum value of the microsecond part is 0xF423F (999999), its maximum value plus 1 after the

microsecond back to zero and the second into 1. Figure 4-5 shows 88,789 microseconds;
If the system library <time.h>,time.gmtime (&t) function Included, you can convert the timestamp to

London time.

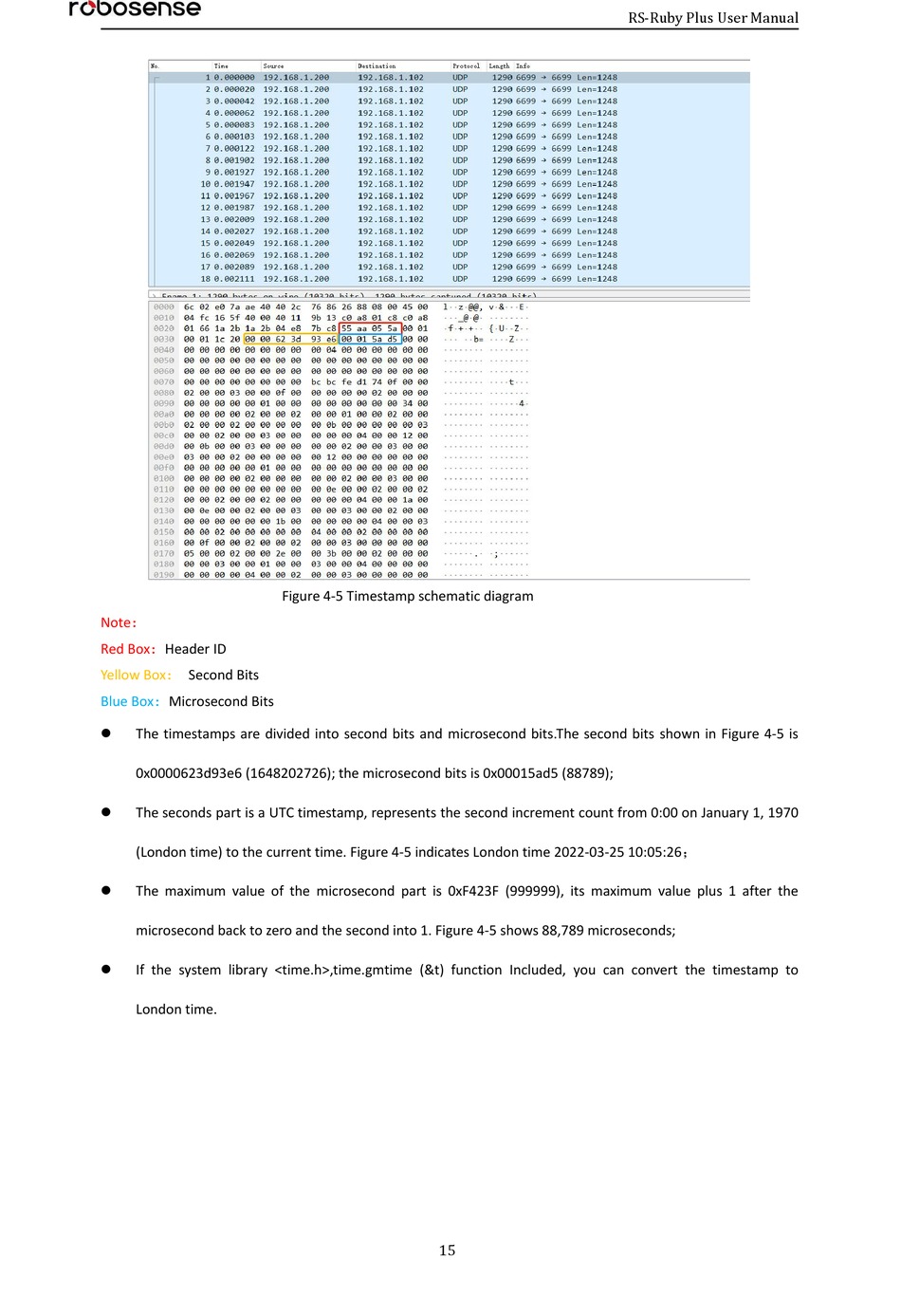

Figure 4-5 Timestamp schematic diagram
