6. RSView begins displaying the sensor data stream (Figure C-4). The stream can be paused by
pressing the Play button, pressing again, the stream resumes.
C.5 Capture Streaming Sensor Data to PCAP File
1. Click the Record button when streaming (Figure C-5).
2. In the "Choose Output File" dialog that pops up, set the save path and file name, and then
click the Save (S) button (Figure C-6). RSView will start to write the packet file into the target pcap
file. (Note: RS-Ruby Plus will generate huge volume of data. As the recording time gets longer, the
target pcap file will become larger. Therefore, it is better to save the recorded file to the HDD or
SSD instead of a slow subsystem such as a USB drive or network drive.)

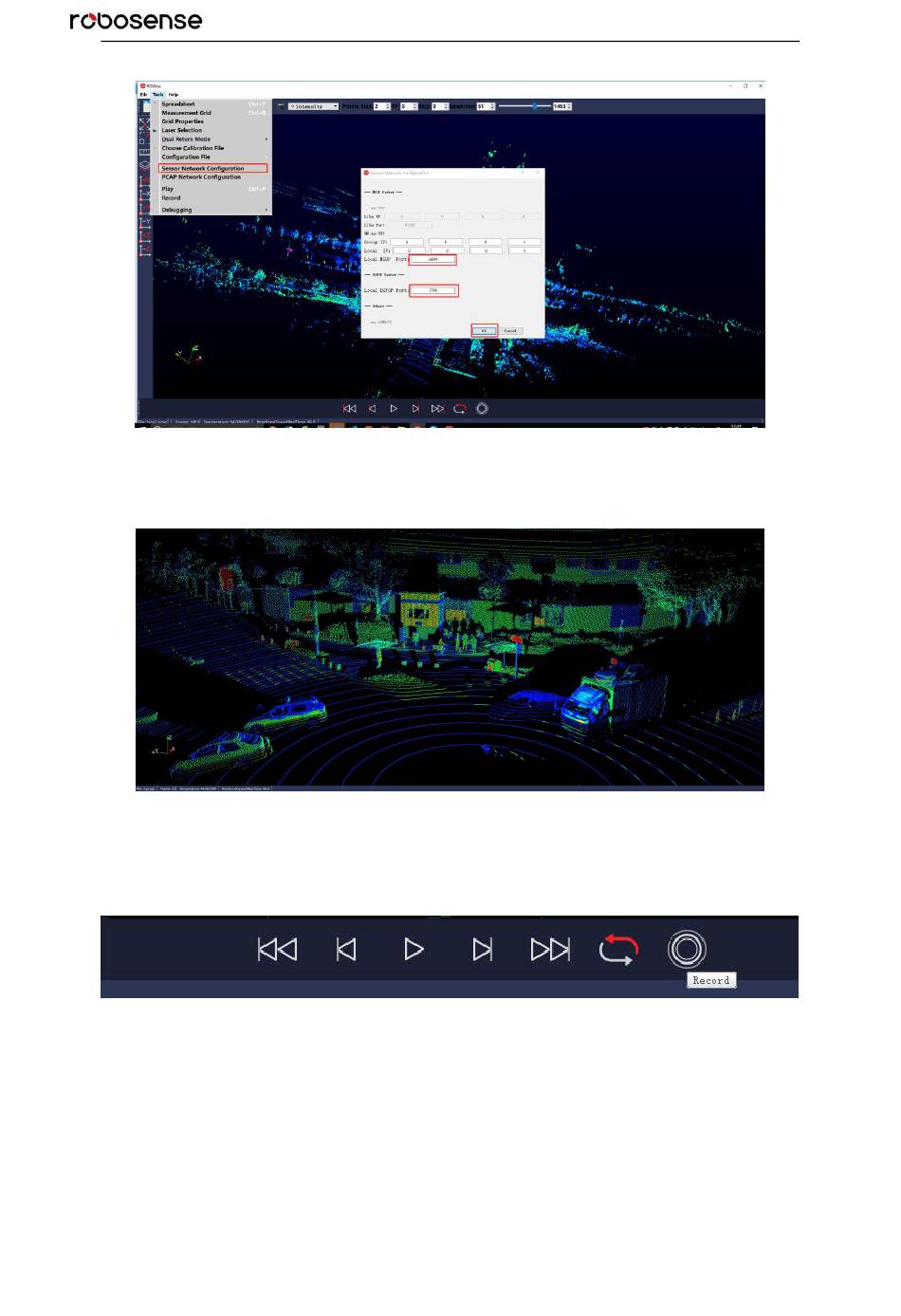

Figure C-3 Sensor Network Configuration
Figure C-4 Sensor Stream Data Display in RSView
Figure C-5 R RSView Record Button.
