10.Start-up Times: users can learn the total number of start-up times of the LiDAR up to date,
each power circle counts 1 star-up；
11.Elapsed time Total TO: users can view the total operating time of the LiDAR and the total
operating time under different temperature range respectively.
Note：
1. The diagnostic screen is refreshed every second.
2. If the voltage/current box turns red, please check whether the LiDAR is currently in Standby mode, if not, check
whether the LiDAR is working normally;
3. The number of start-up times is refreshed after 1 minute after the LiDAR is circle powered again, and the total
running time is 1min once within 10min, and 30min once after 10min.
A.4 System Screen
Click the System button on the front page of the Web Interface, you will see the System Screen,
where you can update. The operation is as shown below:
1.Prepare the Top Board firmware that is going to be used for the update and click the Choose
File button.

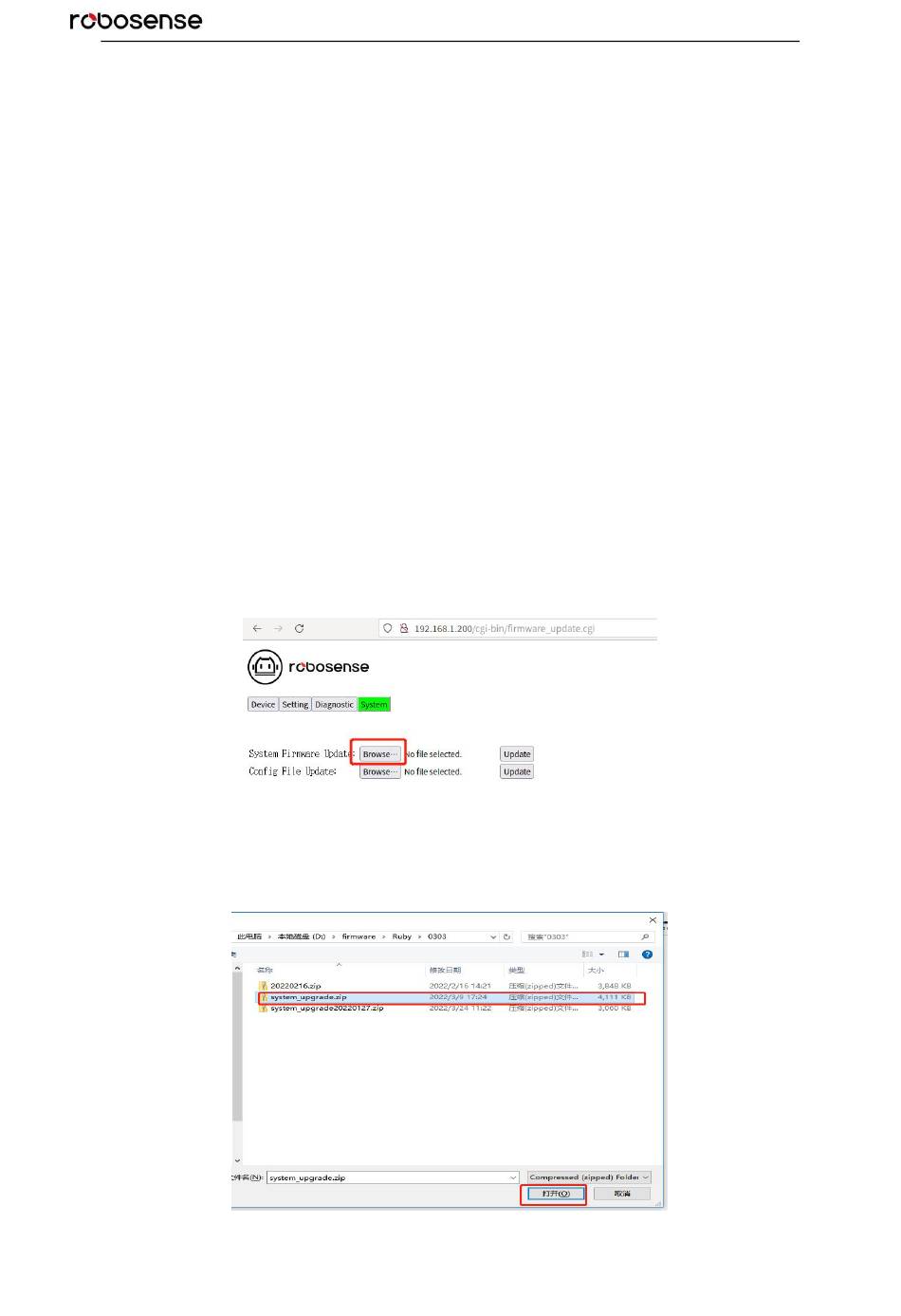

Figure A-5 Upgrade interface
2.Select the right firmware that is going to be used for the update, and click Open to upload the
file.
Figure A-6 Select the Right Firmware
