Operation; Cable Specifications - Transition Networks SCSCF3011-100 User Manual

SCSCF30xx-10x
Installation
-- Continued
Power the Media Converter
AC
1. Connect the barrel connector on the power adapter to the media
converter's power port (located on the back of the media converter).
2. Connect the power adapter plug to AC power.
3. Verify that the media converter is powered by observing the illuminated
LED power indicator light.
DC
Consult the user's guide for the Transition Networks SPS1872-xx DC external
power supply for powering the media converter.

Operation

After installation, the media converter should function without operator
intervention. Use the status LEDs to monitor the media converter operation in the
network.
SDC Green on The coax link is up.
Green flashing The coax link is in loop-back mode.
Yellow on AIS (Alarm Indication Signal) on the coax link.
SDF Green on The fiber link is up.
Green flashing The fiber link is in loop-back mode.
Yellow on AIS (Alarm Indication Signal) on the fiber link.
PWR Green on The media converter is connected to external power.

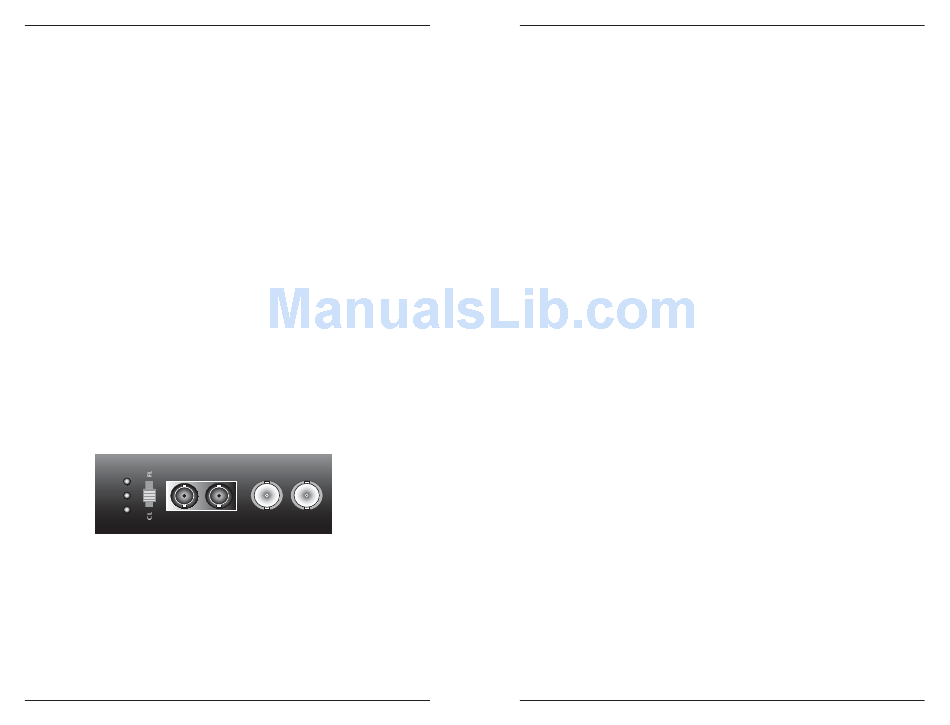

TX
PWR
SDF
SDC
Fiber Fiber
6 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
RX TX RX
Coax Coax

Cable Specifications

Coax Cable
DS3 / E3: 75 ohm coax cable with BNC connectors.
Fiber Cable
Singlemode fiber (recommended):
Multimode fiber (recommended):
Multimode fiber (optional):
SCSCF3011-100
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Link Budget:
SCSCF3013-100
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Link Budget:
SCSCF3014-100
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
SCSCF3015-100
Fiber Optic Transmitter Power:
Fiber Optic Receiver Sensitivity:
Link Budget:
SCSCF3016-100
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
SCSCF3017-100
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
SCSCF3018-100
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
SCSCF3019-100
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
SCSCF3029-100
SCSCF3029-101
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
SCSCF3029-102
SCSCF3029-103
Fiber-optic Transmitter Power:
Fiber-optic Receiver Sensitivity:
Link Budget:
