network ports over fiber. The Ethernet, RS-232, and T1/E1 interfaces are independent of
each other and the signals from these ports can be sent over the fiber interface
simultaneously.
The S4TEF10xx-11x is designed to be installed in pairs. For example, install one
S4TEF1011-110 as the local media converter and another S4TEF1011-110 as the remote
media converter. All S4TEF10xx-11x models have the following copper connectors.
Connector Type
Number
Ethernet
1
RS-232
1
T1
4
The various fiber connectors are available on separate models. Both duplex and single
mode fiber optic converters are available:
Part Number
Duplex Fiber-Optic - 100Base-FX
S4TEF1011-110
ST, 1300 nm multimode, 2 km (1.2 miles)*
S4TEF1013-110
SC, 1300 nm multimode, 2 km (1.2 miles)*
S4TEF1014-110
SC, 1310 nm single mode, 20 km (12.4 miles)*
S4TEF1015-110
SC, 1310 nm single mode, 40 km (24.8 miles)*
S4TEF1016-110
SC, 1310 nm single mode, 60 km (37.2 miles)*
S4TEF1017-110
SC, 1550 nm single mode, 80 km (49.7 miles)*
S4TEF1018-110
MT-RJ, 1300 nm multimode, 2 km (1.2 miles)*
S4TEF1029-11x
(Single mode, single fiber models are listed on page 2.)
distance is dependent upon the physical
The chassis version of the media converter is
C4TEF10xx-11x. For more information, see
the user's guide on-line at:
User's Guide
S4TEF10xx-11x

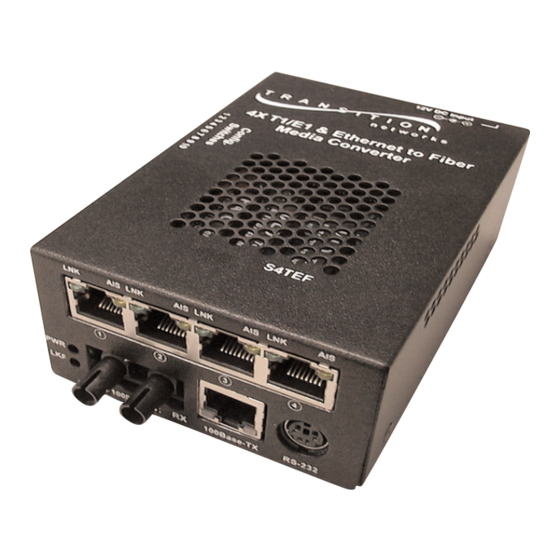

Stand-Alone Media Converter
• Twisted-Pair Copper to Fiber
• 10/100Base-TX to 100Base-FX
• RS-232 to Fiber
• (4) T1/E1 to Fiber
The S4TEF10xx-11x media converter is
designed to extend signals from a 10Base-T
Ethernet/100Base-TX Fast Ethernet port, an
RS-232 data port, and up to four (4) T1/E1
Description
RJ-45, 100 Mb/s, 100 m (328 ft.)*
6-pin, DIN serial 3.2 m (10 ft.)*
RJ-48
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . .10
Cable Specifications . . . . . . . . . .19
Technical Specifications . . . . . . .23
Troubleshooting . . . . . . . . . . . . .24
Contact Us . . . . . . . . . . . . . . . . .26
Compliance Information . . . . . . .27
Advertisement
Table of Contents
Related Manuals for Transition Networks Stand-Alone Media Converter S4TEF10xx-11x
Summary of Contents for Transition Networks Stand-Alone Media Converter S4TEF10xx-11x
-

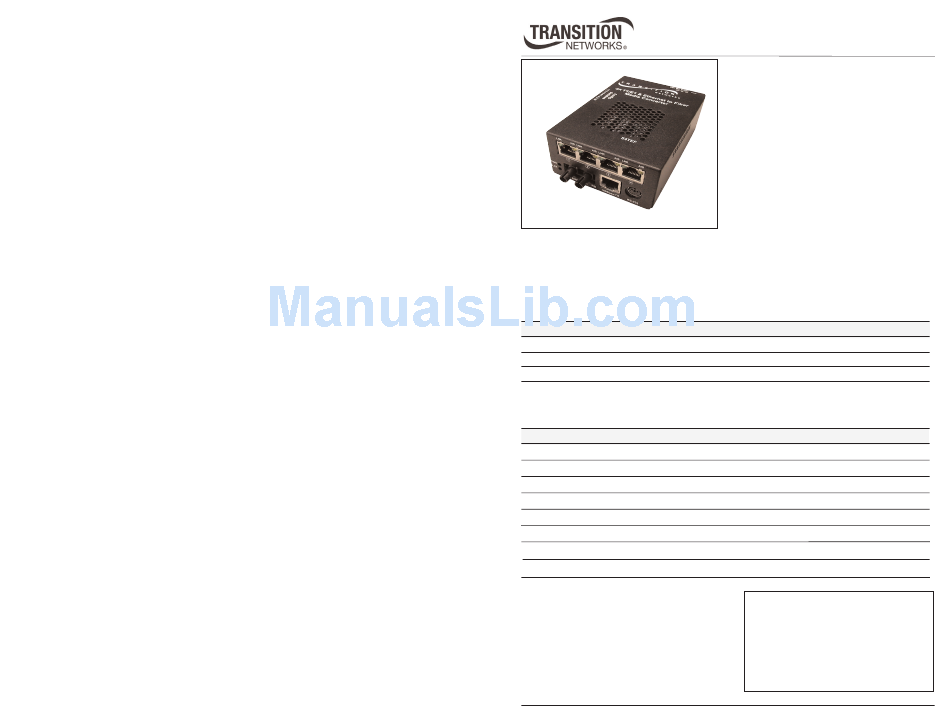

Page 1: Table Of Contents
User’s Guide S4TEF10xx-11x Stand-Alone Media Converter • Twisted-Pair Copper to Fiber • 10/100Base-TX to 100Base-FX • RS-232 to Fiber • (4) T1/E1 to Fiber The S4TEF10xx-11x media converter is designed to extend signals from a 10Base-T Ethernet/100Base-TX Fast Ethernet port, an RS-232 data port, and up to four (4) T1/E1 network ports over fiber. -
Page 2: Configuration Switches
S4TEF10xx-11x Part Number Fiber-Optic - Single Fiber, Single Mode, 100Base-FX S4TEF1029-110 SC, 1310 mn TX/1550 nm RX, 20 km (12.4 miles)* S4TEF1029-111 SC, 1550 mn TX/1310 nm RX, 20 km (12.4 miles)* Note: S4TEF1029-110 and S4TEF1029-111 are intended to be installed in the same link where one is the local converter and the other is the remote converter. - Page 3 S4TEF10xx-11x Installation -- Continued Switch set #1 - T1/E1 options 5, 6, 7, 8 - Loop-Back settings The loop-back setting is used for installation and network debugging procedures. Each of the T1/E1 ports can be individually set for loop-back mode: •...
- Page 4 512 BT, the path is good. For more information on the 512-bit rule, see the white paper titled “Collision Domains” on the Transition Networks website at: www.transition.com. 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 Installation -- Continued...
-
Page 5: Install The Fiber Cable
Connect the power adapter plug to AC power. Verify that the media converter is powered by observing the illuminated LED power indicator light. Note: For DC power, consult the user’s guide for the Transition Networks SPS1872-xx DC external power supply. Install the T1/E1 cable Locate or build ITU-compliant copper cable with straight-through RJ-48 connectors installed at both ends. -
Page 6: Optional Accessories
T1/E1 links are relay lost. The operational rating on pins 3 and 6 are 0-30 VDC, 100 mA (maximum). Optional accessories The following items are available from Transition Networks Part Number Description SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Output: 12.6VDC, 1.0 A... - Page 7 The S4TEF10xx-11x can be remotely managed when connected via fiber cable to a local C4TEF10xx-11x slide-in-module media converter that is installed in a managed Transition Networks PointSystem™ chassis. The SNMP section (below) lists the commands that can be used to monitor and manage a networked S4TEF10xx-11x media converter at a remote location.
- Page 8 SBFTF10xx-10x Operation -- Continued Setting the password: At the prompt, press the letter “P” key. At the prompt, type any alphanumeric combination (8 characters maximum) Press the ENTER key: the password is set. Important: After setting up or changing command parameter(s) you must save the change(s) before exiting the screen or the change(s) will not go into effect.
- Page 9 S4TEF10xx-11x Operation -- Continued To show the configuration menu for the remote device: At the prompt, type the letter “C,” press the spacebar, then type the letter “R.” Press the ENTER key and the remote device configuration menu will appear: Note: In this menu, the T1/E1/J1 commands for remote loopback, for example, type the command this way: LL, press the spacebar, then type the port number, press spacebar, then type...
-
Page 10: Cable Specifications
S4TEF10xx-11x Operation -- continued To Reset the local device: Caution: This command will interrupt T1/E1 and Ethernet traffic. It will take several seconds to restore the data path. Failure to observe this caution might cause data loss. At the prompt, type the letter “R.” Press the ENTER key to send the Reset signal to the remote device. -
Page 11: Ethernet Cable
S4TEF10xx-11x Cable Specifications -- Continued The fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-825/CDRH standards and complies with 21 CFR1040.10 and 21 CFR1040.11. Ethernet cable Category 3: (minimum requirement for 10 Mb/s operation) Gauge 24 to 22 AWG Attenuation 11.5 dB/100m @ 5-11 MHz... -
Page 12: Technical Specifications
Signal Ground Transmit Signal Receive Signal Clear to Send DIN 6-pin DB-9 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600 Technical Specifications For use with Transition Networks Model S4TEF10xx-11x or equivalent. Standards Data Rate Dimensions Weight Power Consumption Receive Data Power Supply... -
Page 13: Troubleshooting
S4TEF10xx-11x Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the “PWR” LED illuminated? • Ensure that the power adapter is the proper type of voltage and cycle frequency for the outlet (See “Power Supply”... -
Page 14: Contact Us
Konformität. In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. - Page 15 © 2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks. 33301.F Printed in the U.S.A.
