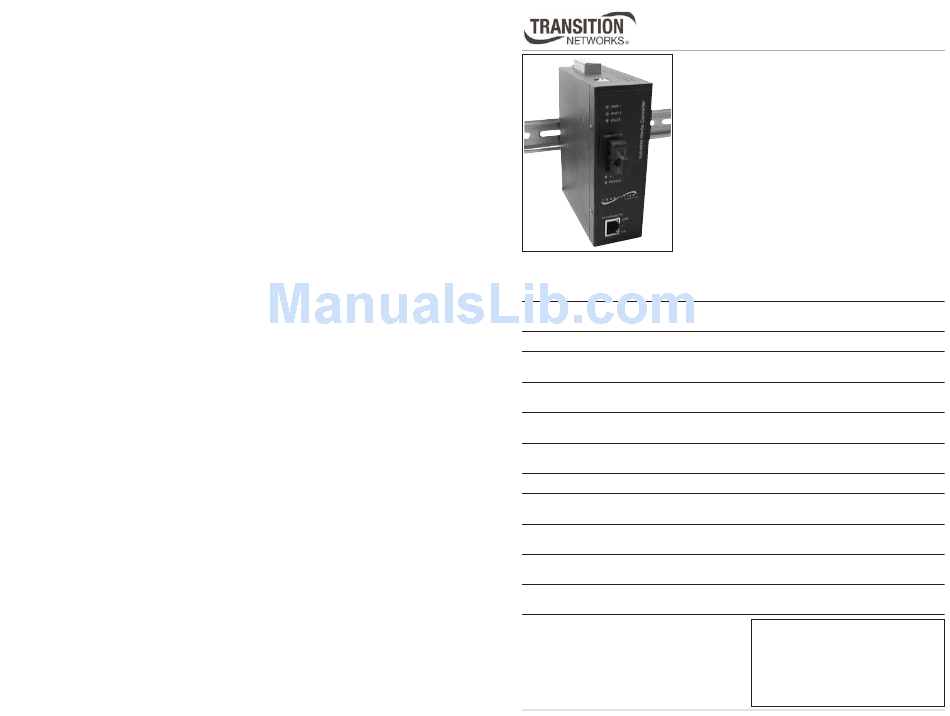

User's Guide
SISTF10xx-110-LR(T)
Stand-alone industrial media converter
• Copper to fiber
• Ethernet/fast ethernet
• 10Base-T/100Base-TX to 100Base-FX
• Extended temperature
• Hazardous environment

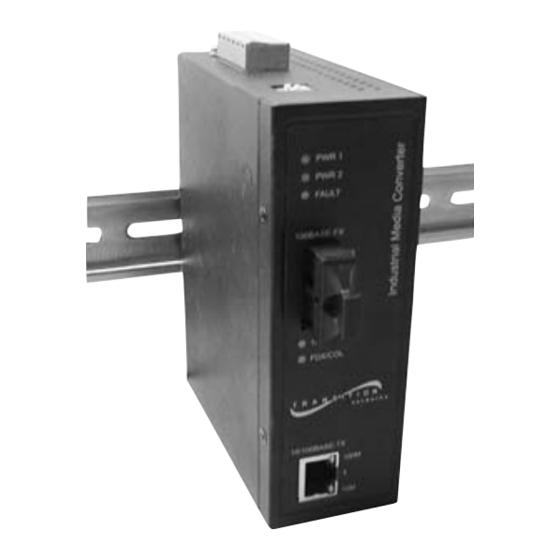

Transition Networks SISTF10xx-110-LR(T) industrial
media converter connects 10Base-T/100Base-TX
twisted-pair copper cable to 100Base-FX fiber-optic
cable. The SISTF10xx-110-LR(T) is designed for
harsh industrial environments such as hazardous
locations (Class 1 Division 2/Zone 2). It includes a relay output warning alarm, and
is designed to withstand a high degree of vibration and shock. It is also available in
models that operate in either standard or extended temperature ranges.
Part Number
Port One - Copper
10Base-T/100Base-TX
Standard Temperature Models: 0°C to 60°C (32°F to 140°F)
SISTF1011-110-LR
RJ-45
100 m (328 ft)*
SISTF1012-110-LR
RJ-45
100 m (328 ft)*
SISTF1013-110-LR
RJ-45
100 m (328 ft)*
SISTF1014-110-LR
RJ-45
100 m (328 ft)*
Extended Temperature Models: -40°C to 70°C (-40°F to 158°F)
SISTF1011-110-LRT
RJ-45
100 m (328 ft)*
SISTF1012-110-LRT
RJ-45
100 m (328 ft)*
SISTF1013-110-LRT
RJ-45
100 m (328 ft)*
SISTF1014-110-LRT
RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network
installation.
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
15 km (9.3 miles)*
ST, 1300 nm multimode
2 km (1.2 miles)*
ST, 1310 nm single mode
15 km (9.3 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
15 km (9.3 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . .9
Technical Specifications . . . . . . .11
Troubleshooting . . . . . . . . . . . . .13
Compliance Information . . . . . . .15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SISTF1011-110-LR
Summary of Contents for Transition Networks SISTF1011-110-LR
- Page 1 It is also available in models that operate in either standard or extended temperature ranges. Part Number Port One - Copper 10Base-T/100Base-TX Standard Temperature Models: 0°C to 60°C (32°F to 140°F) SISTF1011-110-LR RJ-45 100 m (328 ft)* SISTF1012-110-LR RJ-45 100 m (328 ft)*...
-
Page 2: Installation
SISTF10xx-110-LR(T) Installation DIN-rail mount The SISTF10xx-110-LR(T) media converter includes an aluminum DIN-rail mounting plate attached to the back panel of the converter. To mount the converter onto a DIN-rail: Insert the top of the DIN-Rail into the upper slot of the mounting plate. The stiff metal spring should be positioned behind the DIN-rail. -
Page 3: Set The Dip Switches
SISTF10xx-110-LR(T) Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the dip switches. Failure to observe this caution could result in damage to, and failure of, the media converter. Set the DIP switches • The DIP switches are located on the top panel of the media converter. -
Page 4: Power The Media Converter
SISTF10xx-110-LR(T) Installation -- Continued Power the media converter This device is suitable for use in Class I, Division 2, Groups A, B, C and D or non-hazardous locations only. WARNING: EXPLOSION HAZARD - Do not disconnect equipment unless power has been removed or the area is known to be non- hazardous. -
Page 5: Auto-Negotiation
Bit Error Rate: <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SISTF1011-110-LR 1300 nm multimode Fiber Optic Transmitter Power: min: -20.0 dBm Fiber Optic Receiver Sensitivity: min: -36.0 dBm Link Budget: 16.0 dB... -
Page 6: Copper Cable
SISTF10xx-110-LR(T) Cable Specifications -- Continued Copper cable Category 5: (minimum requirement) Gauge: 24 to 22 AWG Attenuation: 22.0 dB /100m @ 100 MHz Maximum cable distance: 100 meters • Straight-through or crossover cable may be used. • Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) may be used. •... -
Page 7: Troubleshooting
SISTF10xx-110-LR(T) Technical Specifications -- Continued EMS Type Tests Test Description IEC61000-4-2 ESD Air discharge Contact discharge ESD contact discharge IEC61000-4-3 Radiated RFI Housing IEC61000-4-4 Burst Power supply lines (Fast Transient) Communication lines Relay IEC61000-4-5 Surge Power supply lines Relay IEC61000-4-6 Induced Power supply lines (Conducted RFI) Communication lines... -
Page 8: Compliance Information
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s). May 5, 2006_____ Stephen Anderson, Vice-President of Engineering Date NOTE: The following part numbers are UL listed: SISTF1011-110-LR, SISTF1011-110- LRT, SISTF1013-110-LR, SISTF1013-110-LRT, SISTF1014-110-LR, SISTF1014-110-LRT. Compliance Information UL Listed, C-UL Listed (Canada) CISPR22/EN55022 Class A, CE Mark NOTE: The following part numbers are UL listed: SISTF1011-110-LR, SISTF1011-110-LRT, SISTF1013-110-LR, SISTF1013-110-LRT, SISTF1014-110-LR, SISTF1014-110-LRT. - Page 9 Compliance Information -- continued Canadian regulations This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on the radio interference regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté...
