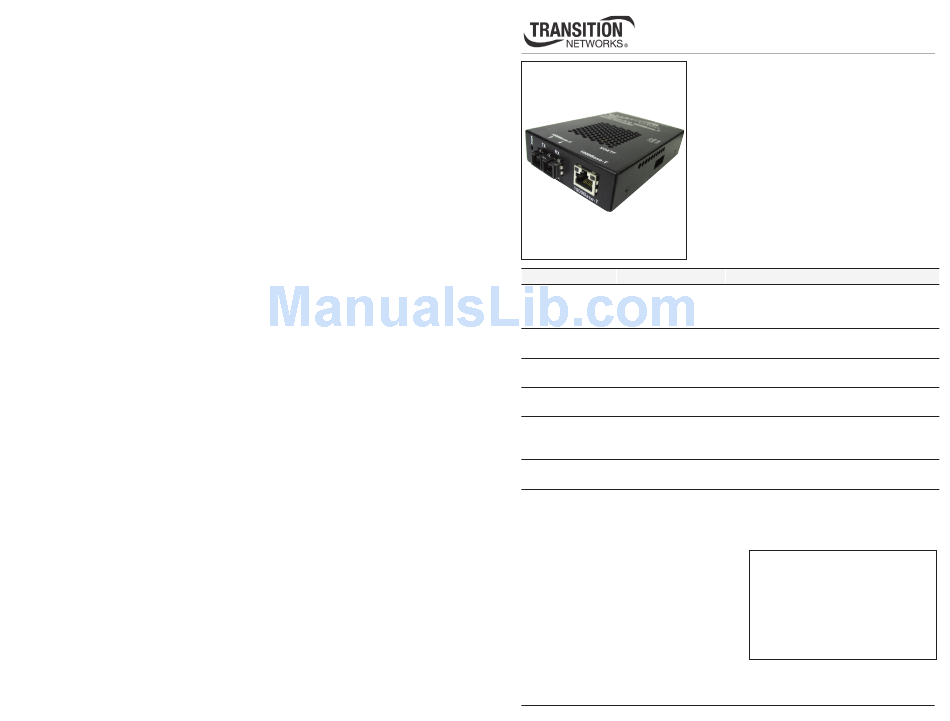

User's Guide
SGETF10xx-1xx
Stand-Alone Media Converter
• Gigabit Ethernet
• Copper to Fiber
• 1000Base-T to 1000Base-SX/LX

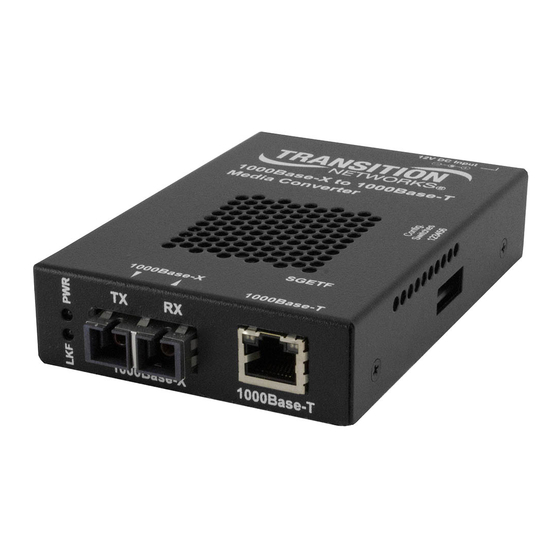

Transition Networks SGETF10xx-1xx Gigabit
Ethernet media converter connects 1000Base-T
shielded or unshielded twisted-pair copper cable to
1000Base-SX or 1000Base-LX, fiber-optic cable.
The SGETF10xx-1xx is a stand-alone media
converter
Part Number
Port One - Copper Port Two - Duplex Fiber-Optic
SGETF1013-110 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1014-110 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1015-110 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1017-110 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1024-110 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1035-110 RJ-45 1000Base-T
100 m (328 ft)*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
Note: The chassis version of the media converter is CGETF10xx-11x. For more
information, see the CGETF10xx-1xx user's
guide on-line at: www.transition.com.
SC, 1000Base-SX, 850 nm multimode
220 m (721 ft)* (62.5/125
m cable)
µ
550 m (1,804 ft)* (50/125
m cable)
µ
SC, 1000Base-LX, 1310 nm single mode
10 km (6.2 miles)*
SC, 1000Base-LX, 1310 nm single mode
25 km (15.5 miles)*
SC, 1000Base-LX, 1550 nm single mode
65 km (40.4 miles)*
SC, 1000Base-SX, 1310 nm extended
multimode, 2 km (1.2 miles)*
Note: 62.5/125
m (fiber only)
µ
SC, 1000Base-LX, 1550 nm single mode
125 km (77.5 miles)*
Installation . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . . .9
Technical Specifications . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . .12
Contact Us . . . . . . . . . . . . . . . . . . .13
Compliance Information . . . . . . . . .15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGETF1013-110 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SGETF1013-110

Summary of Contents for Transition Networks SGETF1013-110

  • Page 1: Table Of Contents

    The SGETF10xx-1xx is a stand-alone media converter Part Number Port One - Copper Port Two - Duplex Fiber-Optic SGETF1013-110 RJ-45 1000Base-T SC, 1000Base-SX, 850 nm multimode 100 m (328 ft)* 220 m (721 ft)* (62.5/125 550 m (1,804 ft)* (50/125...

  • Page 2: Installation

    SGETF10xx-1xx Part Number Port One - Copper Port Two - Single Fiber-Optic SGETF1029-110 RJ-45 1000Base-T SC, 1000Base-LX, 1310 TX/1550 RX 100 m (328 ft)* single mode, 20 km (12.4 miles)* SGETF1029-111 RJ-45 1000Base-T SC, 1000Base-LX, 1550 TX/1310 RX 100 m (328 ft)* single mode, 20 km (12.4 miles)* SGETF1029-112 RJ-45 1000Base-T SC, 1000Base-LX, 1310 TX/1550 RX...

  • Page 3: Install The Fiber Cable

    SGETF10xx-1xx Installation -- Continued Install Mode During installation, set converter DIP switch 4 DOWN; leave all other switches in the UP position (default). This disables Transparent Link Pass-Through and Auto- Negotiation, allowing individual copper and fiber links to be established (both copper port LEDs will turn ON with each device-to-device connection) independent of a complete end-to-end connection.

  • Page 4: Power The Media Converter

    SGETF10xx-1xx Installation -- Continued Install the copper cable Locate a 1000Base-T compliant copper cables with male, RJ-45 connectors installed at both ends. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the SGETF10xx-1xx media converter. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (switch, workstation, etc.).

  • Page 5: Fiber Cable

    <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SGETF1013-110 850 nm multimode Fiber Optic Transmitter Power: min: -10.0 dBm Fiber Optic Receiver Sensitivity: min: -17.0 dBm Link Budget: 7.0 dB...

  • Page 6: Technical Specifications

    SGETF10xx-1xx Cable Specifications -- Continued Fiber cable - Continued SGETF1029-112 1310nm TX / 1550nm RX single mode SGETF1029-113 1550nm TX / 1310nm RX single mode Fiber-optic Transmitter Power: min: -3.0 dBm Fiber-optic Receiver Sensitivity: min: -23.0 dBm Link Budget: 20.0 dB SGETF1029-116 1510nm TX / 1590nm RX single mode SGETF1029-117...

  • Page 7: Troubleshooting

    SGETF10xx-1xx Troubleshooting If the media converter fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: Is the PWR (power) LED illuminated? • Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? •...

  • Page 8: Compliance Information

    Declaration of Conformity Name of Mfg: Transition Networks 10900 Red Circle Drive Minnetonka MN 55343 U.S.A. Model: SGETF10xx-1xx Series Media Converters Part Number(s): SGETF1013-110, SGETF1014-110, SGETF1015-110, SGETF1017-110, SGETF1018-110, SGETF1024-110, SGETF1035-110, SGETF1040-110, SGETF1029-110, SGETF1029-111, SGETF1029-112, SGETF1029-113, SGETF1029-116, SGETF1029-117 Regulation: EMC Directive 89/336/EEC...
  • Page 9 SGETF10xx-1xx Trademark notice All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions © 2003-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
