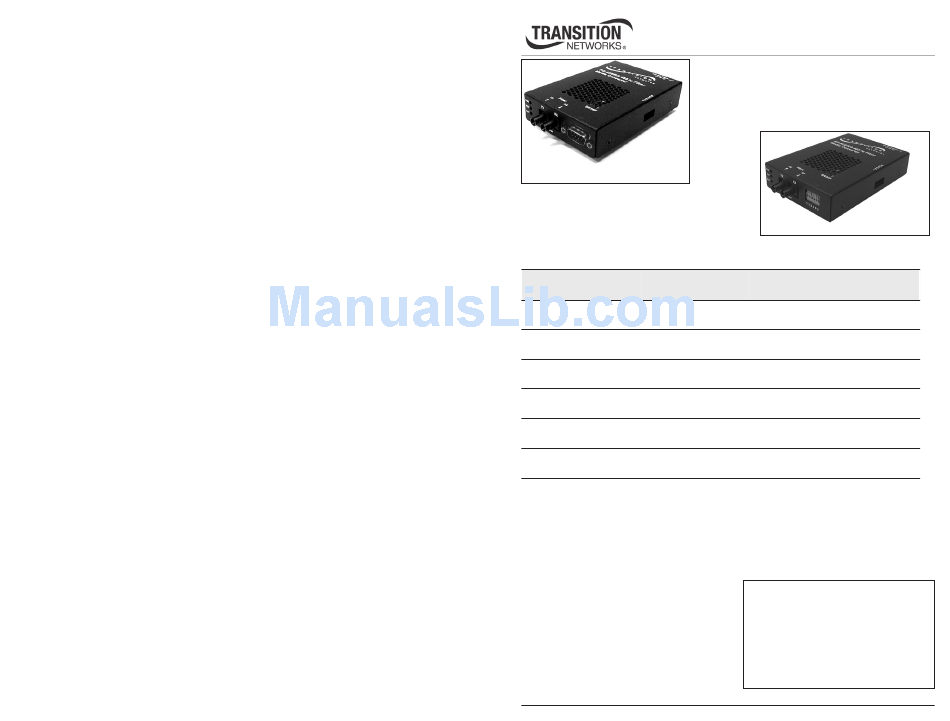

USER'S GUIDE
SRS4Fxxxx-100

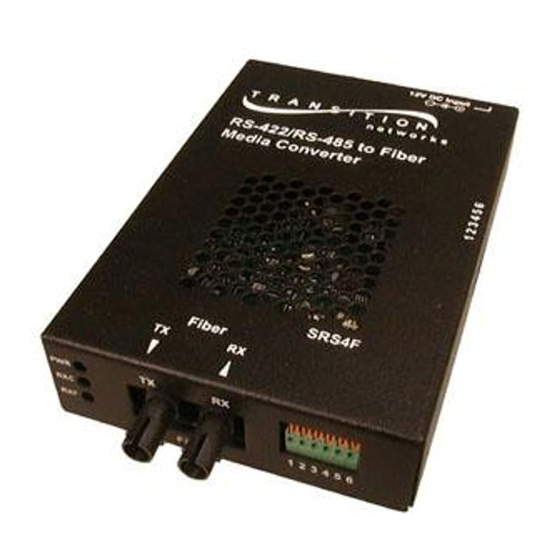

Stand-Alone Media Converter
RS485/422 Copper to Fiber
SRS4F31xx-100
Transition
N e t w o r k s
SRS4Fxxxx-100 series media converters connect
RS485/422 copper cable to fiber-optic cable at
asynchronous data rates up to 1.25 Mb/s.
The SRS4F31xx-100 media converters use a male DB-9 port for the copper link:
Part Number
Port One - Copper
DB-9 port
SRS4F3111-100
RS485/422
1200 m (4000 ft)*
SRS4F3113-100
RS485/422
1200 m (4000 ft)*
SRS4F3114-100
RS485/422
1200 m (4000 ft)*
SRS4F3115-100
RS485/422
1200 m (4000 ft)*
SRS4F3116-100 (LX) RS485/422
1200 m (4000 ft)*
SRS4F3117-100 (LH) RS485/422
1200 m (4000 ft)*
* Maximum cable distance is 1200m (4000') @ <90 kb/s decreasing logarithmically to
92m (300') @ 500 kb/s.
**Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
SRS4F32xx-100
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)**
SC, 1300 nm multimode
2 km (1.2 miles)**
SC, 1310 nm single mode
20 km (12.4 miles)**
SC, 1310 nm single mode
40 km (24.8 miles)**
SC, 1310 nm single mode
60 km (37.3 miles)**
SC, 1550 nm single mode
80 km (49.7 miles)**
Installation . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . .12
Declaration of Conformity . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRS4F3211-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SRS4F3211-100

Summary of Contents for Transition Networks SRS4F3211-100

  • Page 1 USER’S GUIDE SRS4Fxxxx-100 Stand-Alone Media Converter RS485/422 Copper to Fiber SRS4F31xx-100 Transition N e t w o r k s SRS4Fxxxx-100 series media converters connect RS485/422 copper cable to fiber-optic cable at asynchronous data rates up to 1.25 Mb/s. SRS4F32xx-100 The SRS4F31xx-100 media converters use a male DB-9 port for the copper link: Part Number Port One - Copper...

  • Page 2: Installation

    Port Two - Fiber-Optic when setting the switches. Failure to observe this caution could result in damage to, 6-position terminal block and subsequent failure of, the media converter. SRS4F3211-100 RS485/422 ST, 1300 nm multimode 1200 m (4000 ft)* 2 km (1.2 miles)**...
  • Page 3 SRS4Fxxxx-100 Installation Installation -- Continued -- Continued Set the 6-Position Switch -- continued Install the Copper Cable (DB-9 port) Switch 4 - 1K ohm “pull-up” Install the copper cable as instructed if the media converter has a DB-9 copper port (SRS4F31xx-100 = Disable models).

  • Page 4: Operation

    Verify that the media converter is powered by observing the illuminated LED power indicator light. Consult the user’s guide for the Transition Networks SPS1872-xx DC external power supply for powering the media converter. Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

  • Page 5: Cable Specifications

    -5.0 dBm max: 0.0 dBm Fiber-optic Receiver Sensitivity: min: -34.0 dBm max: -7.0 dBm Link Budget: 29.0 dB SRS4F3211-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm 6-Position Terminal Block: Fiber Optic Receiver Sensitivity: min: -30.0 dBm...

  • Page 6: Technical Specifications

    SRS2F26xx-100 Technical Specifications Cable Specifications -- Continued For use with Transition Networks Model SRS4Fxxxx-100 or equivalent Data Rate 0 to 1.25 Mb/s SRS4F3129-100 1310TX/1550TR nm single mode SRS4F3129-101 1550TX/1310TR nm single mode Dimensions 3.25" x 4.7" x 1.0" (83 mm x 119 mm x 25 mm) Fiber Optic Transmitter Power: min: -13.0 dBm...

  • Page 7: Troubleshooting

    • Is the power adapter the proper type of voltage and cycle frequency for Part Number: SRS4F3111-100, SRS4F3113-100, SRS4F3114-100, SRS4F3115-100, SRS4F3211-100, SRS4F3213-100, the AC outlet? (See “Power Supply DC Output.”) SRS4F3214-100, SRS4F3215-100, SRS4F3129-100, • Is the power adapter properly installed in the media converter and in the...

  • Page 8: Compliance Information

    Konformität. In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
  • Page 9 © 2004-2009 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks. Printed in the U.S.A.
