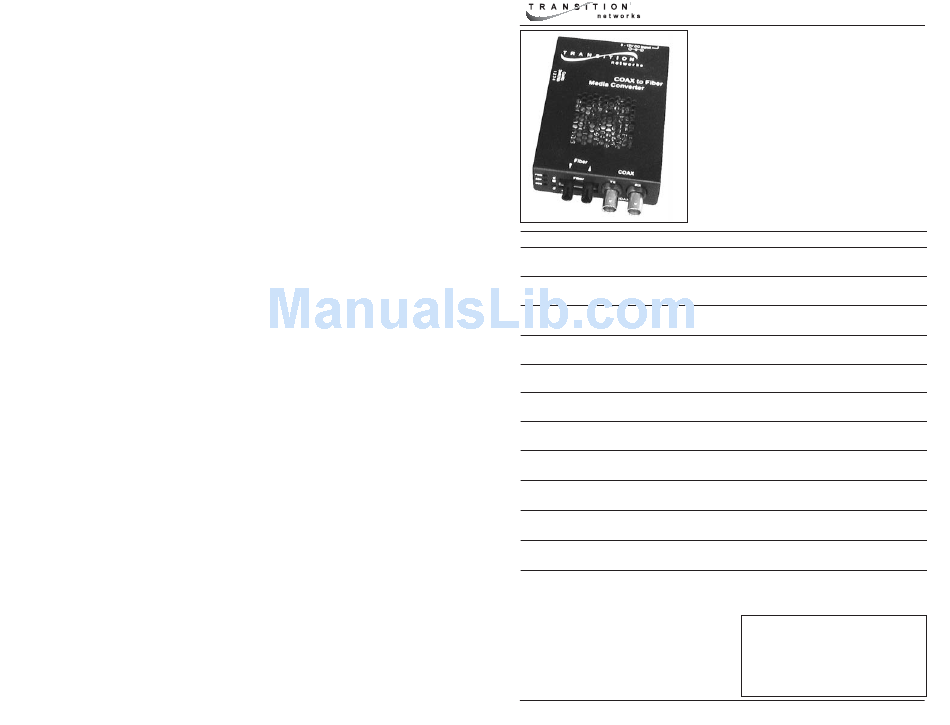

User's Guide
SCSCF30xx-10x

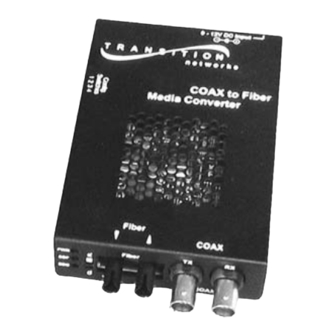

Stand-Alone Media Converter
•
•
Transition Networks SCSCF30xx-10x series
media converters encode and decode DS3 or
E3 coax copper signals over fiber optic cable
to extend the distance and transmission
reliability of high-speed DS3 or E3 data traffic.
The SCSCF30xx-10x also connects remote
locations via T3/E3 cable.
Part Number
Port One - Copper
SCSCF3011-100
75 ohm coax (BNC)
SCSCF3013-100
75 ohm coax (BNC)
SCSCF3014-100
75 ohm coax (BNC)
SCSCF3015-100
75 ohm coax (BNC)
SCSCF3016-100
75 ohm coax (BNC)
SCSCF3017-100
75 ohm coax (BNC)
SCSCF3018-100
75 ohm coax (BNC)
SCSCF3019-100
75 ohm coax (BNC)
SCSCF3029-100
75 ohm coax (BNC)
SCSCF3029-101
75 ohm coax (BNC)
SCSCF3029-100 and -101 are intended to be installed in the same network where
one is the local converter and the other is the remote converter.
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network.
NOTE: The CCSCF30xx-10x model is the
chassis version of the media converter. For
more information, see the CCSCF30xx-10x
user's guide on-line at www.transition.com.
DS3 or T3 / E3
Coax (BNC) to Fiber
Port Two - Duplex Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm singlemode
20 km (12.4 miles)*
SC, 1310 nm singlemode
40 km (24.8 miles)*
SC, 1310 nm singlemode
60 km (37.3 miles)*
SC, 1550 nm singlemode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
LC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
20 km (12.4 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
20 km (12.4 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .8
Troubleshooting . . . . . . . . . . . . . .9
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCSCF3011-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks SCSCF3011-100

Summary of Contents for Transition Networks SCSCF3011-100

  • Page 1 DS3 or T3 / E3 • Coax (BNC) to Fiber Transition Networks SCSCF30xx-10x series media converters encode and decode DS3 or E3 coax copper signals over fiber optic cable to extend the distance and transmission reliability of high-speed DS3 or E3 data traffic.

  • Page 2: Installation

    SCSCF30xx-10x Part Number Port One - Copper Port Two - Single Fiber Optic SCSCF3029-102 75 ohm coax (BNC) SC, 1310 mn (TX)/1550 nm (RX) 40 km (24.8 miles)* SCSCF3029-103 75 ohm coax (BNC) SC, 1550 mn (TX)/1310 nm (RX) 40 km (24.8 miles)* SCSCF3029-102 and -103 are intended to be installed in the same network where one is the local converter and the other is the remote converter.
  • Page 3 SCSCF30xx-10x Installation -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the jumper. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the Coax Grounding Jumpers NOTE: Modify the settings for J11 and J12 only if necessary.

  • Page 4: Operation

    -- Click the “Transition Now” link for a live Web chat. DS3 / E3: 75 ohm coax cable with BNC connectors. 9 µm 62.5/125 µm 100/140, 85/140, 50/125 µm SCSCF3011-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm...

  • Page 5: Troubleshooting

    SCSCF30xx-10x Cable Specifications -- Continued CSCSCF3039-100 1300 nm multimode Fiber-optic Transmitter Power: min: -19.0 dBm Fiber-optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB The fiber optic transmitters on this device meet Class I Laser safety requirements per IEC-825/CDRH standards and comply with 21 CFR1040.10 and 21CFR1040.11.
  • Page 6 Declaration of Conformity Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: SCSCF30xx-10x Series Media Converter Part Number: SCSCF3011-100, SCSCF3013-100, SCSCF3014-100, SCSCF3015-100, SCSCF3016-100, SCSCF3017-100, SCSCF3018-100, SCSCF3019-100, SCSCF3029-100, SCSCF3029-101, SCSCF3029-102, SCSCF3029-103, SCSCF3039-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SCSCF30xx-10x to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    Compliance Information CE Mark CISPR22/EN55022 Class A + EN55024 FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
