Transition Networks SGETF1013-105 User Manual

Stand-alone media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

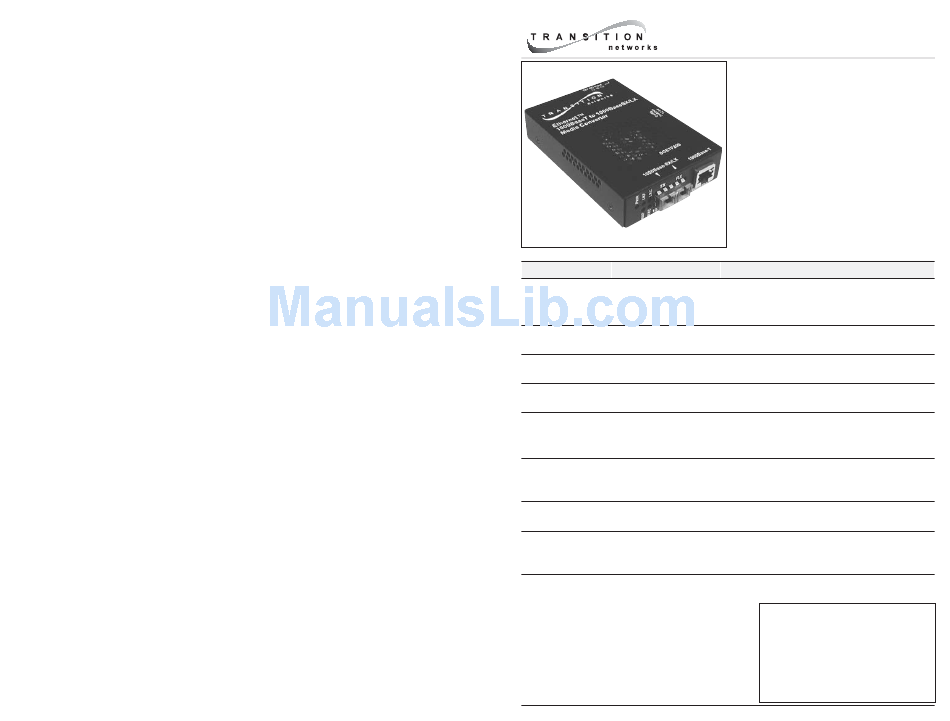

Part Number
Port One - Copper
SGETF1013-105 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1014-105 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1015-105 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1017-105 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1018-105 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1024-105 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1035-105 RJ-45 1000Base-T
100 m (328 ft)*
SGETF1039-105 RJ-45 1000Base-T
100 m (328 ft)*
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.
NOTE: The chassis version of the media
converter is CGETF10xx-10x. For more
information, see the CGETF10xx-10x user's
guide on-line at: www.transition.com.
User's Guide
SGETF10xx-10x

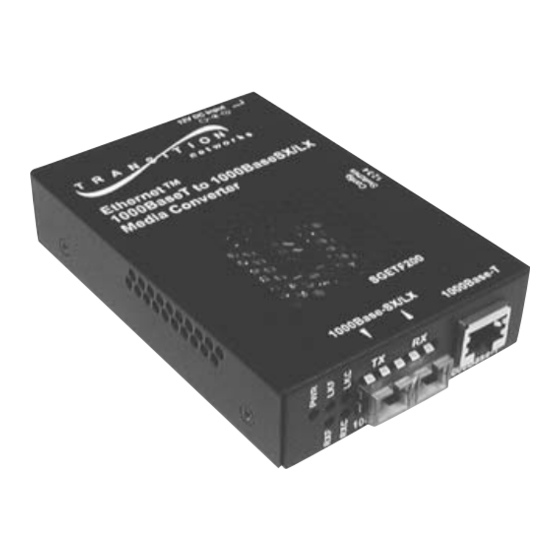

Stand-Alone Media Converter
• Gigabit Ethernet
• Copper to Fiber
• 1000Base-T to 1000Base-SX/LX
Transition Networks SGETF10xx-10x
gigabit Ethernet media converter
connects 1000Base-T shielded or
unshielded twisted-pair copper cable
to 1000Base-SX or 1000Base-LX, fiber-
optic cable.
Port Two - Duplex Fiber-Optic
SC, 1000Base-SX, 850 nm multimode
220 m (722 ft)* (62.5/125
m cable)
µ
500 m (1,640 ft)* (50/125
m cable)
µ
SC, 1000Base-LX, 1310 nm single mode
10 km (6.2 miles)*
SC, 1000Base-LX, 1310 nm single mode
25 km (15.5 miles)*
SC, 1000Base-LX, 1550 nm single mode
65 km (40.4 miles)*
MT-RJ, 1000Base-SX, 850 nm multimode
220 m (722 ft)* (62.5/125
m cable)
µ
500 m (1,640 ft)* (50/125
m cable)
µ
SC, 1000Base-SX, 1300 nm extended
multimode, 2 km (1.2 miles)*
Note: 62.5/125
m (fiber only)
µ
SC, 1000Base-LX, 1550 nm single mode
125 km (77.5 miles)*
LC, 1000Base-SX, 850 nm multimode
220 m (722 ft)* (62.5/125
m cable)
µ
500 m (1,640 ft)* (50/125
m cable)
µ
Installation . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . .8
Technical Specifications . . . . .9
Troubleshooting . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . .11
Compliance Information . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGETF1013-105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks SGETF1013-105

Summary of Contents for Transition Networks SGETF1013-105

  • Page 1 1000Base-SX or 1000Base-LX, fiber- optic cable. Part Number Port One - Copper Port Two - Duplex Fiber-Optic SGETF1013-105 RJ-45 1000Base-T SC, 1000Base-SX, 850 nm multimode 100 m (328 ft)* 220 m (722 ft)* (62.5/125 500 m (1,640 ft)* (50/125...

  • Page 2: Installation

    NOTE: If the SGETF10xx-10x is connected via fiber to another SGETF10xx-10x, both media converters must have the fiber Auto-Negotiation setting disabled (switch 4 = up). Otherwise, the fiber-linked media converters will never link up. (See page 7.) When Fiber Auto-Negotiation is disabled (default setting): Switches 1, 2 and 3 will function only if Fiber Auto-Negotiation is disabled.

  • Page 3: Operation

    SGETF10xx-10x Installation -- Continued Install the fiber cable Locate or build 1000Base-SX/LX compliant fiber cable with male, two- stranded TX to RX connectors installed at both ends. Connect the fiber cables to the SGETF10xx-10x media converter as described: • Connect the male TX cable connector to the female TX port. •...

  • Page 4: Full-Duplex Network

    Because the start abilities are spawned from the receive-end of the fiber interface, fiber-linked media converters will never link if both have Fiber Auto-Negotiation enabled. Therefore, Fiber Auto-Negotiation has been disabled by default.

  • Page 5: Cable Specifications

    <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SGETF1013-105 850 nm multimode Fiber Optic Transmitter Power: min: -10.0 dBm Fiber Optic Receiver Sensitivity: min: -17.0 dBm Link Budget: 7.0 dB...

  • Page 6: Troubleshooting

    Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: SGETF10xx-10x Series Media Converters Part Number(s): SGETF1013-105, SGETF1014-105, SGETF1015-105, SGETF1017-105, SGETF1018-105, SGETF1024-105, SGETF1029-105, SGETF1029-106, SGETF1035-105, SGETF1029-107, SGETF1029-108, SGETF1039-105 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SGETF10xx-10x to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This manual is also suitable for:

Sgetf1014-105Sgetf1015-105Sgetf1017-105Sgetf1024-105Sgetf1018-105Sgetf1035-105 ... Show all
