Operation

Status LEDs

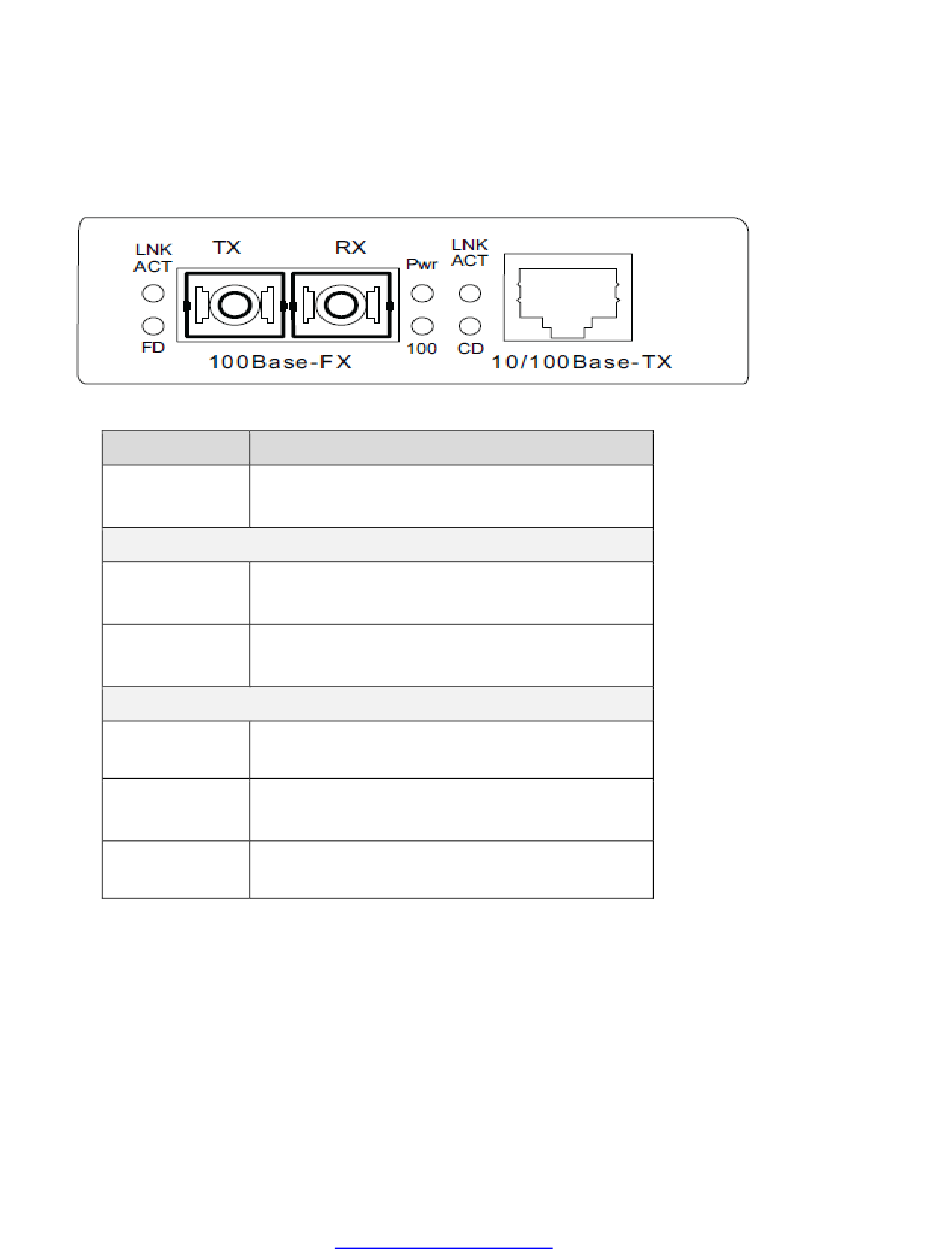

Use the status LEDs to monitor the SGETF10xx-1xx media converter operation in the network.
LED
Pwr
Power
Fiber LEDs
LNK ACT
Link/Activity
FD
(Duplex)
Copper LEDs
LNK ACT
Link/Activity
CD
(Duplex)
100
(Speed)
33404 Rev. G
Description
ON = Power applied
OFF = Not powered
ON Solid = Link established
FLashing = RX Data
ON = Full Duplex
OFF = Half Duplex
ON Solid = Link established
FLashing = RX Data
ON = Full Duplex
OFF = Half Duplex
ON = 100 Mbs
OFF = 10 Mbx
