Transition Networks S3290 Install Manual

Carrier ethernet network interface device
Hide thumbs
Table of Contents

Advertisement

Quick Links

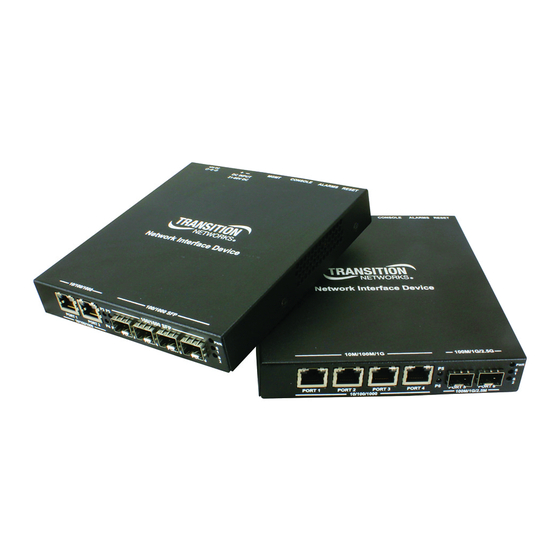

S3290
Carrier Ethernet (CE)
Network Interface Device (NID)
Install Guide
33594 Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3290 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks S3290

Summary of Contents for Transition Networks S3290

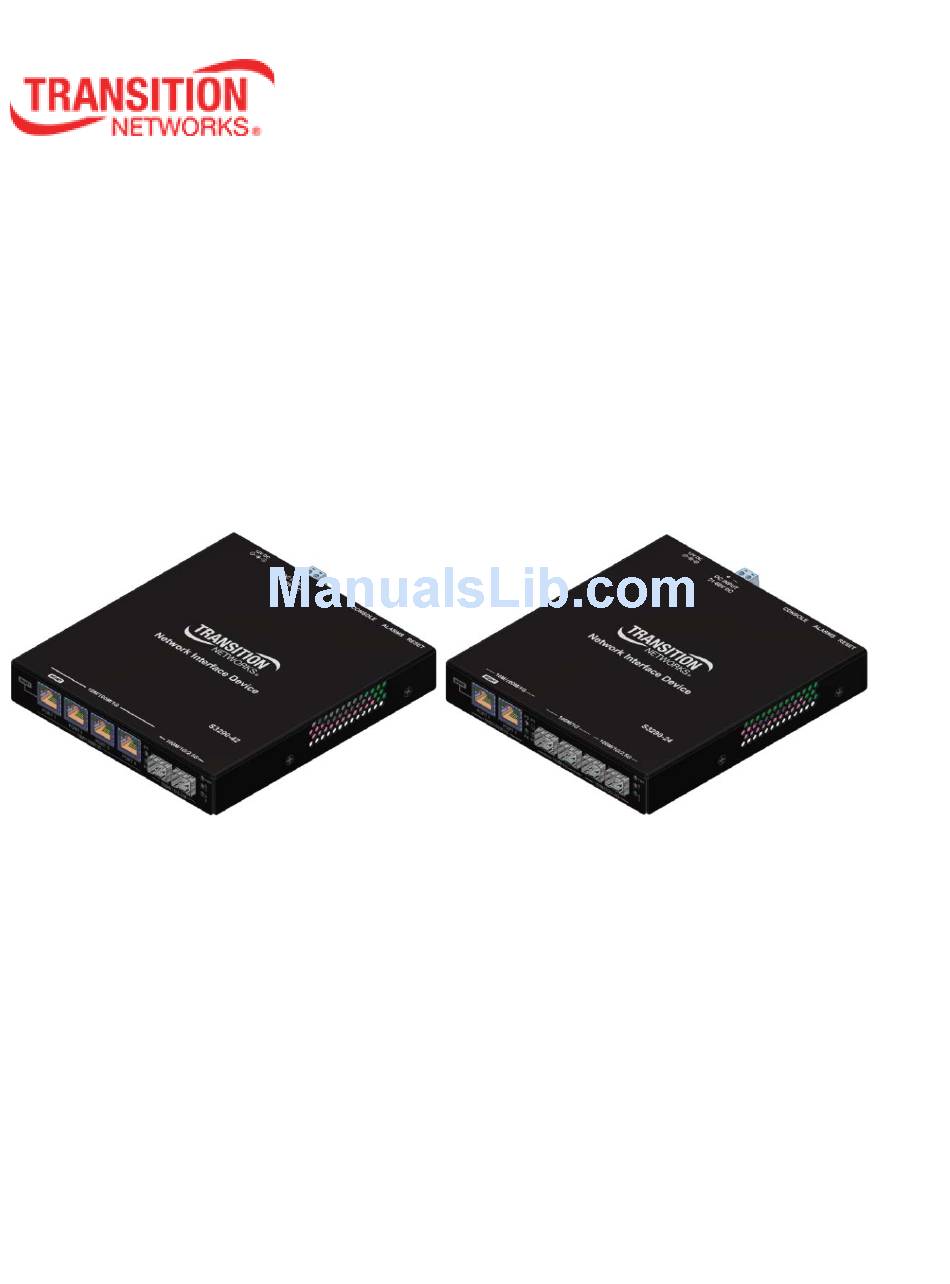

  • Page 1 S3290 Carrier Ethernet (CE) Network Interface Device (NID) Install Guide 33594 Rev. D...

  • Page 2: Safety Warnings And Cautions

    Anyone using this product in such an application without express written consent of an officer of Transition Networks does so at their own risk, and agrees to fully indemnify Transition Networks for any damages that may result from such use or sale.

  • Page 3: Table Of Contents

    Transition Networks, Inc. S3290 Install Guide Table of Contents Safety Warnings and Cautions ....................... 2 1. Introduction ............................4 Product Description ............................4 Models ................................4 Options ................................4 Applications ..............................4 Features ................................ 6 Specifications ..............................7 Related Manuals and Help ..........................7 2.

  • Page 4: Introduction

    SSL/SSH, RADIUS, TACACS+, Management VLAN and ACL rules. The S3290 offers AC or DC power inputs for operation in a variety of environments. The SFP ports are triple speed and support 100Mbps, 1000Mbps or SGMII SFPs. CWDM and Bi-Di SFPs are also supported, allowing for flexible network architectures.
  • Page 5 Transition Networks, Inc. S3290 Install Guide Several S3290 application examples are provided below. CE Services Example Cloud Services Example E-LAN Services Example E-Line Services Example 33594 Rev. D https://www.transition.com Page 5 of 30...

  • Page 6: Features

    Transition Networks, Inc. S3290 Install Guide Features • Two/four 10/100/1000Mbps Base–T ports. Four/two 100/1000Mbps SFP ports. Any port can be network (NNI) or client (UNI). • Two of the SFP ports support a proprietary 2.5Gbps mode. • TP ports support IEEE 802.3az Energy Efficient Ethernet for power saving.

  • Page 7: Specifications

    Power Supply Included: To order the corresponding country specific power supply, add the extension to the end of the SKU (e.g., S3290-24-NA = -NA = North America; -LA = Latin America; -EU = Europe; -UK = United Kingdom, -SA = South Africa, -JP = Japan. -OZ = Australia; -BR = Brazil.

  • Page 8: Installation

    Leave at least 5 cm (1.97 in) of space around the S3290 for ventilation purposes. Desktop Installation Attach the Rubber Feet to the bottom of the S3290 for added stability when placing on a desktop, table top, or other flat surface. Make sure that air flow is not blocked by any obstacles.

  • Page 9: Rack Mount Installation

    Transition Networks, Inc. S3290 Install Guide Rack Mount Installation The S3290-RMB can be used to mount an S3290 on a 19 inch Rack. See the S3290 Single Rack Mount Ear Bracket Install Guide, 33659 for more information. DIN Rail Installation (WMBD)

  • Page 10: Grounding And Wiring Recommendations

    Connect the S3290 to a well-grounded surface. Failure to observe this caution could result in electromagnetic interference (EMI) problems. The S3290 can eliminate the effects of noise due to EMI via proper grounding. Always run the ground connection from the ground screw to the grounded surface before connecting power.
  • Page 11 Error alarm. If not set, the default alarm severity is Info. You can use the S3290 web GUI or CLI to configure alarm contacts; see the related manual for details. The ALARMS port pinning and basic block diagram are shown below.
  • Page 12 Transition Networks, Inc. S3290 Install Guide CONSOLE: RJ-45 serial port 115200 baud CLI port. The S3290 RJ-45 console port allows root access to its CLI (Command Line Interface) via a computer, regardless of the state of the switch (unless it is completely dead).

  • Page 13: Front Panel

    LED2: Speed: Green = 1000Mbs, Yellow = 100Mbs, OFF = 10Mbs PORT 5 & 6 (or PORT 3 - PORT 6 on the S3290-42): Two (or four) SGMII interfaces. The Serial Gigabit Media-independent Interface (SGMII) interfaces can operate at multiple speeds of 100M/1G/2.5G bps.

  • Page 14: Connecting Power

    Power wire connections. Removing the Terminal Block (TB) 1. Loosen the “2” mounting screws that attach the “primary” Terminal Block (TB) to the S3290 chassis. 2. Pull the TB from the S3290 chassis connector as shown below.
  • Page 15 4. Reinstall the Terminal Block into the primary location on the S3290. 5. Tighten the two screws to secure the Terminal Block to the S3290 chassis. 6. Turn the power source ON and observe that the green front panel PWR (power) LED is lit, indicating that power is applied to the S3290.

  • Page 16: Installing Sfp Modules And Fiber Cables

    Transition Networks, Inc. S3290 Install Guide Installing SFP Modules and Fiber Cables Warning Visible and invisible laser radiation when open: DO NOT stare into the beam or view the beam directly with optical instruments. Failure to observe this warning could result in an eye injury or blindness.

  • Page 17: Installing Copper Cables

    Not Connected Not Connected 2. Connect the RJ-45 connector at one end of the cable to the S3290 RJ-45 port. 3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 Ethernet network port. 33594 Rev. D https://www.transition.com...

  • Page 18: Connecting Via The Serial Console / Cli

    Connecting Via the MGMT Port / Web GUI The S3290 supports the current version of most popular Web browsers. See the S3290 Web User Guide or the S3290 CLI Reference manual for details on configuration and management methods. To login using the serial interface (e.g., HyperTerminal) use the setup 115200, 8, none, 1, none.

  • Page 19: Factory Defaults

    ::192.0.2.1 Note: after power up, the S3290 has DHCP enabled. If a DHCP server is available, the S3290 will obtain an IP address from the DHCP server. If no DHCP server is available, after 70 seconds, the S3290 will fall back to the default IP address of 192.168.0.1/24.

  • Page 20: Login Using Telnet

    In the user name field type “admin” (lowercase) and leave the password field empty (no password). Press the Enter key to launch the S3290 web GUI. See the S3290 Web User Guide manual for web GUI configuration, monitoring, diagnostics, and maintainance.

  • Page 21: Switching Mgmt / Port 1 Modes

    Switching MGMT / PORT 1 Modes The S3290 MGMT / PORT 1 is a normal data port, but by default it will be in a separate private VLAN that you can remove. You can enable or disable out-of-band management on Port 1. Port 1 can be optionally configured to support either out-of-band management or it can be used as a normal data UNI/NNI port.

  • Page 22: Troubleshooting

    “Operation” section of the S3290 Web User Guide manual. 8. If you can access the S3290 via PuTTY or HyperTerminal but not via the web interface, in config mode, enter the default keep_ip CLI command and try accessing the S3290 web interface again.
  • Page 23 Transition Networks Tech Support Specialist. 1. Select the S3290 Configuration > System > Information menu path. (From the CLI, use the show commands needed to gather the information below or as requested by the TN Support Specialist).
  • Page 24 S3290 Install Guide The device history (i.e., have you returned the device before, is this a recurring problem, etc.): _________________________________________________________________________________ ________________________________________________________________________________ Any previous Return Material Authorization (RMA) numbers: _______________________________ Serial Label on S3290-24 Bottom 33594 Rev. D https://www.transition.com Page 24 of 30...

  • Page 25: Service, Warranty And Tech Support

    Warranty Five-Year Limited Hardware Warranty Transition Networks warrants to the original consumer or purchaser that each of its S3290 products and all components thereof, will be free from defects in material and/or workmanship for a period of five years from the original factory shipment date.
  • Page 26 All warranty claims are subject to the restrictions and conventions set forth by this document. Transition Networks reserves the right to charge for all testing and shipping incurred, if after testing, a return is classified as "No Problem Found."...

  • Page 27: Compliance Information

    Transition Networks, Inc. S3290 Install Guide Compliance Information Standards CISPR22/EN55022 Class A, CE Mark, and IEC 61850-3 FCC Regulations NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 28: European Regulations

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the ‘Contact Us’...

  • Page 29: Electrical Safety Warnings

    Transition Networks, Inc. S3290 Install Guide Electrical Safety Warnings Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich. Elektrisk sikkerhed VIGTIGT: Dette udstyr skal 29nstallers I overensstemmelse med sikkerhedsadvarslerne.
  • Page 30 10900 Red Circle Drive Minnetonka, MN 55343 USA Tel: 952- 941-7600 or 1-800-526-9267 Fax: 952-941-2322 Copyright© 2014-2016 Transition Networks. All rights reserved. Printed in the U.S.A. S3290 Install Guide 33594 Rev D 33594 Rev. D https://www.transition.com Page 30 of 30...
