Transition Networks SRS4F3111-100 User Manual

SRS4F3xxx-10x
Trademark Notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright Restrictions
© 2004-2015 Transition Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means
- graphic, electronic, or mechanical - without written permission from Transition Networks.
Printed in the U.S.A.
16

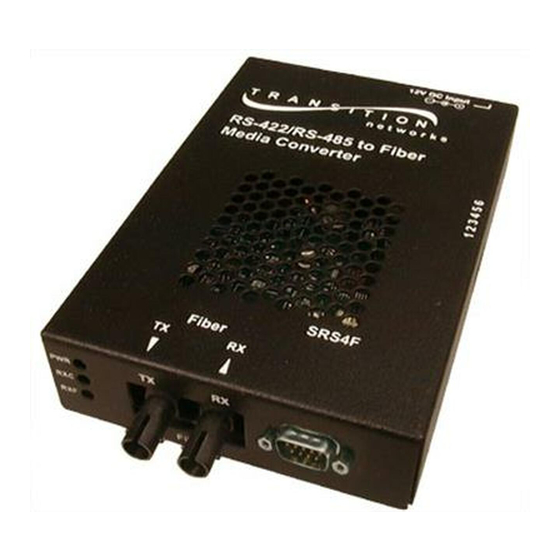

SRS4Fxxxx-10x series media converters connect
RS485/422 copper cable to fiber-optic cable at
asynchronous data rates up to 1.25 Mb/s.
The SRS4F31xx-10x media converters use a male DB-9 port for the copper link:
Part Number
SRS4F3111-100
SRS4F3113-100
SRS4F3114-100
SRS4F3115-100
SRS4F3116-100 (LH) RS485/422
SRS4F3117-100 (LW) RS485/422
* Maximum cable distance is 1200m (4000 ft) @ <90 kb/s decreasing logarithmically to
92m (300 ft) @ 500 kb/s.
**Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
33281.G
USER'S GUIDE
SRS4Fxxxx-10x
Stand-Alone Media Converter
RS485/422 Copper to Fiber
SRS4F31xx-10x
Transition
Networks
Port One - Copper Port Two - Fiber-Optic
DB-9 port
RS485/422 ST, 1300 nm multimode
1200 m (4000 ft)* 2 km (1.2 miles)**
RS485/422 SC, 1300 nm multimode
1200 m (4000 ft)* 2 km (1.2 miles)**
RS485/422 SC, 1310 nm single mode
1200 m (4000 ft)* 20 km (12.4 miles)**
RS485/422 SC, 1310 nm single mode
1200 m (4000 ft)* 40 km (24.8 miles)**
SC, 1310 nm single mode
1200 m (4000 ft)* 60 km (37.3 miles)**
SC, 1550 nm single mode
1200 m (4000 ft)* 80 km (49.7 miles)**
Installation . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . .12
Declaration of Conformity . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15
SRS4F32xx-10x
