Operation

Status LEDs

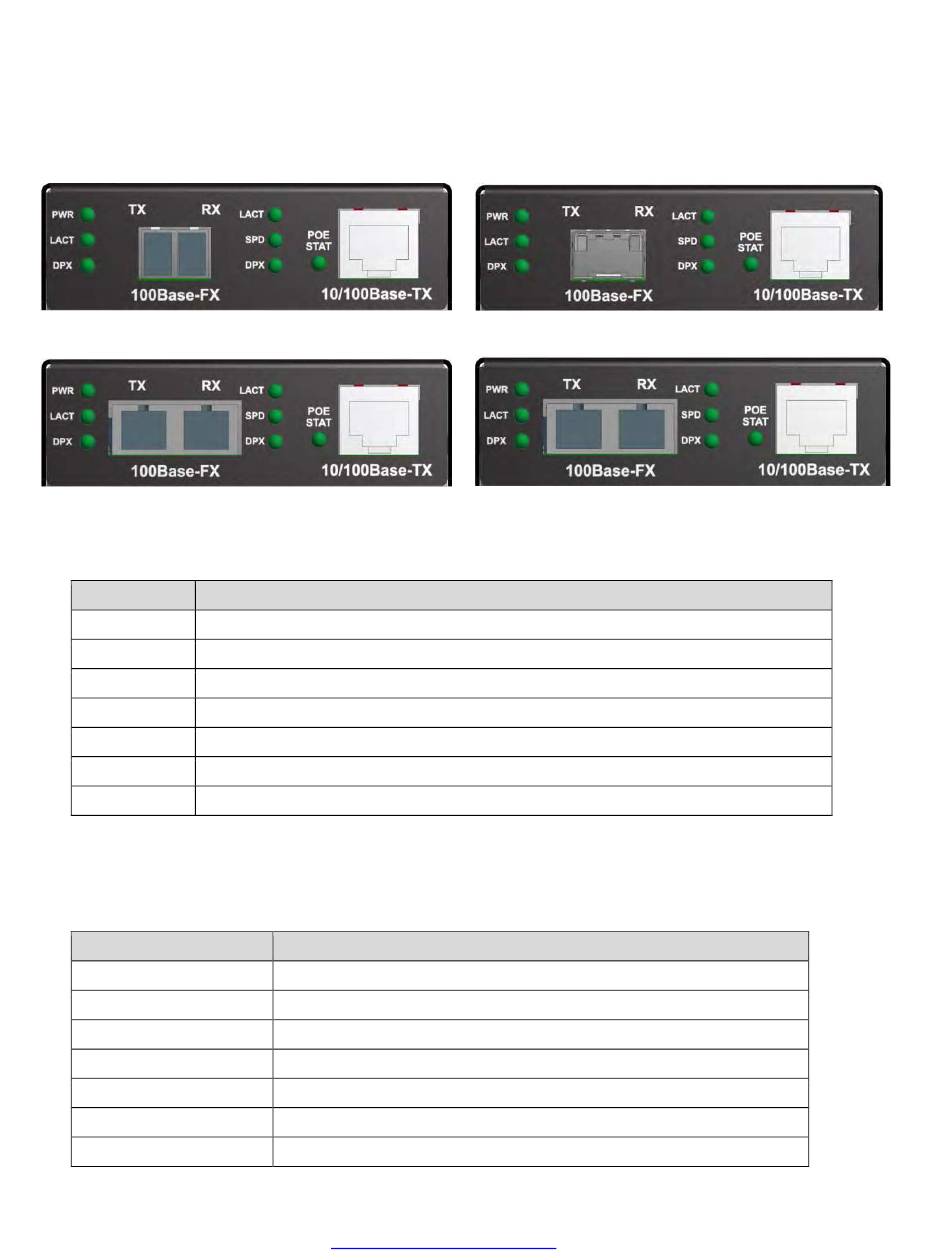

The SPOEB10xx-105 front panels are shown below.
SPOEB1039-105
SPOEB1011-105
The SPOEB10xx-105 front panel LEDs are described below.
LED
PWR
Device Power. Green = Power ON.
LACT (fiber)
Fiber Link Activity. Green: ON = Link, Blinking = activity.
DPX (fiber)
Fiber Duplex mode. Green: ON = Full, OFF = Half.
LACT (TP)
TP Link Activity. Green: ON = Link, Blinking = activity.
SPD (TP)
TP Speed. Green: ON = 100Mb/s, OFF = 10Mb/s.
DPX (TP)
TP Duplex mode. Green: ON = Full, OFF = Half, Blinking = collision.
POE STAT
Power over Ethernet State. Green: ON = Enabled, OFF = Disabled.
LACT = Link Activity. DPX = Duplex. SPD = Speed. TP = Twisted Pair. LTC = PoE controller.

PoE Status LED Scheme

The PoE controller component provides the following LED reporting:
LED Condition
LED Off
LED Off
LED On
1 Flash
2 Flashes
5 Flashes
9 Flashes
33618 Rev. C
Non-Powered Device: 0 ohms < RPORT < 200 ohms.
Port Open: RPORT > 1M ohms.
Port On: 25k ohms.
Low Signature Resistance: 300
High Signature Resistance: 33k
Port Overload Fault.
Power Management: Allocation Exceeded.
https://www.transition.com/
SPOEB1040-105
SPOEB1013-105
Description
Meaning
ohms < RPORT < 15k ohms.
ohms < RPORT < 500k
SPOEB10xx-105 User Guide
ohms.
