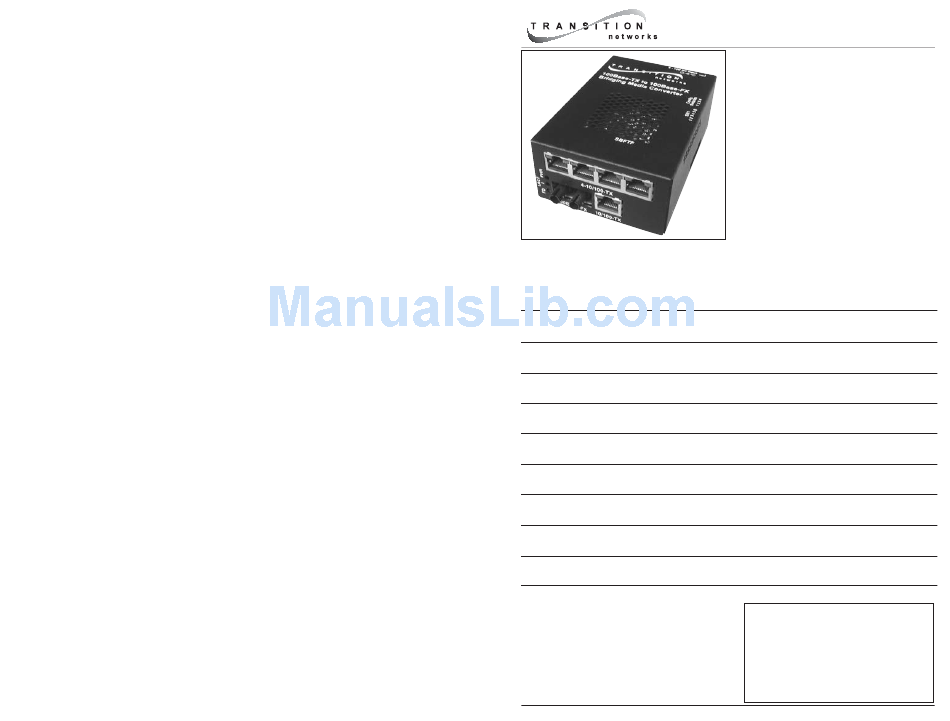

Transition Networks SBFTF1011-120 User Manual

Stand-alone media converter

Advertisement

Quick Links

The SBFTF10xx-12x 6-port Ethernet/fast Ethernet bridging media converter allows
connection of 10Base-T Ethernet and/or 100Base-TX fast Ethernet twisted-pair
copper network devices to network devices on a 100Base-FX fast Ethernet fiber
network.
Part Number
Copper - five (5) ports
10Base-T/100Base-TX
SBFTF1011-120
RJ-45
100 m (328 ft)*
SBFTF1013-120
RJ-45
100 m (328 ft)*
SBFTF1014-120
RJ-45
100 m (328 ft)*
SBFTF1015-120
RJ-45
(long haul)
100 m (328 ft)*
SBFTF1016-120
RJ-45
(extra long haul)
100 m (328 ft)*
SBFTF1017-120
RJ-45
(long wave length)
100 m (328 ft)*
SBFTF1018-120
RJ-45
100 m (328 ft)*
SBFTF1025-120
RJ-45
100 m (328 ft)*
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network.
User's Guide
SBFTF10xx-12x
Stand-Alone Media Converter
Copper to Fiber
10/100 Bridging 6-Port
(5 copper / 1 fiber)
10/100Base-TX to 100Base-FX
Duplex Fiber-Optic - one (1) port
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1310 nm single mode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . .11
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SBFTF1011-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks SBFTF1011-120

  • Page 1 100Base-FX fast Ethernet fiber network. Part Number Copper - five (5) ports Duplex Fiber-Optic - one (1) port 10Base-T/100Base-TX 100Base-FX SBFTF1011-120 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* SBFTF1013-120 RJ-45...
  • Page 2: Installation

    SBFTF10xx-12x Part Number Copper - five (5) ports Fiber-Optic - one (1) port 10Base-T/100Base-TX Single Fiber SBFTF1029-120 RJ-45 SC, 1310 nm (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles SBFTF1029-121 RJ-45 SC, 1550 nm (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* SBFTF1029-122 RJ-45...
  • Page 3 SBFTF10xx-12x Installation -- Continued Set the Dip Switches -- Continued NOTE: Dip switch 4 (in the “SW” set) applies to fiber port 1 (F1). 4. Fiber Mode (Fiber Port 1) Up (Full-Duplex) - The cable distances for fiber port 1 (F1) are constrained by the cable requirements (see pages 1 and 2).
  • Page 4: Connect The Fiber Cable

    NOTE: The external power supply provided with this product is UL listed by the power supply’s manufacturer. Consult the user’s guide for the Transition Networks SPS1872-xx DC external power supply for powering the media converter. techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
  • Page 5: Operation

    (BT) of a particular collision domain. If the result is less than or equal to 512 BT, the path is good. For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition Networks website at: www.transition.com. Distance Extension...
  • Page 6: Cable Specifications

    The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: single mode fiber (recommended): Multimode fiber (recommended): Multimode fiber (optional): SBFTF1011-120 SBFTF1013-120 Fiber Optic Transmitter Power: Fiber Optic Receiver Sensitivity: Link Budget: SBFTF1014-120 Fiber-optic Transmitter Power:...
  • Page 7: Copper Cable

    Optional DIN Rail Mount Bracket; Length: 5.0in. (127mm) WMBD-F Optional DIN Rail Mount Bracket (flat); Length: 3.3in. (84mm) 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 Technical Specifications For use with Transition Networks Model SBFTF10xx-12x or equivalent. Standards Data Rate Dimensions Weight...
  • Page 8: Troubleshooting

    SBFTF10xx-12x Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the power LED on the media converter illuminated? • Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? (See “Power Supply”...
  • Page 9 1-800-260-1312 International: 00-1-952-941-7600 Transition Now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-Based Seminars Transition Networks provides seminars via live web-based training. Log onto www.transition.com and click the Learning Center link.
