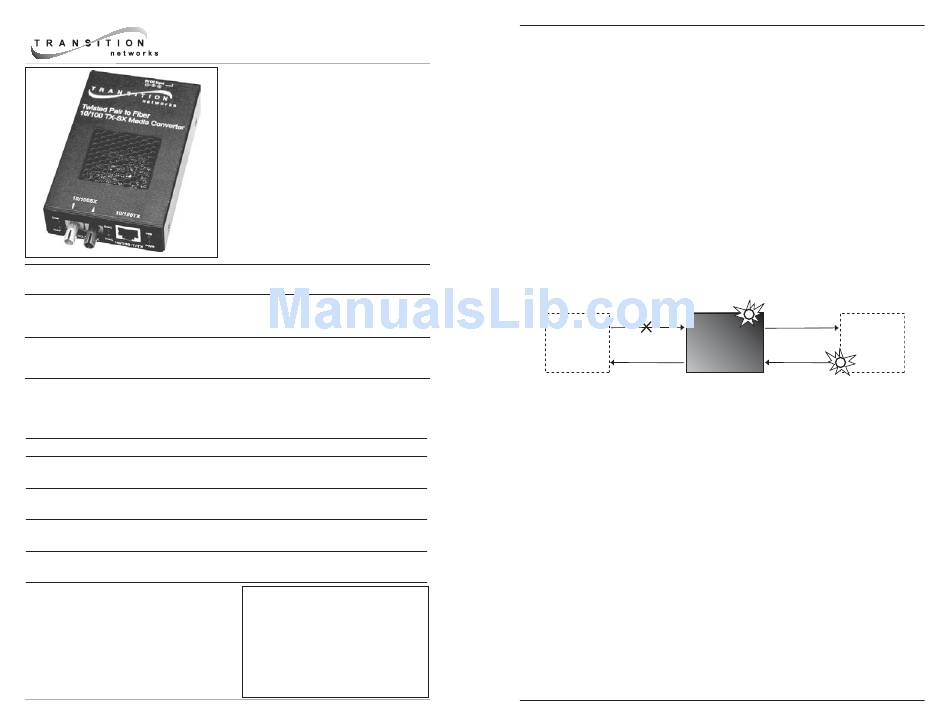

Transition Networks SSETF10XX-200 User Manual

Part Number Port One - Copper
10Base-T/100Base-TX
SSETF1011-200 RJ-45
100 m (328 ft)*
SSETF1013-200 RJ-45
100 m (328 ft)*
* Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network installation.)
Optional Accessories (sold separately)
Part Number Description
E-MCR-03 12-Slot Media Converter Rack (includes universal internal power
supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)
WMBP Optional Wall Mount Brackets
Length: 5.0 in (127 mm) Fits converter length: 4.716 in. (120 m)
SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone Wide-
Input; Output: 12.6VDC, 1.0 A
SPS-1872-PS Optional External Power Supply; 18-72VDC Piggy-Back Wide-
Input; Output: 12.6VDC, 1.0 A
USER'S GUIDE

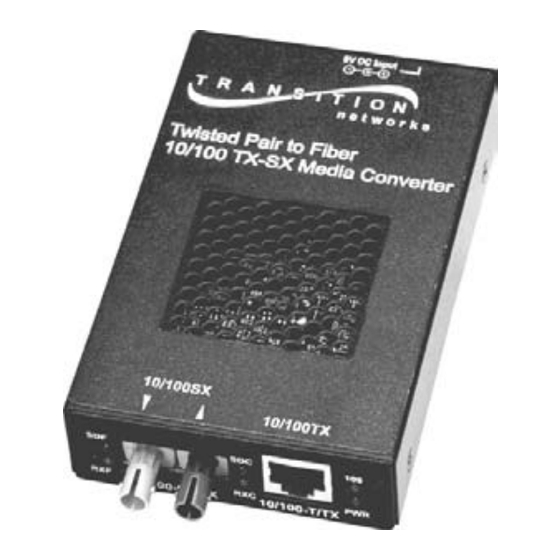

SSETF10xx-200
Stand-Alone Media Converter
• Ethernet™ and Fast Ethernet™
• 10Base-T / 100Base-TX to
10Base-FL / Base-SX
TRANSITION Networks SSETF10xx-200
series Ethernet™ and Fast Ethernet™
Media Converters connect 10Base-T or
100Base TX shielded or unshielded
twisted-pair copper cable to 10Base-FL or
100Base-SX fiber-optic cable.
Port Two - Fiber-Optic
10Base-FL/100Base-SX
ST, 850 nm multimode
2 km (1.2 mi)* @ 10 Mb/s
300 m (980 ft)* @ 100 Mb/s
SC, 850 nm multimode
2 km (1.2 mi)* @ 10 Mb/s
300 m (980 ft)* @ 100 Mb/s
Installation . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .5
Technical Specifications . . . . . . . .6
Half-Duplex Network . . . . . . . . . .7
Fault Isolation and Correction . . .8
Contact Us . . . . . . . . . . . . . . . . .10
Compliance Information . . . . . . .11
SSETF10xx-200
Product Features
Full-Duplex / Half-Duplex
The SSETF10xx-200 receives and transmits network signals in either full-
duplex or half-duplex mode (depending upon the network devices to which
the Media Converter is attached).
Fast Ethernet™ in full-duplex mode allows the maximum cable distances
listed on page 1.
Fast Ethernet™ in half-duplex mode requires attention to the 512-bit Rule
(See page 7).
LinkAlert
The SSETF10xx-200 series Media Converter LinkAlert™ feature allows the
Media Converter to pass 10Base-T/100Base-TX-side link faults over the link to
the 10Base-T/100Base-SX side and to pass 10Base-FL/100Base-SX-side link
faults over the link to the 10Base-FL/100Base-TX side.
If the SSETF10xx-200 Media Converter does not detect a good link on the
10Base-T/100Base-TX side, the Media Converter disables all transmission
(including active-idle) on the 10Base-FL/100Base-SX side.
10Base-T or
Media Converter
100Bas-TX
Device
AutoCross*
The AutoCross™ feature allows either straight-through (MDI) or crossover
(MDI-X) cables to be used when connecting to 10Base-T or to 100Base-TX
devices, such as hubs, transceivers, or network interface cards (NICs).
AutoCross determines the characteristics of the cable connection and
automatically configures the unit to link up, regardless of the cable
configuration.
Auto-Negotiation*
The SSETF10xx-200 series Media Converter Auto-Negotiation™ feature
allows the Media Converter to be used with 10Base-T, 100Base-TX, 10Base-
FL and 100Base-SX ports. Using Auto-Negotiation, the Media Converter brings
up the copper and fiber links in the highest speed and mode possible for all
the attached network devices.
NOTE: The SSETF10xx-200 series Media Converter does NOT support rate
conversion between 10Mb/s and 100Mb/s network devices.
*Requires no operator intervention.
2
Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)
10Base-FL or
100Base-SX
Device
LINK FAULT INDICATION
