COMPLIANCE INFORMATION
UL Listed
C-UL Listed (Canada)
CISPR22/EN55022 Class A + EN55204
CE Mark
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the
interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus
set out on the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la class A prescrites dans le Règlement sur le
brouillage radioélectrique édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb
dieses Gerätes Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für
entsprechende Gegenmaßnahmen werantwortlich ist.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer
des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures
spécifiques appropriées.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-
Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der
Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über
Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer
Konformität.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright Restrictions
© 2003 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any
means - graphic, electronic, or mechanical - without written permission from TRANSITION
Networks.
Printed in the U.S.A.
12
T1/E1 Twisted-Pair Copper

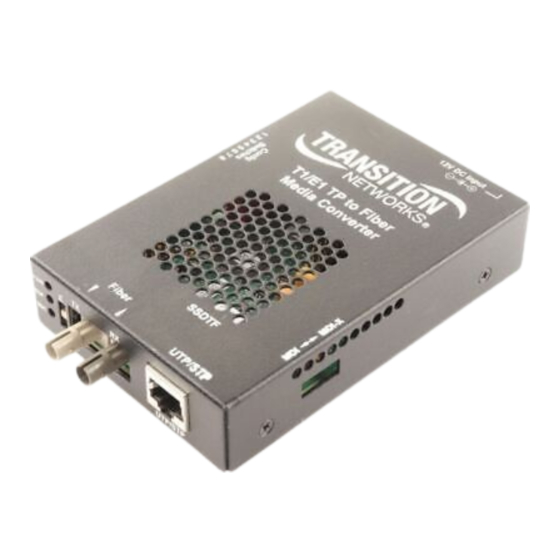

TRANSITION Networks SSDTF10xx-105 series media converters, encode and
decode T1 or E1 twisted-pair copper signals over duplex fiber-optic cable to extend
the distance and transmission reliability of high speed T1 or E1 data traffic. The
media converters are framing independent (as ESF vs. D4) and support all common
line codes (as AMI, B8ZS, HDB3).
SSDTF1011-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and a set
of RX/TX ST connectors to 850 nm
multimode duplex fiber-optic cable.
SSDTF1012-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX ST connector to 1300 nm
singlemode duplex fiber-optic cable.
SSDTF1013-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX SC connector to 850 nm
multimode duplex fiber-optic cable.
SSDTF1014-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX SC-SM connector to 1300 nm
singlemode duplex fiber-optic cable.
SSDTF1015-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX SC-LH connector to 1300 nm
singlemode duplex fiber-optic cable.
SSDTF1016-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX SC connector to 1300 nm
singlemode duplex fiber-optic cable.
33246.B
Media Converters
SSDTF10xx-105
USER'S GUIDE
SSDTF1017-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX SC connector to 1550 nm
singlemode duplex fiber-optic cable.
SSDTF1018-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX MT-RJ connector to 1300 nm
multimode duplex fiber-optic cable.
SSDTF1022-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and a set
of RX/TX ST connectors to 1300 nm
singlemode duplex fiber-optic cable.
SSDTF1025-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX MT-RJ connector to 1300 nm
singlemode duplex fiber-optic cable.
SSDTF1027-105
Provides an RJ-45 twisted-pair copper
connector for T1 or E1 signals and an
RX/TX ST connector to 1300 nm
multimode duplex fiber-optic cable.
SSDTF10xx-105 in the Network . . . .2
Installation . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . .7
Fault Isolation and Correction . . . . .8
Cable Specifications . . . . . . . . . . . . .9
Technical Specifications . . . . . . . . .11
Compliance Information . . . . . . . . .12
Fiber
to
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SSDTF10 Series
Summary of Contents for Transition Networks SSDTF10 Series
-
Page 1: Compliance Information
This equipment generates, uses, and can radiate radio frequency energy and, if TRANSITION Networks SSDTF10xx-105 series media converters, encode and not installed and used in accordance with the instruction manual, may cause harmful decode T1 or E1 twisted-pair copper signals over duplex fiber-optic cable to extend interference to radio communications. -
Page 2: Technical Specifications
EN 55022:1994; EN 55024:1998; FCC Part 15 Class A; EN 60950 A4:1997; UL 1950 SSDTF10xx-105 media converter, a CSDTF10xx slide-in-module media converter, or with a previous model TRANSITION Networks T1/E1 media I, the undersigned, hereby declare that the equipment specified above conforms to the above converter, such as a C/T1E1-CF-01 or a T1E1-CF-01. -
Page 3: Cable Specifications
CABLE SPECIFICATIONS Dry-Contact Relay -- Fiber Cable RJ-45 dry-contact relay opens if power, Fiber Optic Cable Recommended: 62.5 / 125 µm multimode fiber signal detect/copper or signal detect/fiber Optional: 100 / 140, 85 / 125, 50 / 125 µm multimode fiber are lost. - Page 4 INSTALLATION -- Continued • Verify local fiber connection by starting a remote fiber loopback (setting the loopback switch on the remote media converter to fiber, Set 3-Position Hardware/Software Mode Jumper if in hardware mode, or entering the remote fiber loopback NOTE: Jumper is located inside the Media Converter on the circuit board.
-
Page 5: Fault Isolation And Correction
FAULT ISOLATION and CORRECTION NOTE: T1 must be selected ( LEFT SWITCH #4 UP) for If the media converter fails, isolate and correct the failure by determining the RIGHT SWITCH SET have any effect. answers to the following questions and then taking the indicated action: If E1 is selected ( Is the P(o)W(e)R LED on the media converter illuminated? LEFT SWITCH SET... -
Page 6: Operation
INSTALLATION OPERATION (continued) Install Cable After installation, the media converter should function without operator intervention. COPPER Status LEDs T1 100 OHM (RJ-45 CONNECTOR) Locate or build twisted-pair cables that are compliant with Use the status LEDs to monitor media converter operation in the network. specifications on page 9, with RJ-45 plug connectors at both ends.
