User's Guide
SBFTF10xx-10x

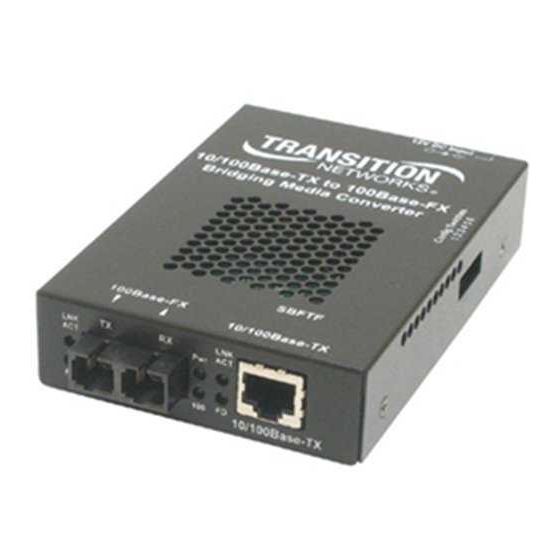

Stand Alone Media Converter
•
•
•
The SBFTF10xx-10x 2-port Ethernet/fast Ethernet
bridging media converter connects 10Base-T
Ethernet or 100Base-TX fast Ethernet twisted-pair
copper network devices to network devices on a
100Base-FX fast Ethernet fiber network.
Part Number
Port One - Copper
10Base-T/100Base-TX
SBFTF1011-100
RJ-45
100 m (328 ft)*
SBFTF1013-100
RJ-45
100 m (328 ft)*
SBFTF1014-100
RJ-45
100 m (328 ft)*
SBFTF1015-100
RJ-45
(long haul)
100 m (328 ft)*
SBFTF1016-100
RJ-45
(extra long haul)
100 m (328 ft)*
SBFTF1017-100
RJ-45
(long wave length)
100 m (328 ft)*
SBFTF1018-100
RJ-45
100 m (328 ft)*
SBFTF1019-100
RJ-45
100 m (328 ft)*
*Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network installation.
The chassis version of the media converter
is CBFTF10xx-10x. For more information,
see the CBFTF10xx-10x user's guide on-
line at: www.transition.com.
Copper to Fiber
10/100 Bridging (2-Port)
10/100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
LC, 1310 nm single mode
20 km (12.4 miles*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Half-Duplex Network . . . . . . . . . .9
Cable Specifications . . . . . . . . . .11
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .13
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SBFTF10XX-10X
Summary of Contents for Transition Networks SBFTF10XX-10X
- Page 1 Copper to Fiber • 10/100 Bridging (2-Port) • 10/100Base-TX to 100Base-FX The SBFTF10xx-10x 2-port Ethernet/fast Ethernet bridging media converter connects 10Base-T Ethernet or 100Base-TX fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX fast Ethernet fiber network.
-
Page 2: Installation
SBFTF10xx-10x Part Number Port One - Copper Port Two - Simplex Fiber-Optic SBFTF1029-100 ** RJ-45 SC, 1310 nm (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* SBFTF1029-101 ** RJ-45 SC, 1550 nm (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)*... - Page 3 Verify that the media converter is powered by observing the illuminated LED power indicator light. Consult the user’s guide for the Transition Networks SPS1872-xx DC external power supply for powering the media converter. techsupport@transition.com -- Click the “Transition Now” link for a live Web chat.
-
Page 4: Operation
100Base-FX fast Ethernet fiber network. Auto-Negotiation The Auto-Negotiation feature allows the SBFTF10xx-10x media converter to automatically configure itself to achieve the best possible mode of operation over a link. The media converter broadcasts its speed (10 Mb/s or 100 Mb/s) and duplex capabilities (full or half) to the other devices and negotiates the best mode of operation. -
Page 5: Half-Duplex Network
100Base-TX copper fast Ethernet and 100Base-FX fiber fast Ethernet collision domains. In a half-duplex Ethernet or fast Ethernet environment, the SBFTF10xx-10x media converter extends network distances by segmenting collision domains so that the 5-Segment Rule (see page 10) or the 512-Bit Rule (see pages 9 and 10) applies separately to each collision domain. -
Page 6: Cable Specifications
A collision domain is the longest path in a 10Base-T network between any two terminal devices, e.g. a terminal, switch, or router. The SBFTF10xx-10x media converter is also a terminal device. A segment is a cable connection between any two network interfaces within a collision domain. -
Page 7: Technical Specifications
Twisted Pair #1 Twisted Pair #1 Twisted Pair #2 Twisted Pair #2 24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600 Technical Specifications For use with Transition Networks Model SBFTF10xx-10x or equivalent. Standards Data Rate max: -6.0 dBm Dimensions max: -3.0 dBm... -
Page 8: Compliance Information
SBFTF10xx-10x Troubleshooting -- Continued Is the “Duplex/Link” LED illuminated on the twisted-pair copper port? • Check the copper cables for proper connection. • Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600. • Amber = The media converter has selected half-duplex mode. •... - Page 9 SBFTF1035-100,SBFTF1039-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SBFTF10xx-10x to which this declaration refers is in conformity with the following standards. CISPR 22:1993; EN 55022:1998 Class A; EN 55024:1998; FCC Part 15 Subpart B; CFR 21 subpart J; EN 61000-3-2:1995 + A14:2000; EN61000-3-3:1995 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
