USER'S GUIDE
SRS4Fxxxx-100
Stand-Alone Media Converter
RS-485/422 Copper to Fiber
SRS4F31xx-100
Transition
N e t w o r k s

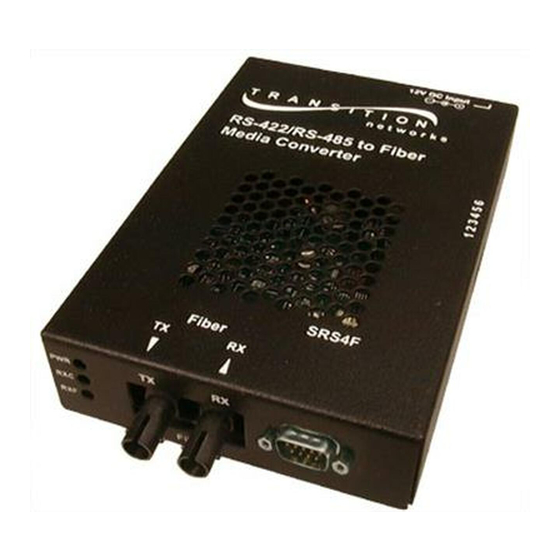

SRS4Fxxxx-100 series media converters connect
RS-485/422 copper cable to fiber-optic cable at
asynchronous data rates up to 1.25 Mb/s.
The SRS4F31xx-100 media converters use a male DB-9 port for the copper link:
Part Number
Port One - Copper
DB-9 port
SRS4F3111-100
RS-485/422
1200 m (4000 ft)*
SRS4F3113-100
RS-485/422
1200 m (4000 ft)*
SRS4F3114-100
RS-485/422
1200 m (4000 ft)*
SRS4F3115-100
RS-485/422
1200 m (4000 ft)*
SRS4F3116-100 (LX) RS-485/422
1200 m (4000 ft)*
SRS4F3117-100 (LH) RS-485/422
1200 m (4000 ft)*
* Maximum cable distance is 1200m (4000') @ <90 kb/s decreasing logarithmically to
92m (300') @ 500 kb/s.
**Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
SRS4F32xx-100
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)**
SC, 1300 nm multimode
2 km (1.2 miles)**
SC, 1310 nm single mode
20 km (12.4 miles)**
SC, 1310 nm single mode
40 km (24.8 miles)**
SC, 1310 nm single mode
60 km (37.3 miles)**
SC, 1550 nm single mode
80 km (49.7 miles)**
Installation . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .7
Cable Specifications . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . .12
Declaration of Conformity . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15
Advertisement
Table of Contents
Related Manuals for Transition Networks SRS4F3111-100
Summary of Contents for Transition Networks SRS4F3111-100

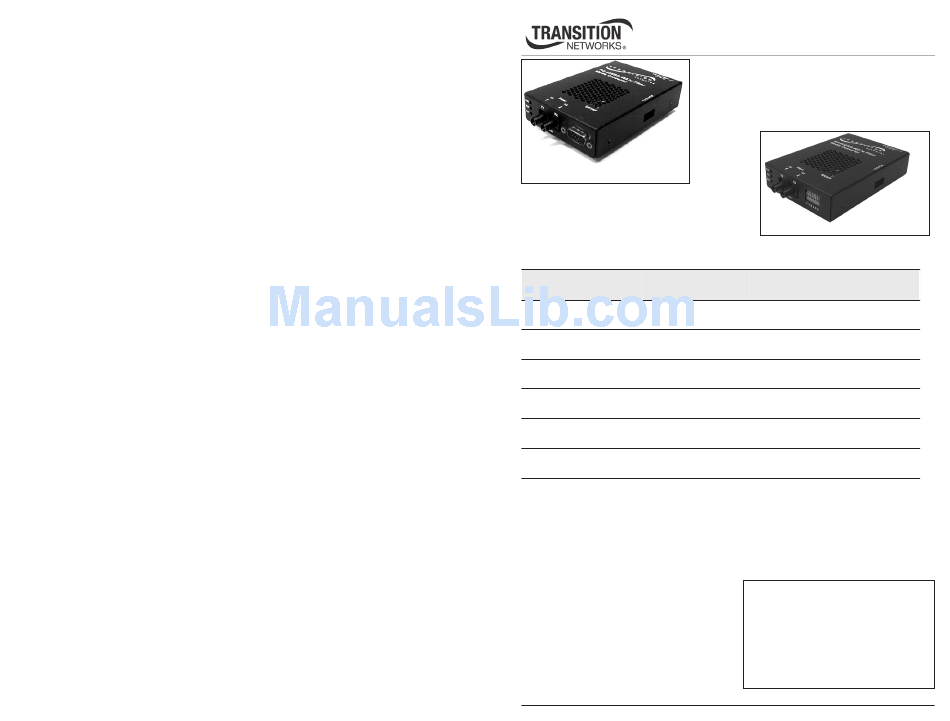

- Page 1 SRS4Fxxxx-100 series media converters connect RS-485/422 copper cable to fiber-optic cable at asynchronous data rates up to 1.25 Mb/s. The SRS4F31xx-100 media converters use a male DB-9 port for the copper link: Part Number Port One - Copper Port Two - Fiber-Optic...
-
Page 2: Installation
CRS4Fxxxx-10x The CRS4F3129-100 media converters use a male DB-9 port for the copper link: Part Number Part One - Copper Port Two - Fiber Optic DB-9 Port CRS4F3129-100 RS-485 SC, 1310TX/1550RX nm, single mode 1200 m (4000 ft)* 20 km (12.4 miles)**... - Page 3 SRS4Fxxxx-100 Installation -- Continued Set the 6-Position Switch -- continued Switch 2 - 130 ohm resistor on “transmit” = Disable. down = Enable. (Switch 5 must also be set to “2-wire” (up).) When enabled, switch 2 inserts a 130 ohm resistor on the wire pair: •...
-
Page 4: Operation
SRS4Fxxxx-100 Installation -- Continued Install the Fiber Cable Locate or build fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the SRS4Fxxxx-100 media converter as described: • Connect the male TX cable connector to the female TX port. •... -
Page 5: Cable Specifications
<10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm SRS4F3111-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB... -
Page 6: Technical Specifications
SRS2F26xx-100 Cable Specifications -- Continued SRS4F3129-100 1310TX/1550TR nm single mode SRS4F3129-101 1550TX/1310TR nm single mode Fiber Optic Transmitter Power: min: -13.0 dBm Fiber Optic Receiver Sensitivity: min: -32.0 dBm Link Budget: 19.0 dB SRS4F3129-102 1310TX/1550TR nm single mode SRS4F3129-103 1550TX/1310TR nm single mode Fiber Optic Transmitter Power: min: -8.0 dBm Fiber Optic Receiver Sensitivity:... -
Page 7: Troubleshooting
Declaration of Conformity Name of Mfg: Transition Networks 10900 Red Circle Drive, MinneatonkaMN 55343 U.S.A. Model: SRS4Fxxxx-10x Series Media Converter Part Number: SRS4F3111-100, SRS4F3113-100, SRS4F3114-100, SRS4F3115-100, SRS4F3211-100, SRS4F3213-100, SRS4F3214-100, SRS4F3215-100, SRS4F3129-100, SRS4F3129-101, SRS4F3129-102, SRS4F3129-103, SRS4F3229-100, SRS4F3229-101, SRS4F3229-102, SRS4F3229-103 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the SRS4Fxxxx-10x to which this declaration refers is in conformity with the following standards. -
Page 8: Compliance Information
SRS4Fxxxx-100 Contact Us Technical Support Technical support is available 24 hours a day. US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Transition Now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-Based Seminars Transition Networks provides seminars via live web-based training. - Page 9 SRS2F26xx-100 Trademark Notice All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2004-2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
