5
SET MODE

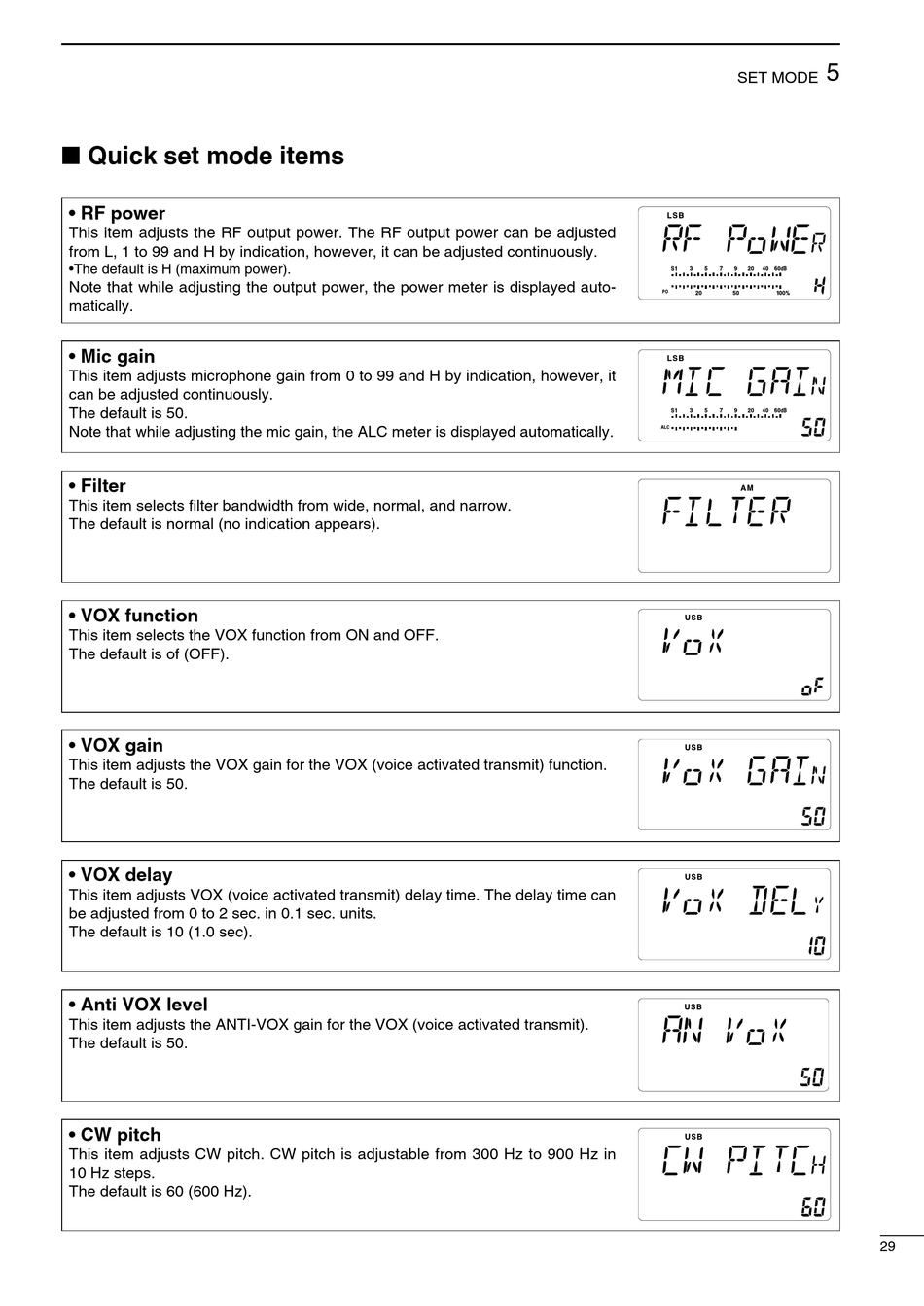

n Quick set mode items
• RF power
This item adjusts the RF output power. The RF output power can be adjusted
from L, 1 to 99 and H by indication, however, it can be adjusted continuously.
•The default is H (maximum power).
Note that while adjusting the output power, the power meter is displayed auto-
matically.
• Mic gain
This item adjusts microphone gain from 0 to 99 and H by indication, however, it
can be adjusted continuously.
The default is 50.
Note that while adjusting the mic gain, the ALC meter is displayed automatically.
• Filter
This item selects filter bandwidth from wide, normal, and narrow.
The default is normal (no indication appears).
• VOX function
This item selects the VOX function from ON and OFF.
The default is of (OFF).
• VOX gain
This item adjusts the VOX gain for the VOX (voice activated transmit) function.
The default is 50.
• VOX delay
This item adjusts VOX (voice activated transmit) delay time. The delay time can
be adjusted from 0 to 2 sec. in 0.1 sec. units.
The default is 10 (1.0 sec).
• Anti VOX level
This item adjusts the ANTI-VOX gain for the VOX (voice activated transmit).
The default is 50.
• CW pitch
This item adjusts CW pitch. CW pitch is adjustable from 300 Hz to 900 Hz in
10 Hz steps.
The default is 60 (600 Hz).
29
