CBFTF10xx-11x
Cable Specifications

Copper Cable

Category 3:
(Minimum requirement for 10 Mb/s operation)
Gauge
Attenuation
Maximum Cable Distance
Category 5:
(Minimum requirement for 100 Mb/s operation)
Gauge
Attenuation
Maximum Cable Distance
• Straight-through or crossover twisted-pair cable may be used.
• Shielded (STP) or unshielded (UTP) twisted-pair cable may be used.
• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .
• Use only dedicated wire pairs for the active pins:
(e.g., blue/white & white/blue, orange/white & white/orange, etc.)
• Do not use flat or silver satin wire.

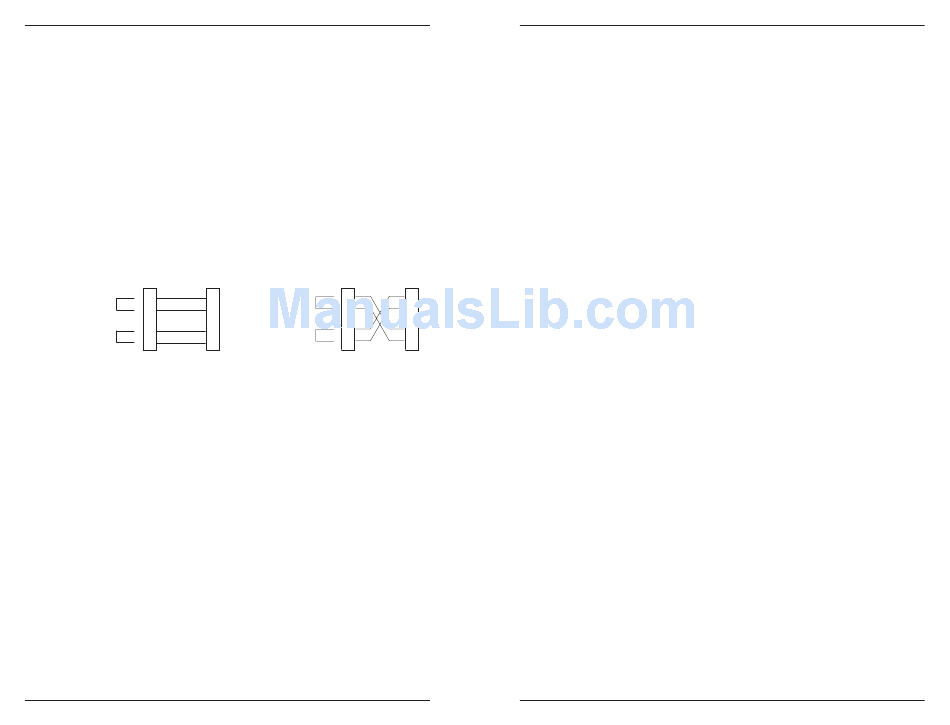

Straight-Through Cable
1
Twisted Pair #1
2
3
Twisted Pair #2
6
SNMP
Use SNMP at an attached terminal or at a remote location to monitor the
media converter by monitoring:
• Media converter power
• Copper link and fiber link status
• Copper port speed
• Hardware switch settings
Also, use SNMP to enter network commands that:
• Enable/disable Auto-Negotiation on copper
• Force 10Mb/s or 100Mb/s on copper
• Force full-duplex or half-duplex on copper and/or fiber
• Enable/disable pause and source address change
• Enable/disable monitor port (advanced filters available)
• Select advertised modes (when Auto-Negotiation is enabled)
See the on-line documentation that comes with Transition Networks
FocalPoint™ software for applicable commands and usage at
www.transition.com
12
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
-- Continued
24 to 22 AWG
11.5 dB/100m @ 5-10 MHz
100 meters
24 to 22 AWG
22.0 dB /100m @ 100 MHz
100 meters
Crossover Cable
1 1
Twisted Pair #1
2 2
3
3
Twisted Pair #2
6
6

Technical Specifications

For use with Transition Networks Model CBFTF10xx-11x or equivalent.
Standards
Data Rate
Dimensions
Weight
Power Consumption
MTBF
Packet Size:
Environment
1
Warranty
2
* Manufacturer's rated ambient temperature: Tmra range for this slide-in-module
3
depends on the physical characteristics and the installation configuration of the
6
Transition Networks PointSystem™ chassis in which this slide-in-module will
be installed.
The information in this user's guide is subject to change. For the most up-to-date
information, view the user's guide on-line at: www.transition.com.
Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,
Subchapter J applicable at the date of manufacture.
CAUTION: Visible and invisible laser radiation when open. Do not stare into the
beam or view directly with optical instruments.
CAUTION: Use of controls, adjustments or the performance of procedures other
than those specified herein may result in hazardous radiation exposure.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
IEEE 802.3™
10 Mb/s, 100 Mb/s
3.4" x 0.87" x 5.0" (86 x 22 x 182 mm)
3 oz. (91 g) (approximate)
4.95 watts
426,000 hours (MIL217F2 V5.0) (MIL-HDBD-217F)
1,326,000 hours (Bellcore7 V5.0)
Memory: 256K bytes (2 Mbit)
Unicast MAC addresses: 4K
Maximum packet size: 1536 bytes
Tmra*: 0 to 50°C (32 to 122°F )
Storage Temp: -20 to 85°C (-4 to 185°F)
Humidity: 5 to 95%, non condensing
Altitude: 0 to 10,000 feet
Lifetime
