installed in pairs. For example, install one C4TEF1011-100 as the local media
converter and another C4TEF1011-100 as the remote media converter.
All C4TEF10xx-10x models have the following copper connectors:
Connector Type
Number
RS-232
one (1)
T1
four (4)
The various fiber connectors are available on separate models. Both duplex and
single mode fiber optic converters are available:
Part Number
Duplex Fiber-Optic - 100Base-FX
C4TEF1011-100
ST, 1300 nm multimode, 2 km (1.2 miles)*
C4TEF1013-100
SC, 1300 nm multimode, 2 km (1.2 miles)*
C4TEF1014-100
SC, 1310 nm single mode, 20 km (12.4 miles)*
C4TEF1015-100
SC, 1310 nm single mode, 40 km (24.8 miles)*
C4TEF1016-100
SC, 1310 nm single mode, 60 km (37.2 miles)*
C4TEF1017-100
SC, 1550 nm single mode, 80 km (49.7 miles)*
C4TEF1018-100
MT-RJ, 1300 nm multimode, 2 km (1.2 miles)*
C4TEF1029-10x
(single mode, single-fiber models are listed on page 2)
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network.
The stand-alone version of the media
converter is S4TEF10xx-10x. For more
information, see the user's guide on-
line at: www.transition.com.

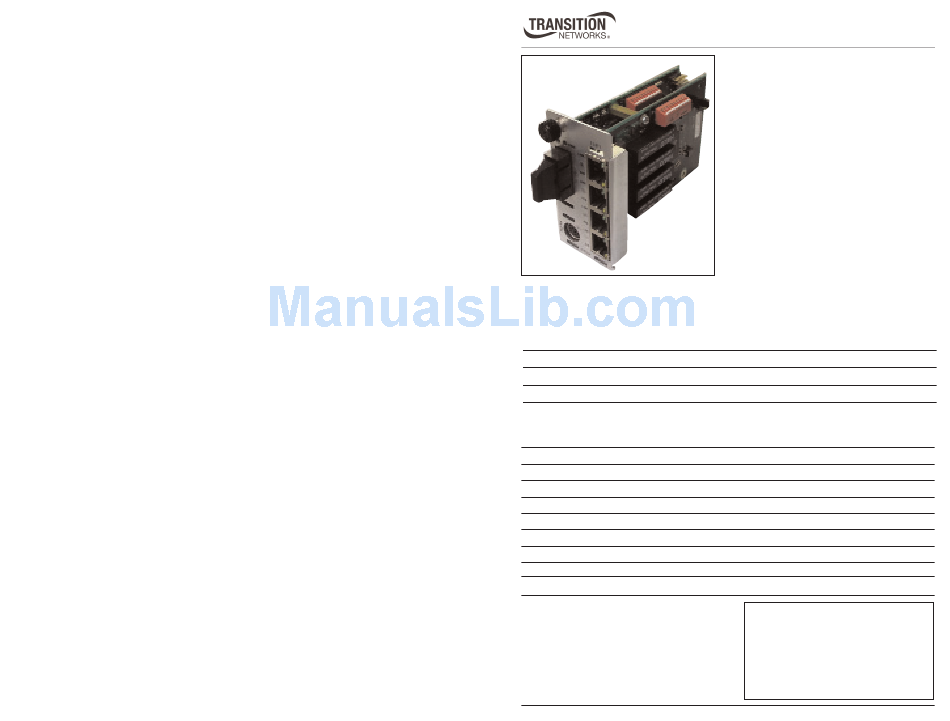

User's Guide
C4TEF10xx-10x
Slide-in-Module Media Converter
•
RS-232 to Fiber
•
(4) T1/E1 to Fiber
The C4TEF10xx-10x media converter is
designed to be installed into a Transition
Networks PointSystem™ chassis and can
extend signals from an RS-232 data port
and up to four (4) T1/E1 network ports
over fiber. The RS-232 and T1/E1
interfaces are independent of each other
and the signals from these ports can be
sent
over
the
fiber
interface
simultaneously.
The C4TEF10xx-10x is designed to be
Description
6-pin, DIN serial, 3.2 m (10 ft.)*
RJ-48
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . .10
Cable Specifications . . . . . . . . . .12
Technical Specifications . . . . . . .14
Troubleshooting . . . . . . . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .18
Compliance Information . . . . . . .19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks C4TEF1011-100
Summary of Contents for Transition Networks C4TEF1011-100
-
Page 1: Table Of Contents
The C4TEF10xx-10x is designed to be installed in pairs. For example, install one C4TEF1011-100 as the local media converter and another C4TEF1011-100 as the remote media converter. All C4TEF10xx-10x models have the following copper connectors: Connector Type... -
Page 2: Installation
C4TEF10xx-10x Part Number Fiber-Optic - single fiber, single mode, 100Base-FX C4TEF1029-100 SC, 1310 mn (TX)/1550 nm (RX), 20 km (12.4 miles)* C4TEF1029-101 SC, 1550 mn (TX)/1310 nm (RX), 20 km (12.4 miles)* C4TEF1029-100 and C4TEF1029-101 are intended to be installed in the same link where one is the local converter and the other is the remote converter. - Page 3 C4TEF10xx-10x Installation -- Continued Switch Set #1 - T1/E1 Options 5, 6, 7, 8 - Loop-Back Settings The loop-back setting is used for installation and network debugging procedures. Each of the T1/E1 ports can be individually set for loop-back mode: •...
-
Page 4: Install The Slide-In-Module
C4TEF10xx-10x Installation -- Continued Switch Set #2 - Serial Options 6 - not in use 7 - not in use 8 - not in use switches 6, 7, 8, & 9 are not in use 9 - not in use 10 - Fiber Loop-Back up - Disabled fiber loop-back. -
Page 5: Install The Fiber Cable
C4TEF10xx-10x Installation -- Continued Install the T1/E1 Cable Locate or build ITU compliant copper cable with straight-through RJ-48 connectors installed at both ends. (See page 14 for the proper cable specifications for your network application.) Connect the RJ-48 connector at one end of the cable to one of the T1/E1 ports on the C4TEF10xx-10x media converter. -
Page 6: Operation
C4TEF10xx-10x Operation Fiber Network LEDs Use the status LEDs next to the fiber port to monitor the media converter and the fiber network connections. LKF (fiber link) On = Fiber link connection. PWR (power) On = Connection to external AC or DC power. T1/E1 LEDs Each T1/E1 link has a pair of LEDs embedded in the RJ-48 connector that monitor the status of the link. -
Page 7: Cable Specifications
<10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm C4TEF1011-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB... -
Page 8: Technical Specifications
C4TEF10xx-10x Technical Specifications For use with Transition Networks Model C4TEF10xx-10x or equivalent. Standards G.703, AMI/B8ZS/HDB3 Data Rate Fiber: 100 Mb/s Dimensions 3.4" x 5.0" x 1.75" (86 mm x 182 mm x 43 mm) Weight 6 oz. (181 g) (approximate) Power Consumption 6.0 watts Environment... - Page 9 C4TEF10xx-10x Troubleshooting -- Continued 5. Is data transfer failing on one of the T1/E1 ports? • Verify the local T1/E1 connection at the local converter by starting a local loop-back at the local converter: - HW mode: set the local converter to T1/E1 loop-back (see page 4). - SW mode: enter the local T1/E1 loop-back command at the local converter.
-
Page 10: Contact Us
Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: C4TEF10xx-10x Series Media Converters Part Number(s): C4TEF1011-100, C4TEF1013-100, C4TEF1014-100, C4TEF1015-100, C4TEF1016-100, C4TEF1017-100, C4TEF1018-100, C4TEF1029-100, C4TEF1029-101, C4TEF1029-102, C4TEF1029-103 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the C4TEF10xx-10x to which this declaration refers is in conformity with the following standards. - Page 11 Trademark Notice All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2005 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
