USER'S GUIDE
CBFTF10xx-10x

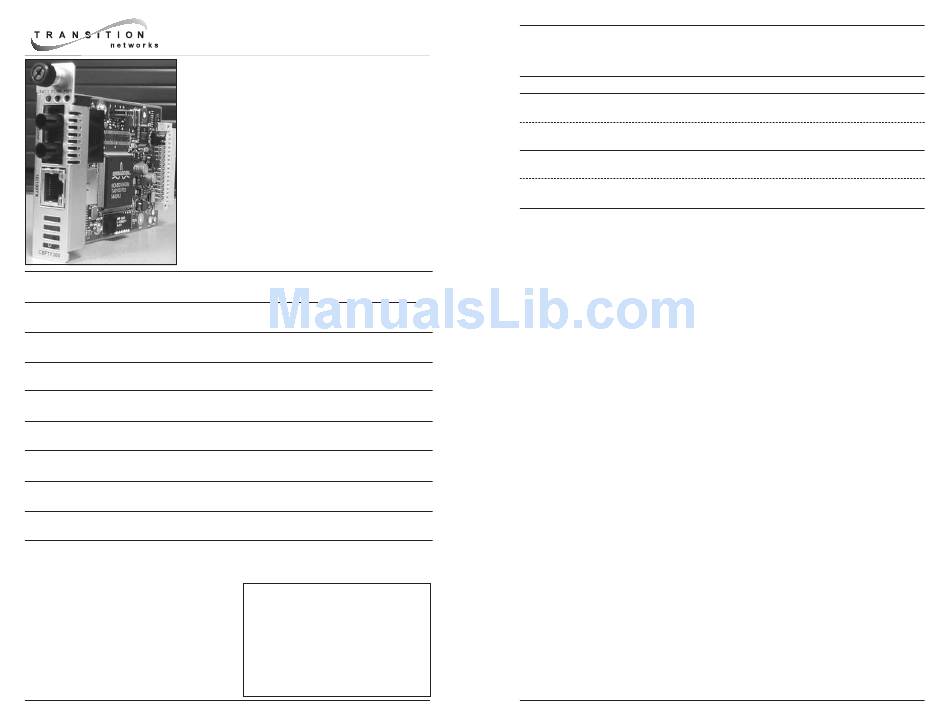

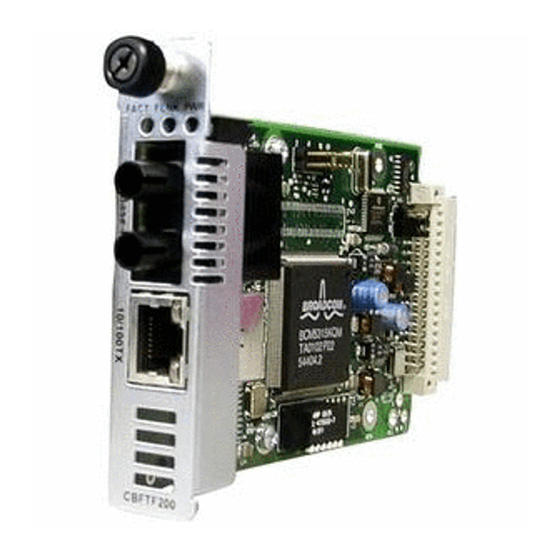

Slide-in-Module Media Converter
•
•
•
The CBFTF10xx-10x 2-port Ethernet™/Fast
Ethernet™ bridging Media Converter is designed to
be installed in a TRANTSITION Networks
PointSystem™ Conversion Center™ and connects
100Base-TX Fast Ethernet™ twisted-pair copper
network devices to network devices on a 100Base-
FX Fast Ethernet™ fiber network.
Part Number Port One - Copper
10Base-T/100Base-TX
CBFTF1011-100 RJ-45
100 m (328 ft)*
CBFTF1013-100 RJ-45
100 m (328 ft)*
CBFTF1014-100 RJ-45
100 m (328 ft)*
CBFTF1015-100 RJ-45
(long haul) 100 m (328 ft)*
CBFTF1016-100 RJ-45
(extra long haul) 100 m (328 ft)*
CBFTF1017-100 RJ-45
(long wave length) 100 m (328 ft)*
CBFTF1018-100 RJ-45
100 m (328 ft)*
CBFTF1025-100 RJ-45
100 m (328 ft)*
* Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network installation.)
Copper to Fiber
10/100 Bridging (2-Port)
10/100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm singlemode
20 km (12.4 miles)*
SC, 1300 nm singlemode
40 km (24.8 miles)*
SC, 1300 nm singlemode
60 km (37.2 miles)*
SC, 1550 nm singlemode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1300 nm singlemode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . . .9
Technical Specifications . . . . . . .10
Half-Duplex Network . . . . . . . . .11
Fault Isolation and Correction . .14
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16
CBFTF10xx-10x
NOTE:
CBFTF1029-100 and CBFTF1029-101 are intended to be installed together.
CBFTF1029-102 and CBFTF1029-103 are intended to be installed together.
Part Number Port One - Copper
CBFTF1029-100 RJ-45
100 m (328 ft)*
CBFTF1029-101 RJ-45
100 m (328 ft)*
CBFTF1029-102 RJ-45
100 m (328 ft)*
CBFTF1029-103 RJ-45
100 m (328 ft)*
* Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network installation.)
Product Features
RATE CONVERSION
The CBFTF10xx-10x 2-port Ethernet™/Fast Ethernet™ bridging Media
Converter allows connection of 10Mb/s terminal devices on a 10Base-T
legacy Ethernet™ copper network to 100Mb/s terminal devices on a 100Base-
TX Fast Ethernet™ copper network and/or to 100Mb/s terminal devices on a
100Base-FX Fast Ethernet™ fiber network.
AUTO-NEGOTIATION
The Auto-Negotiation feature allows the Media Converter to be used with
10Base-T and 100Base-TX twisted-pair ports. Using Auto-Negotiation, the
Media Converter brings up the copper links in the highest speed and mode
possible for all the attached network devices.
If selected, Auto-Negotiation allows a twisted-pair link to become operational
only after the Auto-Negotiation function matches network speed capabilities
at both ends of the twisted-pair copper segment.
AUTOCROSS
The AutoCross™ feature, when selected, allows either straight-through (MDI)
or crossover (MDI-X) cables to be used when connecting to 10Base-TX or
100Base-TX devices, such as hubs, transceivers, or network interface cards
(NICs). AutoCross determines the characteristics of the cable connection and
automatically configures the unit to link up, regardless of the cable
configuration.
2
Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00)
Port Two - Simplex Fiber-Optic
SC, 1310 mn (TX)/1550 nm (RX)
singlemode, 20 km (12.4 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
singlemode, 20 km (12.4 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
singlemode, 40 km (24.8 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
singlemode, 40 km (24.8 miles)*
