Set the Dip Switches -- Continued
NOTE: Dip switch 4 (in the "SW" set) applies to fiber port 1 (F1).
4. Fiber Mode (Fiber Port 1)
UP (Full-Duplex) - The cable distances for fiber port
1 (F1) are constrained by the cable requirements (see
pages 1 and 2).
DOWN (Half-Duplex) - The cable distances for fiber
port 1 (F1) are constrained by the 512-Bit Rule (see
page 9).
NOTE: Dip switches 5 and 6 (in the "SW" set) apply to both twisted-pair copper
ports (TP1 and TP2).
5. AutoCross
UP (Enable) - The media converter connects
automatically to either straight-through or crossover
twisted-pair copper cable (see page 12).
DOWN (Disable) - Either straight-through or
crossover twisted-pair copper cable must be
installed, according to the site requirements
6. Not in use
4
24-Hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
4

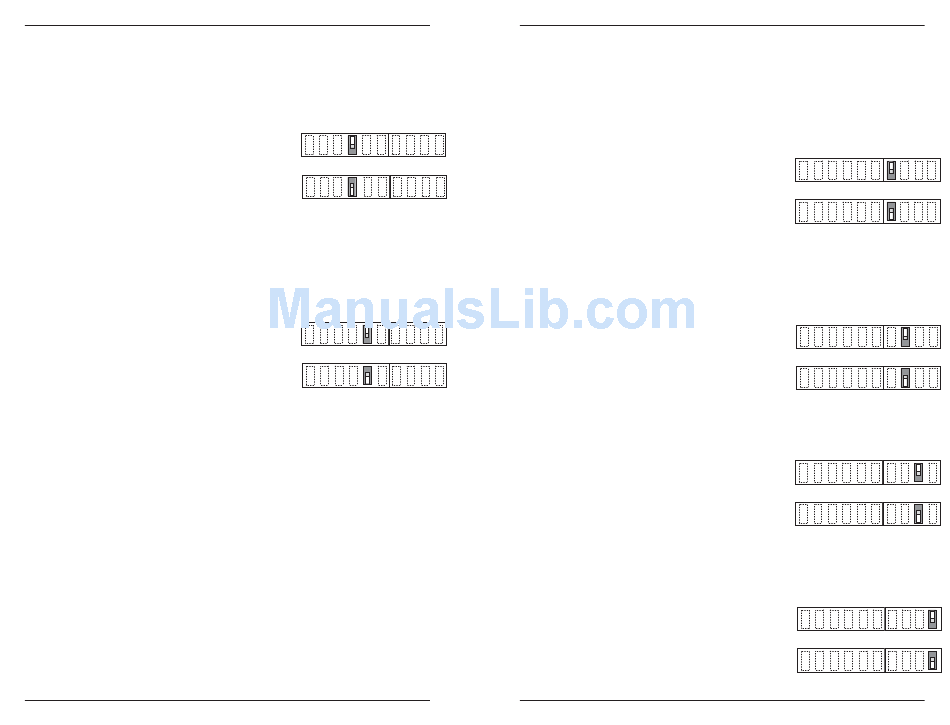

UP
Fiber Full-Duplex
DOWN
Fiber Half-Duplex
5
UP
AutoCross Enable
DOWN
AutoCross Disable
Installation
-- Continued
Set the Dip Switches -- Continued
NOTE: Dip switches 1, 2, 3, and 4 (in the Config. Switches set) apply only to
twisted-pair copper port 2 (TP2).
1. Twisted-Pair Auto-Negotiation
UP (Enabled) - The media converter "advertises" ALL
rate and mode capabilities to the network:
• 100Mb/s full-duplex • 100Mb/s half-duplex,
• 10Mb/s full-duplex • 10Mb/s half-duplex.
DOWN (Disabled) - The bridging media converter
does not "advertise" the rate and mode capabilities
to the network. Switch 2 and switch 3 are then used
to set the twisted-pair rate and mode.
2. Twisted-Pair Rate
UP (100Base-TX) - Sets the twisted-pair rate to
100Base-TX.
DOWN (10Base-T) - Sets the twisted-pair rate to
10Base-T.
3. Twisted-Pair Mode
UP (Full-Duplex) - The twisted-pair cable distances
are constrained by the cable requirements (see pages
1 and 2).
DOWN (Half-Duplex) - The twisted-pair cable
distances are constrained by the 512-Bit Rule (see
page 9).
4. Monitor for Twisted-Pair Port 2 (TP2)
UP (OFF) - The twisted-pair port 2 (TP2) functions as
directed by switches 1, 2, and 3.
DOWN (ON) - The twisted-pair port 2 (TP2)
functions as a "sniffer" port and transmits all packets
received from ports F1 and TP1.
