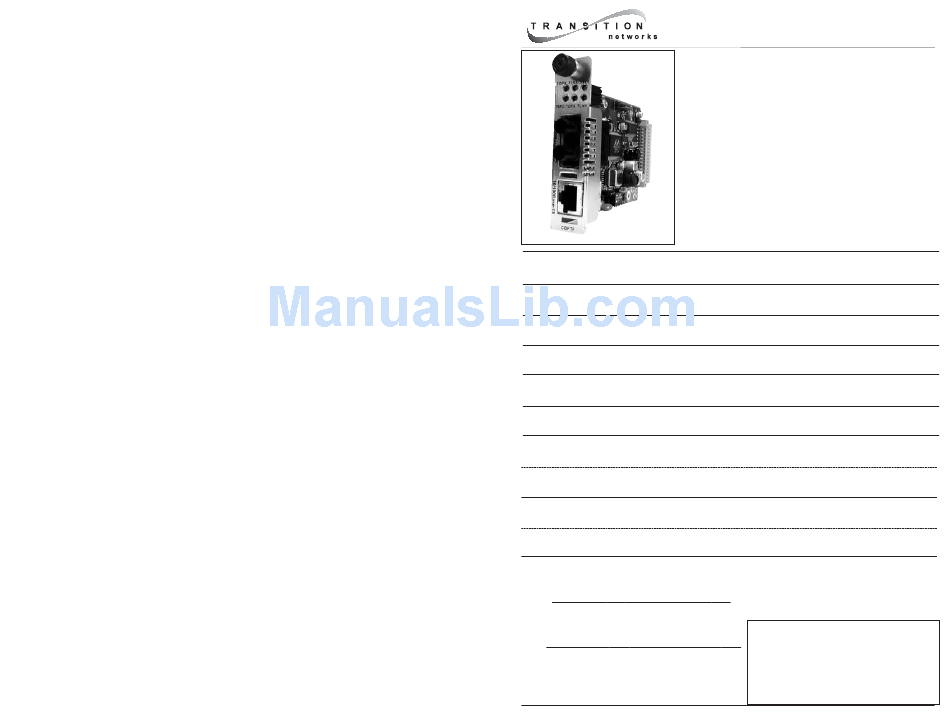

USER'S GUIDE
CBFTF10xx-15x

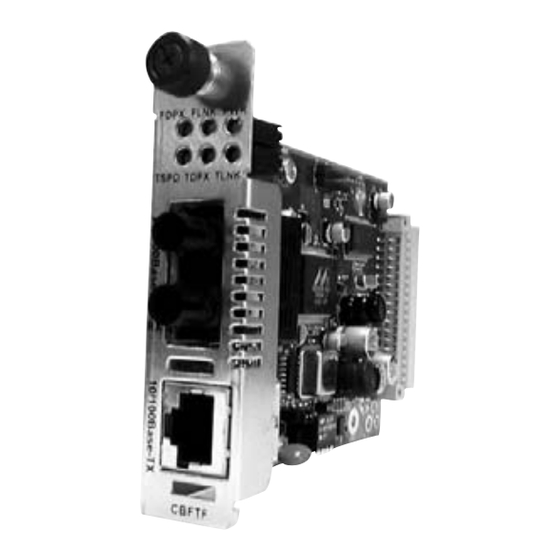

Slide-in-Module Media Converter
•
•
•
The CBFTF10xx-15x 2-port Ethernet/Fast Ethernet
bridging Media Converter is designed to be
installed in a Transition Networks PointSystem™
chassis and connects 10Base-T Ethernet or
100Base-TX Fast Ethernet twisted-pair copper
network devices to network devices on a 100Base-
FX Fast Ethernet fiber network.
Part Number
Port One - Copper
10Base-T/100Base-TX
CBFTF1011-150
RJ-45
100 m (328 ft)*
CBFTF1013-150
RJ-45
100 m (328 ft)*
CBFTF1014-150
RJ-45
100 m (328 ft)*
CBFTF1015-150
RJ-45
100 m (328 ft)*
CBFTF1018-150
RJ-45
100 m (328 ft)*
CBFTF1029-150**
RJ-45
100 m (328 ft)*
CBFTF1029-151**
RJ-45
100 m (328 ft)*
CBFTF1029-152***
RJ-45
100 m (328 ft)*
CBFTF1029-153***
RJ-45
100 m (328 ft)*
*
Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network.) (TX) = transmit (RX) = receive
**
SBFTF1029-150 and SBFTF1029-151 are intended to be installed in the same
network where one is the local converter and the other is the remote
converter.
*** SBFTF1029-152 and SBFTF1029-153
are intended to be installed in the same
network where one is the local
converter and the other is the remote
converter.
Copper to Fiber
10/100 Bridging (2-Port)
10Base-T/100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm singlemode
20 km (12.4 miles)*
SC, 1310 nm singlemode
40 km (24.8 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
singlemode, 20 km (12.4 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
singlemode, 20 km (12.4 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
singlemode, 40 km (24.8 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
singlemode, 40 km (24.8 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .8
Technical Specifications . . . . . . . .9
Fault Isolation and Correction . .10
Compliance Information . . . . . . .12
Advertisement
Table of Contents
Related Manuals for Transition Networks CBFTF10XX-15X
Summary of Contents for Transition Networks CBFTF10XX-15X
- Page 1 Copper to Fiber • 10/100 Bridging (2-Port) • 10Base-T/100Base-TX to 100Base-FX The CBFTF10xx-15x 2-port Ethernet/Fast Ethernet bridging Media Converter is designed to be installed in a Transition Networks PointSystem™ chassis and connects 10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices on a 100Base- FX Fast Ethernet fiber network.
-
Page 2: Installation
CBFTF10xx-15x INSTALLATION CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position switch and the jumper(s) and when installing the Slide-in-Module. Failure to observe this caution could result in damage to, and subsequent failure of, the Media Converter. -
Page 3: Operation
Locate or build IEEE 803.2 compliant 100Base-FX fiber cable with ™ male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the CBFTF10xx-15x Media Converter as described: • Connect the male TX cable connector the female TX connector. - Page 4 Domains” on the Transition Networks website at: http://www.transition.com/learning/whitepapers/colldom_wp.htm Using SNMP See the on-line documentation that comes with Transition Networks FocalPoint™ software for applicable commands and usage. Use SNMP at an attached terminal or at a remote location to monitor the Media Converter by monitoring: •...
-
Page 5: Cable Specifications
• Do not use flat or silver satin wire. Straight-Through Cable Twisted Pair #1 Twisted Pair #2 Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00) TECHNICAL SPECIFICATIONS For use with Transition Networks Model CBFTF10xx-15x or equivalent. Standards Data Rate: Dimensions Weight Power Consumption: max: -14.0 dBm... -
Page 6: Fault Isolation And Recovery
CBFTF1029-153 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CBFTF10xx-15x to which this declaration refers is in conformity with the following standards. EMC-CISPR 22:1985 Class A; EN 55022:1988 Class A; EN 50082-1:1992; EN 60950 A4:1997; IEC 801.2, 801.3, and 801.4; IEC 950; 22 CFR subpart J I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s). -
Page 7: Compliance Information
All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2002-2003 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
