User's Guide
CBFTF10xx-10x

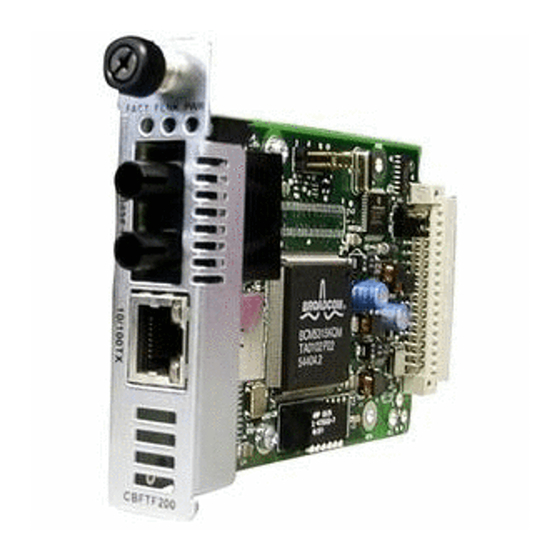

Slide-in-Module Media Converter
•
•
•
The CBFTF10xx-10x 2-port Ethernet/fast Ethernet
bridging media converter is designed to be
installed in a Transition Networks PointSystem™
chassis and connects 10Base-T Ethernet or
100Base-TX fast Ethernet twisted-pair copper
network devices to network devices on a 100Base-
FX fast Ethernet fiber network.
Part Number
Port One - Copper
10Base-T/100Base-TX
CBFTF1011-100
RJ-45
100 m (328 ft)*
CBFTF1013-100
RJ-45
100 m (328 ft)*
CBFTF1014-100
RJ-45
100 m (328 ft)*
CBFTF1015-100
RJ-45
(long haul)
100 m (328 ft)*
CBFTF1016-100
RJ-45
(extra long haul)
100 m (328 ft)*
CBFTF1017-100
RJ-45
(long wave length)
100 m (328 ft)*
CBFTF1018-100
RJ-45
100 m (328 ft)*
CBFTF1019-100
RJ-45
100 m (328 ft)*
*Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.
The stand-alone version of the media
converter is SBFTF10xx-10x. For more
information, see the SBFTF10xx-10x user's
guide on-line at: www.transition.com.
Copper to Fiber
10/100 Bridging (2-Port)
10/100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
LC, 1310 nm single mode
20 km (12.4 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Half-Duplex Network . . . . . . . . . .9
Cable Specifications . . . . . . . . . .11
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .13
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16
Advertisement
Table of Contents
Related Manuals for Transition Networks CBFTF1011-100
Summary of Contents for Transition Networks CBFTF1011-100

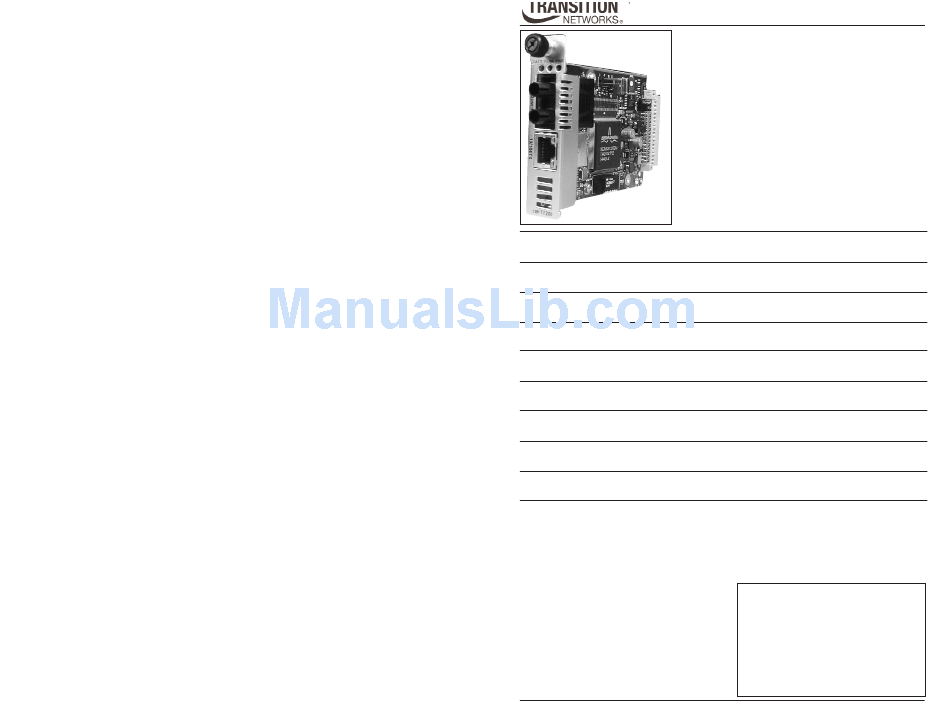

- Page 1 100Base- FX fast Ethernet fiber network. Part Number Port One - Copper Port Two - Duplex Fiber-Optic 10Base-T/100Base-TX 100Base-FX CBFTF1011-100 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* CBFTF1013-100 RJ-45...
-
Page 2: Installation
CBFTF10xx-10x Part Number Port One - Copper Port Two - Simplex Fiber-Optic CBFTF1029-100 ** RJ-45 SC, 1310 nm (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* CBFTF1029-101 ** RJ-45 SC, 1550 nm (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* CBFTF1029-102 **... -
Page 3: Install The Slide-In-Module
CBFTF10xx-10x Installation - Continued Set the Hardware/Software Jumper The hardware/software jumper is located on the circuit board and is labeled “H” and “S”. Use a pair of needle- nose pliers to set the jumper to the desired location. Hardware The media converter settings are determined by dip switch settings (p. -
Page 4: Power The Media Converter
CBFTF10xx-10x Installation -- Continued Power the Media Converter The CBFTF10xx-10x slide-in-module media converter is powered through the Point System™ chassis. Operation Status LEDs Use the status LEDs to monitor the media converter and the network connections. The “FD” and “LACT” LEDs near the top of the media converter refer to the fiber port. -
Page 5: Half-Duplex Network
CBFTF10xx-10x Operation -- Continued Product Features -- Continued Distance Extension The CBFTF10xx-10x media converter segments 10Base-T copper Ethernet and/or 100Base-TX copper fast Ethernet and 100Base-FX fiber fast Ethernet collision domains. In a half-duplex Ethernet or fast Ethernet environment, the CBFTF10xx-10x media converter extends network distances by segmenting collision domains so that the 5-Segment Rule (see page 10) or the 512-Bit Rule (see pages 9 and 10) applies separately to each collision domain. -
Page 6: Cable Specifications
<10-9 single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm CBFTF1011-100 1300 nm multimode CBFTF1013-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB... -
Page 7: Technical Specifications
CBFTF10xx-10x Cable Specifications -- Continued CBFTF1029-100 1310 nm (TX) / 1550 nm (RX) simplex CBFTF1029-101 1550 nm (TX) / 1310 nm (RX) simplex Fiber-optic Transmitter Power: min: -13.0 dBm Fiber-optic Receiver Sensitivity: min: -32.0 dBm Link Budget: 19.0 dB CBFTF1029-102 1310 nm (TX) / 1550 nm (RX) simplex CBFTF1029-103 1550 nm (TX) / 1310 nm (RX) simplex... -
Page 8: Compliance Information
CBFTF10xx-10x Troubleshooting Is the “Duplex/Link” LED illuminated on the twisted-pair copper port? • Check the copper cables for proper connection. • Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600. • Yellow = The media converter has selected half-duplex mode. • Green = The media converter has selected full-duplex mode. •... - Page 9 Name of Mfg: Transition Networks 10900 Red Circle Drive, Minnetonka MN 55343 U.S.A. Model: CBFTF10xx-10x Series Media Converters Part Number(s): CBFTF1011-100, CBFTF1013-100, CBFTF1014-100, CBFTF1015-100, CBFTF1016-100, CBFTF1017-100, CBFTF1018-100, CBFTF1019-100, CBFTF1029-100, CBFTF1029-101, CBFTF1029-102, CBFTF1029-103, CBFTF1035-100,CBFTF1039-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CBFTF10xx-10x to which this declaration refers is in conformity with the following standards.
