Transition Networks
Connect Twisted-pair Copper Cable
The AutoCross feature allows either MDI (
configured automatically, according to network conditions.
If half-duplex mode is used, refer to the 512-Bit Rule.
•
If full-duplex mode is used, the 512-Bit Rule does not apply. The cable lengths are constrained by the
•
cable requirements.
Perform these steps:
Locate a 10Base-T or 100Base-TX cable with RJ-45 connectors installed at both ends.
1.

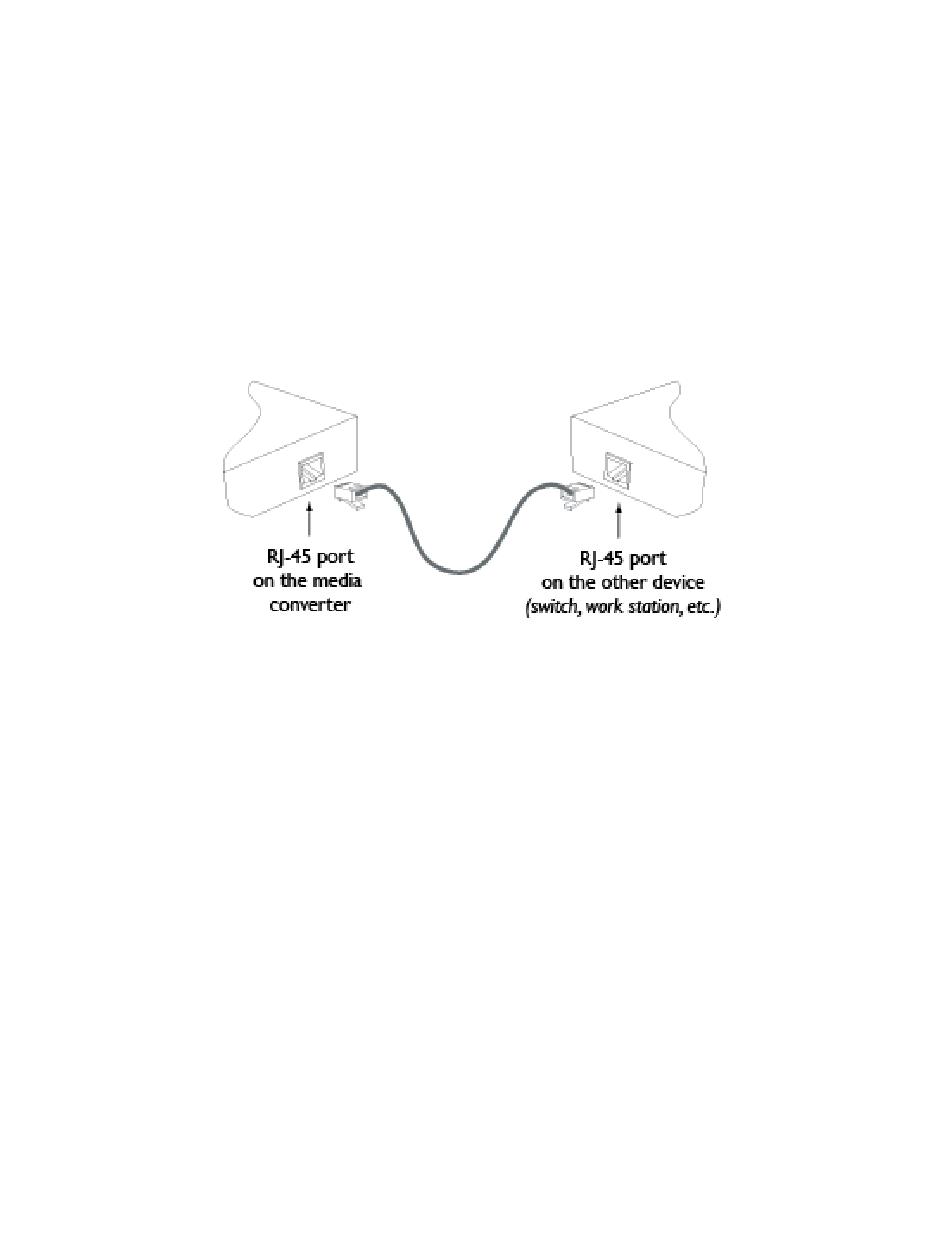

Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the M/GE-xSW-SFP-01-xx-UxX Series
2.
media converter.
Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (
3.
workstation
, etc.).
33781 Rev. B
straight-through
) or MDI-X (
https://www.transition.com/
M-GE-xSW-SFP-01-xx-UxX Series User Guide
crossover
) cable connections to be
switch
,
Page 9 of 22
