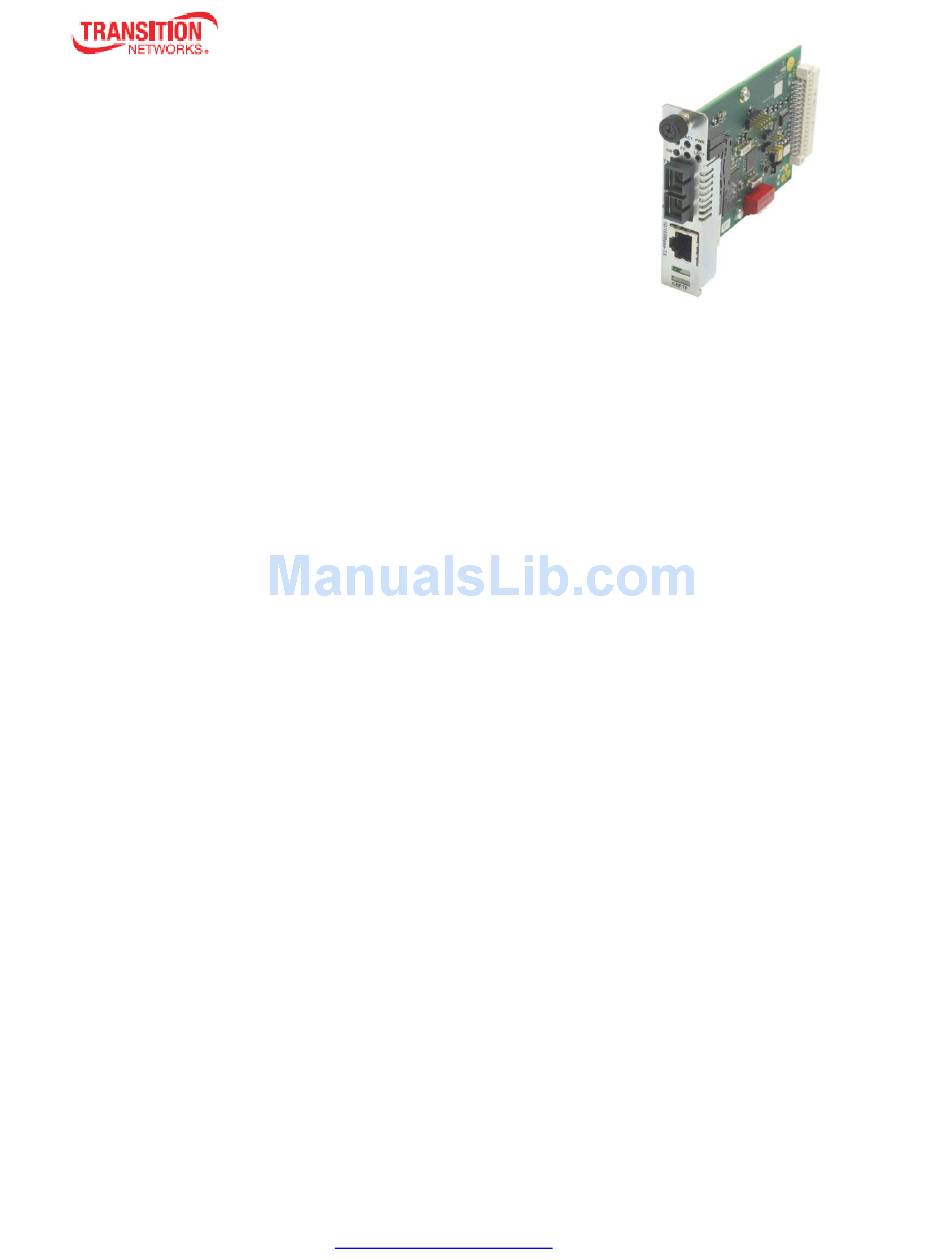

User Guide
CBFTF10xx-1xx

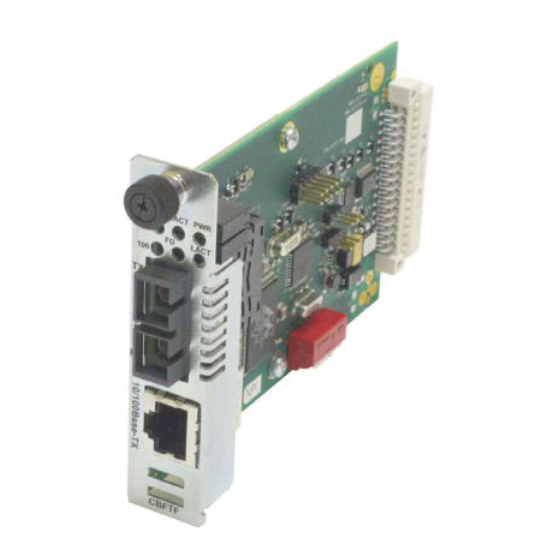

Slide-in-Module Media Converter
•
Extend network distance up to 120 km with an SFP module
•
Convert 10/100 on copper to straight 100 on fiber
•
Half or Full-Duplex on both ports
•
Fully manageable
•
Auto-Negotiation and AutoCross™
•
Link Pass Through (LPT) and Far-End-Fault (FEF)
•
Automatic Link Restoration
•
Field Upgradeable Firmware
•
Can be used with any Point System™ Chassis
•
Bridging media converters provide conversion and integration solutions for half- and full-duplex environments
Contents
Introduction .................................................................................................................................................. 1
Ordering Information .................................................................................................................................... 2
DIP Switch and Jumper Locations ............................................................................................................. 3
Installation .................................................................................................................................................... 3
Set 6-position DIP Switch (SW2) ............................................................................................................... 4
Hardware/Software Mode Jumper (J4) .................................................................................................... 5
Install the Slide-in-Module ....................................................................................................................... 5
Install the Twisted-Pair Copper Cable ...................................................................................................... 6
Install the Fiber Cable ............................................................................................................................... 6
Operation ...................................................................................................................................................... 7
Status LEDs ............................................................................................................................................... 7
Product Features ...................................................................................................................................... 8
Cable Specifications ................................................................................................................................ 10
Technical Specifications .............................................................................................................................. 12
Troubleshooting .......................................................................................................................................... 13
Contact Us ................................................................................................................................................... 14
Compliance Information ............................................................................................................................. 14
Declaration of Conformity ...................................................................................................................... 14
CE Mark ................................................................................................................................................... 14
Record of Revisions ..................................................................................................................................... 15
Introduction
Transition Networks CBFTF10xx-10x two-port Ethernet/Fast Ethernet bridging media converter connects
10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices
on a 100Base-FX Fast Ethernet fiber network.
The CBFTF10xx-10x provides an interface between 10/100Base-TX ports and 100Base-FX ports, allowing
you to integrate fiber optic cabling into 10/100Base-TX copper environments. Operating at Layer 2, this
converter not only converts copper to fiber, but it also does Rate Conversion, converting 10/100 copper
to 100Base fiber.
33403 Rev. E
https://www.transition.com
Page 1 of 15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CBFTF10xx-1xx
Summary of Contents for Transition Networks CBFTF10xx-1xx
-
Page 1: Table Of Contents
CE Mark ..............................14 Record of Revisions ............................. 15 Introduction Transition Networks CBFTF10xx-10x two-port Ethernet/Fast Ethernet bridging media converter connects 10Base-T Ethernet or 100Base-TX Fast Ethernet twisted-pair copper network devices to network devices on a 100Base-FX Fast Ethernet fiber network. -
Page 2: Ordering Information
Transition Networks CBFTF10xx-1xx User Guide Ordering Information Description 10/100BASE-TX (RJ-45) [100 m/328 ft.] to CBFTF1011-105 100BASE-FX 1300nm MM (ST) [2 km/1.2 mi.] Link Budget: 11.0 dB 10/100BASE-TX (RJ-45) [100 m/328 ft.] to CBFTF1013-105 100BASE-FX 1300nm MM (SC) [2 km/1.2 mi.] Link Budget: 11.0 dB 10/100BASE-TX (RJ-45) [100 m/328 ft.] to... -
Page 3: Dip Switch And Jumper Locations
Transition Networks CBFTF10xx-1xx User Guide DIP Switch and Jumper Locations PCB 11293 Rev. A is shown below. Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 6- position DIP switch. Failure to observe this caution could result in damage to the media converter. -
Page 4: Set 6-Position Dip Switch (Sw2)
Transition Networks CBFTF10xx-1xx User Guide Set 6-position DIP Switch (SW2) The 6-position DIP switch (SW2) is located located on the edge of the PCB. Use a small flat blade screwdriver to set the recessed switches. See below for the individual switch settings. -
Page 5: Hardware/Software Mode Jumper (J4)
Transition Networks CBFTF10xx-1xx User Guide Hardware/Software Mode Jumper (J4) The jumpers are located on the media converter circuit board. Use a small needlenosed pliers or a similar tool to set the jumper. The Hardware/Software jumper is labeled “H” for hardware and “S” for software. -
Page 6: Install The Twisted-Pair Copper Cable
Transition Networks CBFTF10xx-1xx User Guide Install the Twisted-Pair Copper Cable Note: The AutoCross feature allows either MDI (straight-through) or MDI-X (crossover) cable connections to be configured automatically, according to the network conditions. 1. Locate or build IEEE 803.2 compliant 10Base-T or 100Base-TX cable, with RJ-45 connectors installed at both ends. -
Page 7: Operation
Transition Networks CBFTF10xx-1xx User Guide Operation Status LEDs Use the status LEDs to monitor media converter operation in the network. FDPX (Fiber Duplex) ON = full duplex fiber connection. OFF= half duplex fiber connection. FLNK (Fiber Link) ON = Fiber link connection. -
Page 8: Product Features
Transition Networks CBFTF10xx-1xx User Guide Product Features ™ AutoCross The AutoCross feature detects and configures the twisted-pair copper port on the CBFTF10xx-10x media converter to the correct straight-through (MDI) or crossover (MDI-X) configuration. This feature allows either MDI or MDI-X cable to connect the media converter to devices such as hubs, transceivers, or network interface cards (NICs). - Page 9 For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on-line at: https://www.transition.com. SNMP See the on-line documentation that comes with Transition Networks FocalPoint™ software for applicable commands and usage. Use SNMP at an attached terminal or at a remote location to monitor the converter by monitoring: •...
-
Page 10: Cable Specifications
Transition Networks CBFTF10xx-1xx User Guide Cable Specifications The physical characteristics must meet or exceed the IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: <10-9 Single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm... - Page 11 Transition Networks CBFTF10xx-1xx User Guide CBFTF1029-107, CBFTF1029-108 single mode Fiber-optic Transmitter Power: min: -8.0 dBm max: -3.0 dBm Fiber-optic Receiver Sensitivity: min: -33.0 dBm max: -3.0 dBm Link Budget: 25.0 dB CBFTF1035-105 multimode Fiber-optic Transmitter Power: min: 0.0 dBm max: 5.0 dBm Fiber-optic Receiver Sensitivity: min: -36.0 dBm...
-
Page 12: Technical Specifications
Transition Networks CBFTF10xx-1xx User Guide Technical Specifications For use with Transition Networks Model CBFTF10xx-10x or equivalent. Standards IEEE Std. 802.3u, 802.3x Data Rate 10 Mbps; 100 Mbps Weight 1 lbs. [0.45 kg] Power Consumption 3 watts Max. Packet Size: 2048 bytes untagged bytes 2044 bytes tagged bytes Filtering &... -
Page 13: Troubleshooting
Transition Networks CBFTF10xx-1xx User Guide Troubleshooting If the media converter fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action: Is the PWR (power) LED lit? • Is the power cord properly installed in the media converter and at the external power source? •... -
Page 14: Contact Us
Transition Networks CBFTF10xx-1xx User Guide Contact Us Technical Support: Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Main Office tel: +1.952.941.7600 | toll free: 1.800.526.9267 | fax: 952.941.2322 sales@transition.com techsupport@transition.com customerservice@transition.com Address Transition Networks 10900 Red Circle Drive Minnetonka, MN 55343, U.S.A. -
Page 15: Record Of Revisions
Trademark notice: All trademarks and registered trademarks are the property of their respective owners. Copyright restrictions: © 2008-2016 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic or mechanical - without written permission from Transition Networks.
