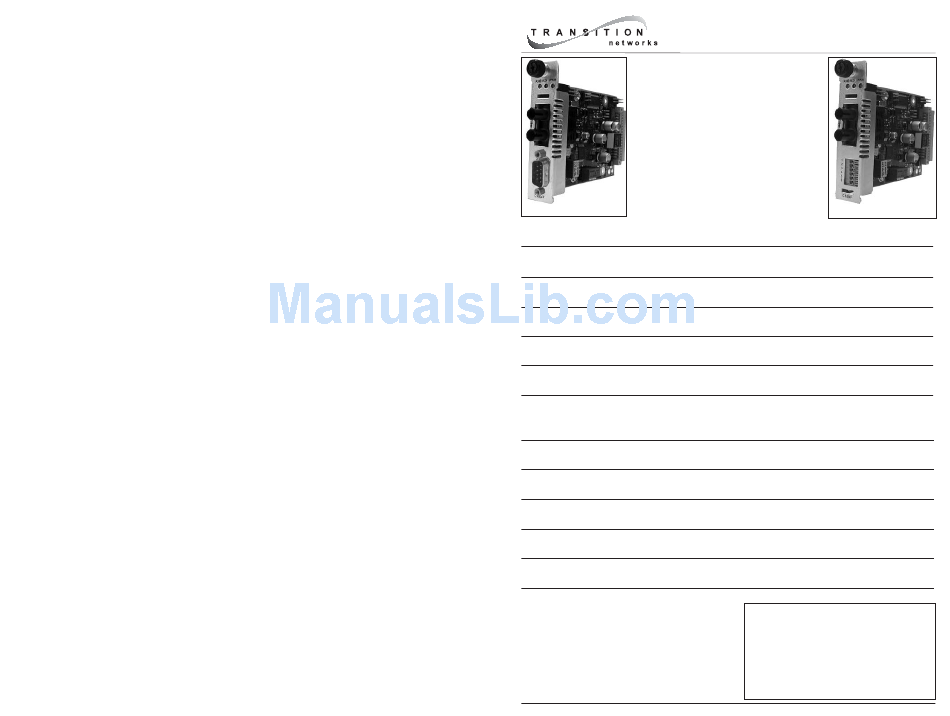

USER'S GUIDE
CRS4Fxxxx-100
Slide-in-Module Media Converter
RS-485/422 Copper to Fiber

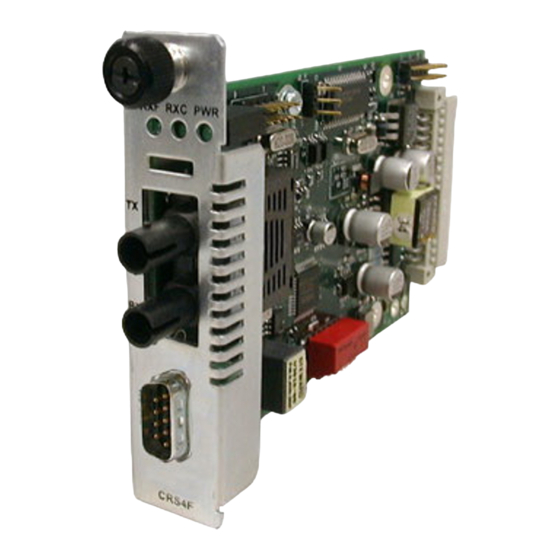

Transition Networks CRS4Fxxxx-100
series media converters are designed
to be installed in the PointSystem™
chassis and connect RS-485/422
copper cable to fiber-optic cable at
asynchronous data rates upto1.25
CRS4F31xx-100
Mb/s
The CRS4F31xx-100 media converters use a male DB-9 port for the copper link:
Part Number
Port One - Copper
DB-9 port
CRS4F3111-100
RS-485/422
1200 m (4000 ft)*
CRS4F3113-100
RS-485/422
1200 m (4000 ft)*
CRS4F3114-100
RS-485/422
1200 m (4000 ft)*
CRS4F3115-100
RS-485/422
1200 m (4000 ft)*
The CRS4F32xx-100 media converters use a 6-position terminal block for the
copper link:
Part Number
Port One - Copper
6-position terminal block
CRS4F3211-100
RS-485/422
1200 m (4000 ft)*
CRS4F3213-100
RS-485/422
1200 m (4000 ft)*
CRS4F3214-100
RS-485/422
1200 m (4000 ft)*
CRS4F3215-100
RS-485/422
1200 m (4000 ft)*
* Maximum cable distance is 1200m
(4000')
@
<90
kb/s
decreasing
logarithmically to 92m (300') @ 500 kb/s.
**Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network
installation.
CRS4F32xx-100
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)**
SC, 1300 nm multimode
2 km (1.2 miles)**
SC, 1310 nm single mode
20 km (12.4 miles)**
SC, 1310 nm single mode
40 km (24.8 miles)**
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)**
SC, 1300 nm multimode
2 km (1.2 miles)**
SC, 1310 nm single mode
20 km (12.4 miles)**
SC, 1310 nm single mode
40 km (24.8 miles)**
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CRS4F3111-100
Summary of Contents for Transition Networks CRS4F3111-100
- Page 1 RS-485/422 copper cable to fiber-optic cable at asynchronous data rates upto1.25 CRS4F31xx-100 Mb/s The CRS4F31xx-100 media converters use a male DB-9 port for the copper link: Part Number Port One - Copper Port Two - Fiber-Optic DB-9 port...
-
Page 2: Installation
CRS4Fxxxx-100 Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the switches. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the 6-Position Switch The 6-position switch is located on the side of the media converter. Use a small flat-blade screwdriver or a similar device to set the recessed switches. - Page 3 CRS4Fxxxx-100 Installation -- Continued Install the Slide-In-Module CAUTION: Wear a grounding device and observe electrostatic discharge precautions when installing the media converter. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. To install the CRS4Fxxxx-100 media converter slide-in-module: Locate an empty installation slot on the PointSystem™...
-
Page 4: Operation
CRS4Fxxxx-100 Operation After installation, the media converter should function without operator intervention. Use the status LEDs to monitor the media converter operation in the network. The media converter is connected to external power. A link has been established with the fiber link. Data has been received on the copper link. -
Page 5: Technical Specifications
<10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm CRS4F3111-100 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB... -
Page 6: Troubleshooting
Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: CRS4Fxxxx-100 Series Media Converter Part Number: CRS4F3111-100, CRS4F3113-100, CRS4F3114-100, CRS4F3115-100, CRS4F3211-100, CRS4F3213-100, CRS4F3214-100, CRS4F3215-100 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CRS4Fxxxx-100 to which this declaration refers is in conformity with the following standards. -
Page 7: Compliance Information
Compliance Information CISPR22/EN55022 Class A + EN55024 CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
