Part Number
Copper - two (2) ports
10Base-T/100Base-TX
CBFTF1011-110
RJ-45
100 m (328 ft)*
CBFTF1013-110
RJ-45
100 m (328 ft)*
CBFTF1014-110
RJ-45
100 m (328 ft)*
CBFTF1015-110
RJ-45
(long haul)
100 m (328 ft)*
CBFTF1016-110
RJ-45
(extra long haul)
100 m (328 ft)*
CBFTF1017-110
RJ-45
(long wave length)
100 m (328 ft)*
CBFTF1018-110
RJ-45
100 m (328 ft)*
CBFTF1025-110
RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network.

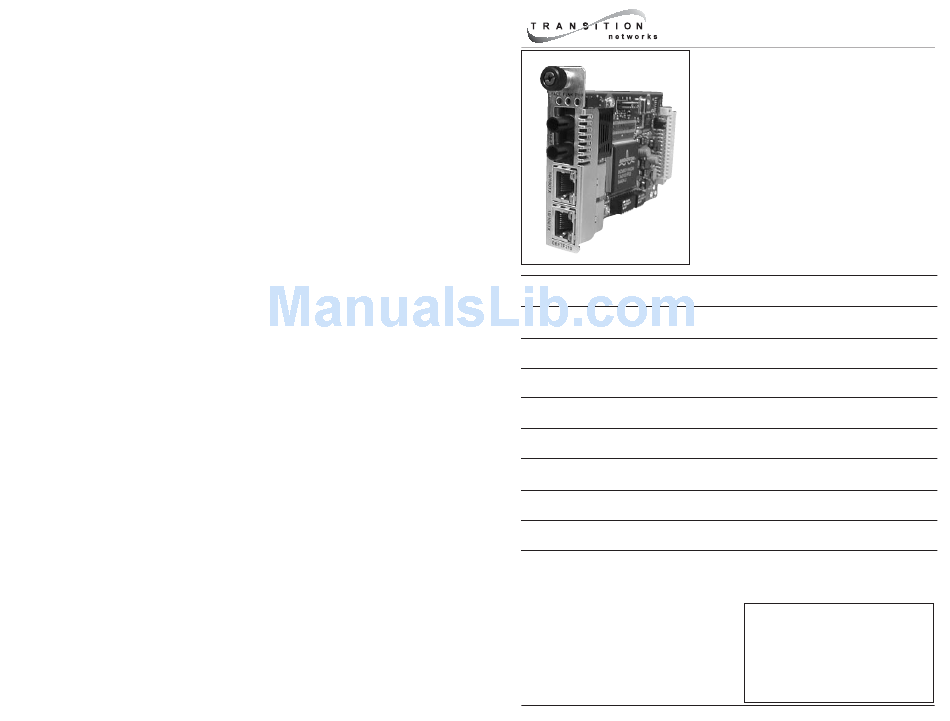

User's Guide
CBFTF10xx-11x
Slide-in-Module Media Converter
• Copper to Fiber
• 10/100 Bridging (3-Port)
• 10/100Base-TX to 100Base-FX
The CBFTF10xx-11x 3-port Ethernet/fast
Ethernet bridging media converter is designed
to be installed into a Transition Networks
PointSystem™ chassis and allows connection
of 10Base-T Ethernet and/or 100Base-TX fast
Ethernet twisted-pair copper network devices
to network devices on a 100Base-FX fast
Ethernet fiber network.
Duplex Fiber-Optic - one (1) port
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1310 nm single mode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . .11
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CBFTF1011-110
Summary of Contents for Transition Networks CBFTF1011-110
- Page 1 100Base-FX fast Ethernet fiber network. Part Number Copper - two (2) ports Duplex Fiber-Optic - one (1) port 10Base-T/100Base-TX 100Base-FX CBFTF1011-110 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* CBFTF1013-110 RJ-45...
-
Page 2: Installation
CBFTF10xx-11x Part Number Copper - two (2) ports Fiber-Optic - one (1) port 10Base-T/100Base-TX Single Fiber CBFTF1029-110 RJ-45 SC, 1310 nm (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles CBFTF1029-111 RJ-45 SC, 1550 nm (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* CBFTF1029-112 RJ-45... - Page 3 CBFTF10xx-11x Installation -- Continued Set the Dip Switches -- Continued NOTE: Dip switch 4 (in the “SW” set) applies to fiber port 1 (F1). 4. Fiber Mode (Fiber Port 1) UP (Full-Duplex) - The cable distances for fiber port 1 (F1) are constrained by the cable requirements (see pages 1 and 2).
-
Page 4: Install The Slide-In-Module
CBFTF10xx-11x Installation - Continued Set the Hardware/Software Jumper The hardware/software jumper is located on the circuit board and is labeled “H” and “S”. Use a pair of needle- nose pliers to set the jumper to the desired location. Hardware The media converter settings are determined by dip switch settings (p. -
Page 5: Operation
CBFTF10xx-11x Operation Status LEDs Use the status LEDs next to the fiber ports to monitor the media converter and the fiber network connections. The “FD” and “LACT” LEDs near the top of the media converter refer to Fiber Port 1 (F1). F(ull) D(uplex) On = Full-duplex connection. -
Page 6: Auto-Negotiation
The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: single mode fiber (recommended): Multimode fiber (recommended): Multimode fiber (optional): CBFTF1011-110 CBFTF1013-110 Fiber Optic Transmitter Power: Fiber Optic Receiver Sensitivity: Link Budget: CBFTF1014-110 Fiber-optic Transmitter Power:... -
Page 7: Copper Cable
CBFTF10xx-11x Cable Specifications -- Continued Copper Cable Category 3: (Minimum requirement for 10 Mb/s operation) Gauge 24 to 22 AWG Attenuation 11.5 dB/100m @ 5-10 MHz Maximum Cable Distance 100 meters Category 5: (Minimum requirement for 100 Mb/s operation) Gauge 24 to 22 AWG Attenuation 22.0 dB /100m @ 100 MHz... -
Page 8: Troubleshooting
CBFTF10xx-11x Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the power LED illuminated? • Is the media converter inserted properly into the chassis? •... - Page 9 Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: CBFTF10xx-11x Series Media Converters Part Number(s): CBFTF1011-110, CBFTF1013-110, CBFTF1014-110, CBFTF1015-110, CBFTF1016-110, CBFTF1017-110, CBFTF1018-110, CBFTF1025-110, CBFTF1029-110, CBFTF1029-111, CBFTF1029-112, CBFTF1029-113 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CBFTF10xx-11x to which this declaration refers is in conformity with the following standards.
