CAUTION: Associated Ethernet wiring must be limited to inside the building.

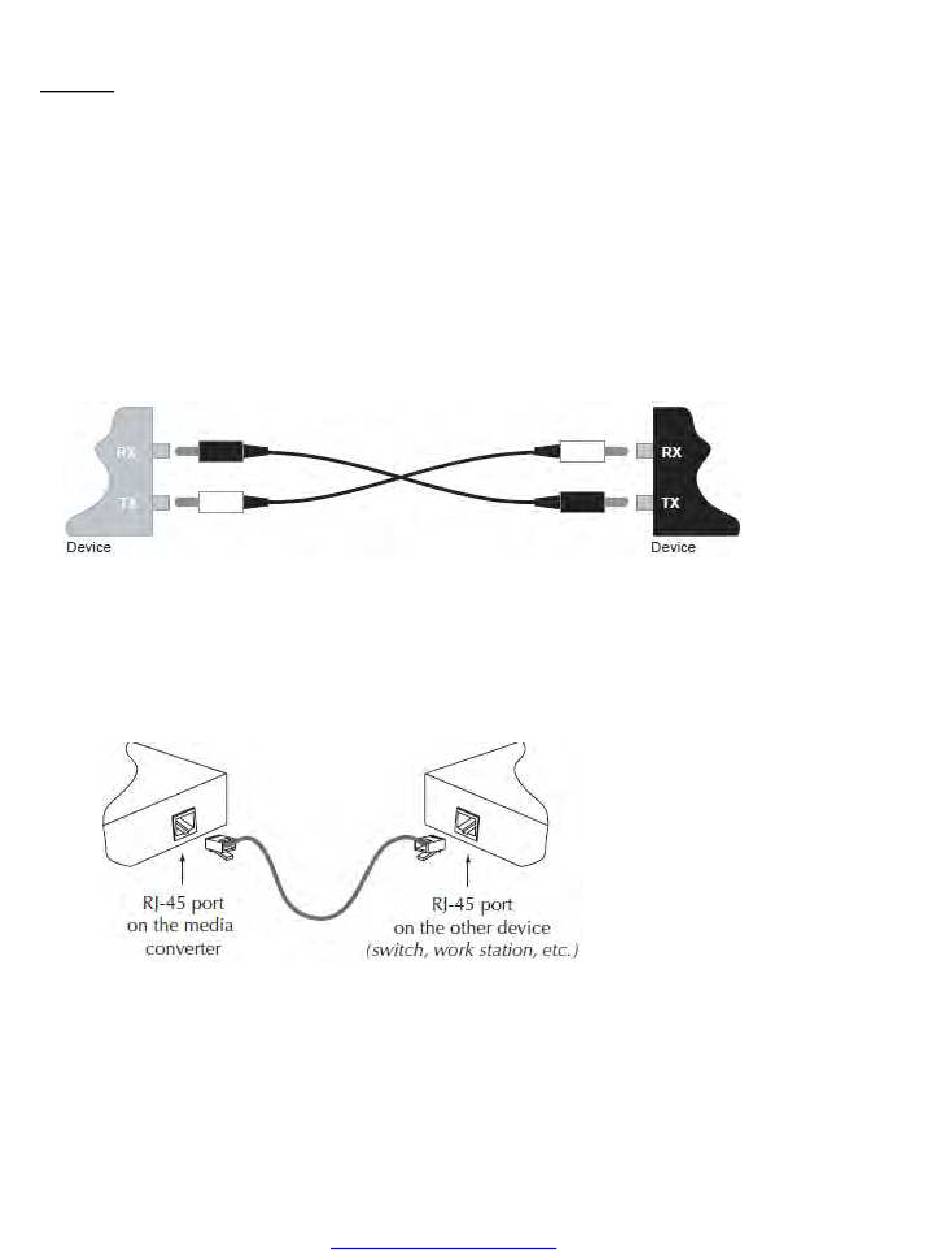

Installing Fiber Cables

1. Locate a 100Base-FX fiber cable with male, two-stranded TX to RX connectors installed at both ends.

2. Connect the fiber cables to the SPOEB10xx-105 media converter as described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter, hub, etc.) as follows:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

1. Locate 100Base-TX copper cables with male, RJ-45 connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other device (wireless

access point, VoIP phone, network camera, etc.).

33618 Rev. C

https://www.transition.com/

SPOEB10xx-105 User Guide

Page 7 of 16
