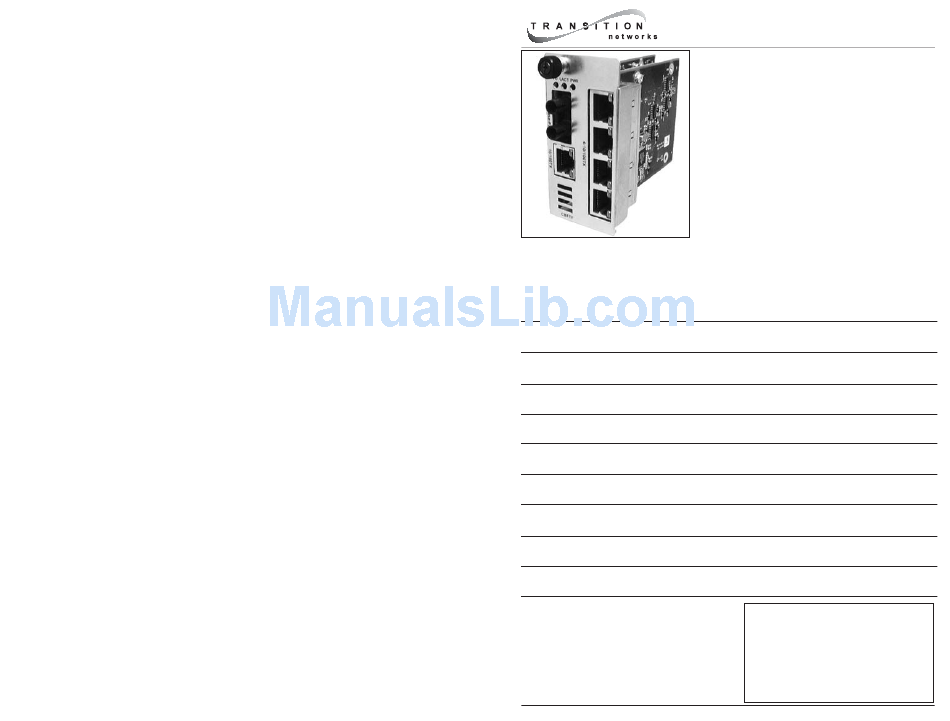

User's Guide
CBFTF10xx-12x
Slide-in-Module Media Converter
• Copper to Fiber
• 10/100 Bridging 6-Port
• (5 copper / 1 fiber)
• 10/100Base-TX to 100Base-FX
The CBFTF10xx-12x 6-port Ethernet/fast Ethernet bridging media converter is
designed to be installed into a Transition Networks PointSystem™ chassis and
allows connection of 10Base-T Ethernet and/or 100Base-TX fast Ethernet twisted-
pair copper network devices to network devices on a 100Base-FX fast Ethernet
fiber network.
Part Number
Copper - five (5) ports
10Base-T/100Base-TX
CBFTF1011-120
RJ-45
100 m (328 ft)*
CBFTF1013-120
RJ-45
100 m (328 ft)*
CBFTF1014-120
RJ-45
100 m (328 ft)*
CBFTF1015-120
RJ-45
(long haul)
100 m (328 ft)*
CBFTF1016-120
RJ-45
(extra long haul)
100 m (328 ft)*
CBFTF1017-120
RJ-45
(long wave length)
100 m (328 ft)*
CBFTF1018-120
RJ-45
100 m (328 ft)*
CBFTF1025-120
RJ-45
100 m (328 ft)*
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network.
Duplex Fiber-Optic - one (1) port
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1310 nm single mode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . .12
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16
Advertisement
Table of Contents
Related Manuals for Transition Networks CBFTF1011-120
Summary of Contents for Transition Networks CBFTF1011-120
- Page 1 100Base-FX fast Ethernet fiber network. Part Number Copper - five (5) ports Duplex Fiber-Optic - one (1) port 10Base-T/100Base-TX 100Base-FX CBFTF1011-120 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* CBFTF1013-120 RJ-45...
-
Page 2: Installation
CBFTF10xx-12x Part Number Copper - four (4) ports Fiber-Optic - two (2) ports 10Base-T/100Base-TX Single Fiber CBFTF1029-120 RJ-45 SC, 1310 nm (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles CBFTF1029-121 RJ-45 SC, 1550 nm (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* CBFTF1029-122 RJ-45... - Page 3 CBFTF10xx-12x Installation -- Continued Set the Dip Switches -- Continued NOTE: Dip switch 4 (in the “SW” set) applies to fiber port 1 (F1). 4. Fiber Mode (Fiber Port 1) UP (Full-Duplex) - The cable distances for fiber port 1 (F1) are constrained by the cable requirements (see pages 1 and 2).
-
Page 4: Install The Slide-In-Module
CBFTF10xx-12x Installation - Continued Set the Hardware/Software Jumper The hardware/software jumper is located on the circuit board and is labeled “H” and “S”. Use a pair of needle- nose pliers to set the jumper to the desired location. Hardware The media converter settings are determined by dip switch settings (p. -
Page 5: Operation
CBFTF10xx-12x Operation Status LEDs Use the status LEDs next to the fiber ports to monitor the media converter and the fiber network connections. LACT PWR The “FD” and “LACT” LEDs near the top of the media converter refer to Fiber Port 1 (F1). F(ull) D(uplex) On = Full-duplex connection. -
Page 6: Auto-Negotiation
The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: single mode fiber (recommended): Multimode fiber (recommended): Multimode fiber (optional): CBFTF1011-120 CBFTF1013-120 Fiber Optic Transmitter Power: Fiber Optic Receiver Sensitivity: Link Budget: CBFTF1014-120 Fiber-optic Transmitter Power:... -
Page 7: Cable Specifications
CBFTF10xx-12x Cable Specifications Copper Cable Category 3: (Minimum requirement for 10 Mb/s operation) Gauge 24 to 22 AWG Attenuation 11.5 dB/100m @ 5-10 MHz Maximum Cable Distance 100 meters Category 5: (Minimum requirement for 100 Mb/s operation) Gauge 24 to 22 AWG Attenuation 22.0 dB /100m @ 100 MHz Maximum Cable Distance... -
Page 8: Troubleshooting
CBFTF10xx-12x Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the power LED illuminated? • Is the media converter inserted properly into the chassis? •... - Page 9 Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: CBFTF10xx-12x Series Media Converters Part Number(s): CBFTF1011-120, CBFTF1013-120, CBFTF1014-120, CBFTF1015-120, CBFTF1016-120, CBFTF1017-120, CBFTF1018-120, CBFTF1025-120, CBFTF1029-120, CBFTF1029-121, CBFTF1029-122, CBFTF1029-123 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CBFTF10xx-12x to which this declaration refers is in conformity with the following standards.
