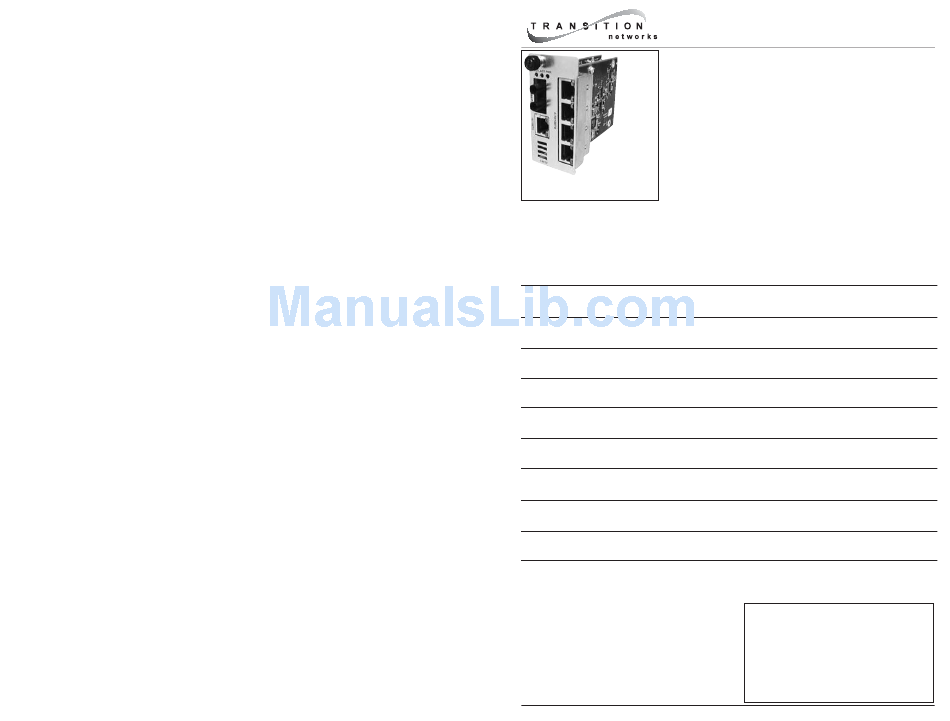

User's Guide
CBFTF10xx-14x
Slide-in-Module Media Converter
• Copper to Fiber
• 10/100 Bridging 6-Port
• (4 copper / 2 fiber)
• 10/100Base-TX to 100Base-FX
The CBFTF10xx-14x 6-port Ethernet/Fast Ethernet bridging media converter is
designed to be installed into a Transition Networks PointSystem™ chassis and
allows connection of 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-
pair copper network devices to network devices on a 100Base-FX Fast Ethernet
fiber network.
Part Number
Copper - four (4) ports
10Base-T/100Base-TX
CBFTF1011-140
RJ-45
100 m (328 ft)*
CBFTF1013-140
RJ-45
100 m (328 ft)*
CBFTF1014-140
RJ-45
100 m (328 ft)*
CBFTF1015-140
RJ-45
(long haul)
100 m (328 ft)*
CBFTF1016-140
RJ-45
(extra long haul)
100 m (328 ft)*
CBFTF1017-140
RJ-45
(long wave length)
100 m (328 ft)*
CBFTF1018-140
RJ-45
100 m (328 ft)*
CBFTF1025-140
RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network.
Duplex Fiber-Optic - two (2) ports
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
SC, 1310 nm single mode
60 km (37.2 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1310 nm single mode
5 km (3.1 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . .12
Technical Specifications . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
Contact Us . . . . . . . . . . . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CBFTF1011-140
Summary of Contents for Transition Networks CBFTF1011-140
- Page 1 100Base-FX Fast Ethernet fiber network. Part Number Copper - four (4) ports Duplex Fiber-Optic - two (2) ports 10Base-T/100Base-TX 100Base-FX CBFTF1011-140 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* CBFTF1013-140 RJ-45...
-
Page 2: Installation
CBFTF10xx-14x Part Number Copper - four (4) ports Fiber-Optic - two (2) ports 10Base-T/100Base-TX Single Fiber CBFTF1029-140 RJ-45 SC, 1310 mn (TX)/1550 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles CBFTF1029-141 RJ-45 SC, 1550 mn (TX)/1310 nm (RX) 100 m (328 ft)* single mode, 20 km (12.4 miles)* CBFTF1029-142 RJ-45... - Page 3 CBFTF10xx-14x Installation -- Continued Set the Dip Switches -- Continued NOTE: Dip switch 4 (in the “SW” set) applies to fiber port 1 (F1). 4. Fiber Mode (Fiber Port 1) UP (Full-Duplex) - The cable distances for fiber port 1 (F1) are constrained by the cable requirements (see pages 1 and 2).
-
Page 4: Connect The Fiber Cable
CBFTF10xx-14x Installation -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the jumpers and when installing the media converter. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Use small, needle-nose pliers or a similar device when setting the jumpers. -
Page 5: Operation
CBFTF10xx-14x Installation -- Continued Power the Slide-in-Module The slide-in-module media converter is powered through the Transition Networks PointSystem™ chassis. Operation Status LEDs Use the status LEDs next to the fiber ports to monitor the media converter and the fiber network connections. The “FD”... -
Page 6: Auto-Negotiation
CBFTF10xx-14x Operation -- Continued Product Features -- Continued Distance Extension The CBFTF10xx-14x 6-point bridging media converter segments up to four (4) 10Base-T copper Ethernet and/or 100Base-TX copper Fast Ethernet and up to two (2) 100Base-FX fiber Fast Ethernet collision domains. In a half-duplex Ethernet or Fast Ethernet environment, the CBFTF10xx-14x media converter extends network distances by segmenting collision domains so that the 512-Bit Rule applies separately to each collision domain (see page... -
Page 7: Cable Specifications
<10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm CBFTF1011-140 1300 nm multimode CBFTF1013-140 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB... -
Page 8: Troubleshooting
CBFTF10xx-14x Troubleshooting If the media converter fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the power LED on the media converter illuminated? • Is the media converter slide-in-module installed properly in the chassis? •... - Page 9 Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: CBFTF10xx-14x Series Media Converters Part Number(s): CBFTF1011-140, CBFTF1013-140, CBFTF1014-140, CBFTF1015-140, CBFTF1016-140, CBFTF1017-140, CBFTF1018-140, CBFTF1025-140, CBFTF1029-140, CBFTF1029-141, CBFTF1029-142, CBFTF1029-143 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CBFTF10xx-14x to which this declaration refers is in conformity with the following standards.
