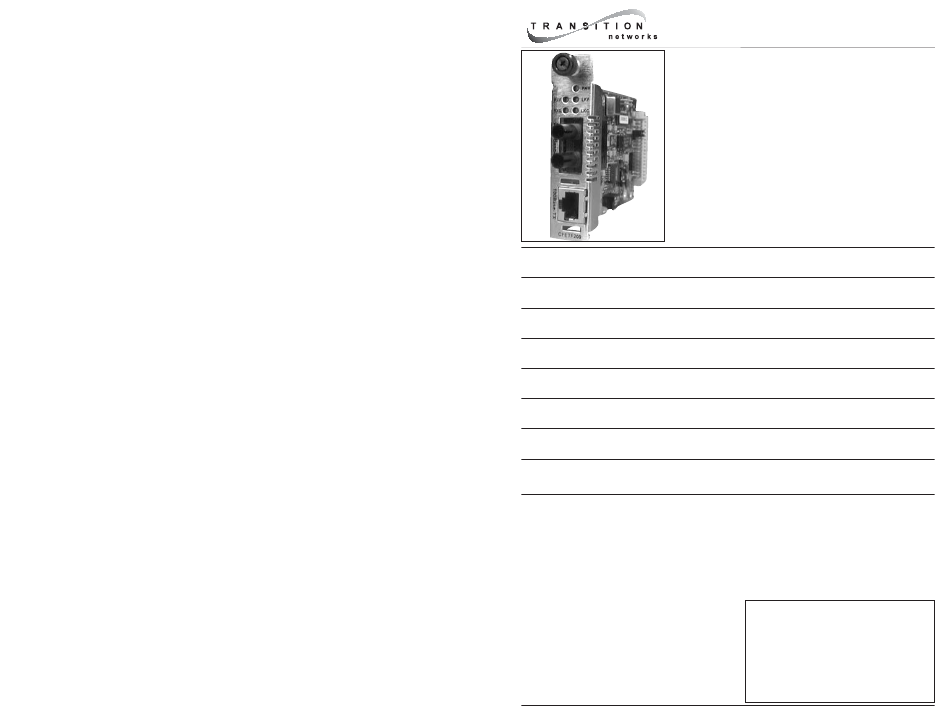

USER'S GUIDE
CFETF10xx-205
Slide-in-Module Media Converter
• Fast Ethernet™
• Copper to Fiber
• 100Base-TX to 100Base-FX

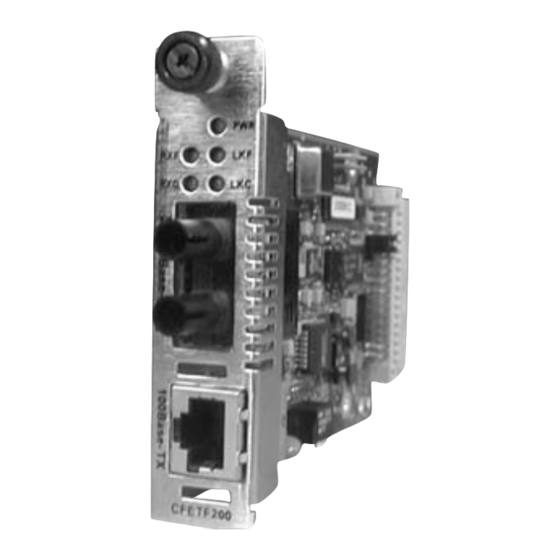

Transition Networks CFETF10xx-205 series Fast
Ethernet™ 100Base-TX to 100Base-FX Media
Converters (designed to be installed in a
PointSystem™ chassis) connect 100Base-TX twisted-
pair copper cable to multimode or singlemode
100Base-FX fiber-optic cable.
Part Number
Port One - Copper
100Base-TX
CFETF1011-205 RJ-45
100 m (328 ft)*
CFETF1013-205 RJ-45
100 m (328 ft)*
CFETF1014-205 RJ-45
100 m (328 ft)*
CFETF1015-205 RJ-45
100 m (328 ft)*
CFETF1016-205 RJ-45
100 m (328 ft)*
CFETF1017-205 RJ-45
100 m (328 ft)*
CFETF1018-205 RJ-45
100 m (328 ft)*
* Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network installation.)
Port Two - Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm singlemode
20 km (12.4 miles)*
SC, 1300 nm singlemode
40 km (24.9 miles)*
SC, 1310 nm singlemode
60 km (32.3 miles)*
SC, 1550 nm singlemode
80 km (49.7 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Fault Isolation and Correction . .10
Contact Us . . . . . . . . . . . . . . . . .11
Advertisement
Table of Contents
Related Manuals for Transition Networks CFETF10 Series
Summary of Contents for Transition Networks CFETF10 Series
- Page 1 Slide-in-Module Media Converter • Fast Ethernet™ • Copper to Fiber • 100Base-TX to 100Base-FX Transition Networks CFETF10xx-205 series Fast Ethernet™ 100Base-TX to 100Base-FX Media Converters (designed to be installed in a PointSystem™ chassis) connect 100Base-TX twisted- pair copper cable to multimode or singlemode 100Base-FX fiber-optic cable.
- Page 2 CFETF10xx-205 INSTALLATION INSTALLATION -- Continued CAUTION: Wear a grounding device and observe electrostatic discharge Set the AutoCross™ Jumper precautions when setting the 4-position switch and the jumpers and when The AutoCross™ jumper is located on the Media Converter circuit board and installing the Slide-in-Module Media Converter.
- Page 3 Power the Media Converter For more information on the 512-Bit Rule, see the white paper titled “Collision The Slide-in-Module Media Converter is powered throught the Transition Domains” on the Transition Networks website at: Networks PointSystem™ chassis. http://www.transition.com/learning/whitepapers/colldom_wp.htm Tech Support: 1-800-260-1312 Int’l: 00-1-952-941-7600 7am-6pm CST (GMT-6:00)
-
Page 4: Cable Specifications
SNMP When the Pause Control Frame feature is activated (see page 2), it allows one See the on-line documentation that comes with Transition Networks end of the link to signal the other to discontinue frame transmission for a set FocalPoint™ software for applicable commands and usage. -
Page 5: Technical Specifications
Link Budget: 16.0 dB depends on the physical characteristics and the installation configuration of the CFETF1015-205 1300 nM singlemode Transition Networks PointSystem™ chassis in which this Slide-In-Module will be Fiber-optic Transmitter Power: min: -8.0 dBm max: -2.0 dBm installed. Fiber-optic Receiver Sensitivity: min: -34.0 dBm... -
Page 6: Fault Isolation And Recovery
Is the Media Converter Slide-in-Module installed properly in the Transition NOW chassis? Chat live via the Web with Transition Networks Technical Support. • Is the power cord properly installed in the chassis and at the external Log onto www.transition.com and click the Transition Now link. -
Page 7: Compliance Information
All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2003 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
