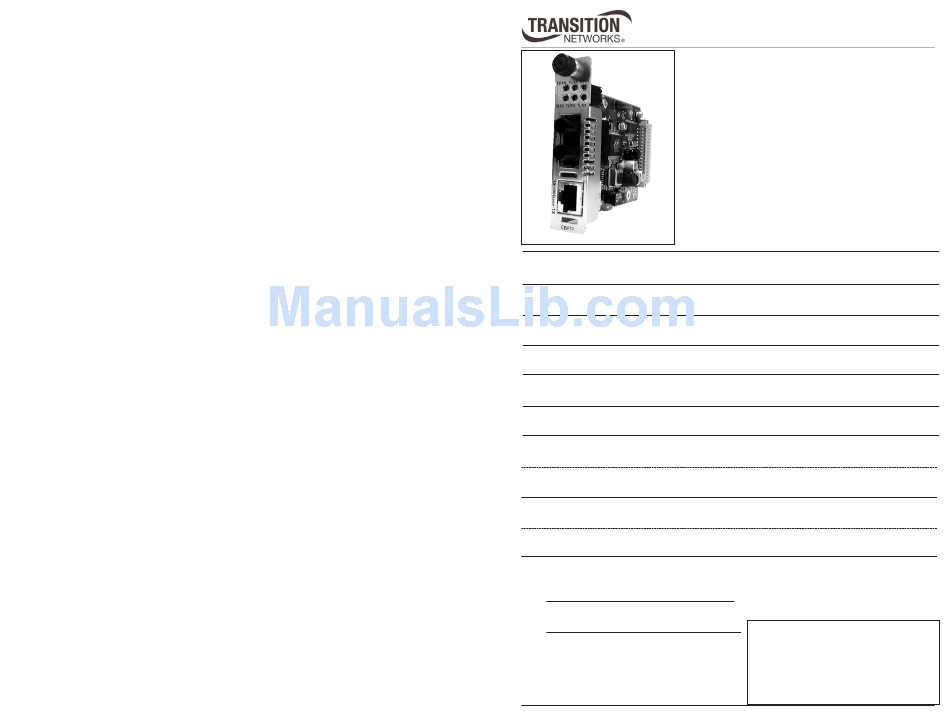

User's Guide
CBFTF10xx-15x
Slide-in-Module Media Converter
•
•
•
The CBFTF10xx-15x 2-port Ethernet/Fast Ethernet
bridging media converter is designed to be installed in
a Transition Networks PointSystem™ chassis and
connects 10Base-T Ethernet or 100Base-TX Fast
Ethernet twisted-pair copper network devices to
network devices on a 100Base-FX Fast Ethernet fiber
network.
Port One - Copper
Part Number
10Base-T/100Base-TX
CBFTF1011-155
RJ-45
100 m (328 ft)*
CBFTF1013-155
RJ-45
100 m (328 ft)*
CBFTF1014-155
RJ-45
100 m (328 ft)*
CBFTF1015-155
RJ-45
100 m (328 ft)*
CBFTF1018-155
RJ-45
100 m (328 ft)*
RJ-45
CBFTF1029-155**
100 m (328 ft)*
RJ-45
CBFTF1029-156**
100 m (328 ft)*
CBFTF1029-157*** RJ-45
100 m (328 ft)*
CBFTF1029-158*** RJ-45
100 m (328 ft)*
*
Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network. (TX) = transmit (RX) = receive
** CBFTF1029-155 and CBFTF1029-156 are intended to be installed in the same
network where one is the local converter and the other is the remote converter.
*** CBFTF1029-157 and CBFTF1029-158
are intended to be installed in the same
network where one is the local converter
and the other is the remote converter.
Copper to Fiber
10/100 Bridging (2-Port)
10Base-T/100Base-TX to 100Base-FX
Port Two - Duplex Fiber-Optic
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.8 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
single mode, 20 km (12.4 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
single mode, 20 km (12.4 miles)*
SC, 1310 mn (TX)/1550 nm (RX)
single mode, 40 km (24.8 miles)*
SC, 1550 mn (TX)/1310 nm (RX)
single mode, 40 km (24.8 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .8
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBFTF1011-155 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CBFTF1011-155

Summary of Contents for Transition Networks CBFTF1011-155

  • Page 1 100Base-FX Fast Ethernet fiber network. Port One - Copper Port Two - Duplex Fiber-Optic Part Number 10Base-T/100Base-TX 100Base-FX CBFTF1011-155 RJ-45 ST, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)* CBFTF1013-155 RJ-45 SC, 1300 nm multimode 100 m (328 ft)* 2 km (1.2 miles)*...

  • Page 2: Installation

    CBFTF10xx-15x Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position switch, removing and inserting circuit board jumper(s), and installing the slide-in-module. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the 4-Position Switch •...

  • Page 3: Install The Twisted-Pair Copper Cable

    CBFTF10xx-15x Installation -- Continued Install the Twisted-Pair Copper Cable Locate or build IEEE 803.2 compliant 10Base-T or 100Base-TX cables, ™ with straight-through RJ-45 cable, and with straight-through RJ-45 connectors installed at both ends. Connect the RJ-45 connector at one end of the cable to the RJ-45 port connector on the media converter.

  • Page 4: Auto-Negotiation

    CBFTF10xx-15x Operation - Continued Product Features AutoCross™ The AutoCross feature detects and configures the twisted-pair copper port on the CBFTF10xx-15x media converter to the correct straight-through (MDI) or crossover (MDI-X) configuration. This feature allows either MDI or MDI-X cable to connect the media converter to devices such as hubs, transceivers, or network interface cards (NICs).

  • Page 5: Cable Specifications

    <10-9 Single mode fiber (recommended): 9 μm Multimode fiber (recommended): 62.5/125 μm Multimode fiber (optional): 100/140, 85/140, 50/125 μm CBFTF1011-155, CBFTF1013-155 multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...

  • Page 6: Troubleshooting

    Transition Networks 6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: CBFTF10xx-15x Series Media Converters Part Number(s): CBFTF1011-155, CBFTF1013-155, CBFTF1014-155, CBFTF1015-155, CBFTF1018-155, CBFTF1029-155, CBFTF1029-156, CBFTF1029-157, CBFTF1029-158 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CBFTF10xx-15x to which this declaration refers is in conformity with the following standards.

  • Page 7: Compliance Information

    Compliance Information CISPR22/EN55022 Class A CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
